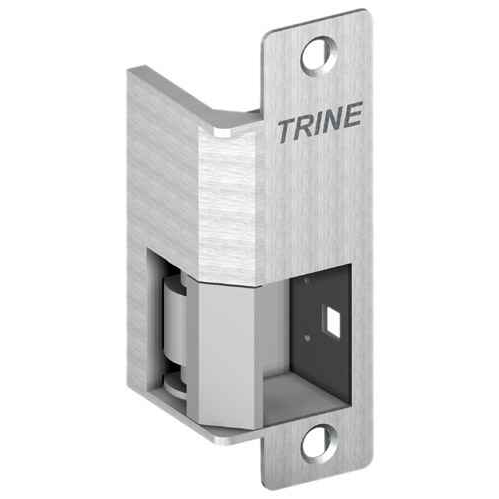

Trine Electric Strike, Fire Rated, 12VDC, Field Selectable FS or FSE, 4-7/8in x 1-1/4in Faceplate, up to 7/8in Throw, Indoor/Outdoor, Cavity Centerline Offset 1"

Trine Electric Strike, Fire Rated, 12VDC, Field Selectable FS or FSE, 4-7/8in x 1-1/4in Faceplate, up to 7/8in Throw, Indoor/Outdoor, Cavity Centerline Offset 1"

(No reviews yet) Write a Review

Model: EN43012DC32DRH
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$492.00
$317.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trine Electric Strike, Fire Rated, 12VDC, Field Selectable FS or FSE, 4-7/8in x 1-1/4in Faceplate, up to 7/8in Throw, Indoor/Outdoor, Cavity Centerline Offset 1"

We include the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.

Features:

  • 1/4" Horizontal Adjustment -- The 4300 has a great 1/4" horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
  • Four popular faceplates included -- including the 4 most used faceplates for cylindrical locks and deadlatches
  • 1-1/16" Shallow backset -- the electric strike solves depth problems, as with glass store fronts.
  • Low Current Draw -- .240 Amp at 12DC makes it very PoE friendly 12 & 24DC: 12 through 24 AC. All the low voltage and amperage flexibility you need
  • The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
  • The 4300 electric strike latch solves the axillary latch pin problems many other electric strikes run into.
  • Cutout specification A115.1 (with slight jamb modification)



Standards:

  • WH recognized for UL1034 burglary resistant
  • WH recognized for UL294 (6th edition) listed
  • ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" fits
  • Grade 1 electric strike



4300 Electrical Characteristics:

  • Volts: 12DC
    • Current: 0.240 A
    • Ohms (Ω): 50
    • Duty: Into./Cont.
    • Sound: Silent
    • Wire: Blue/Red
  • Volts: 24DC
    • Current: 0.114 A
    • Ohms (Ω): 210
    • Duty: Into./Cont.
    • Sound: Silent
    • Wire: Brown/Red
  • Volts: 12AC
    • Current: 0.210 A
    • Ohms (Ω): 50
    • Duty: Into.
    • Sound: Buzz
    • Wire: Blue/Red
  • Volts: 16AC
    • Current: 0.280 A
    • Ohms (Ω): 50
    • Duty: Into.
    • Sound: Buzz
    • Wire: Blue/Red
  • Volts: 24AC
    • Current: 0.420 A
    • Ohms (Ω): 50
    • Duty: Into.
    • Sound: Buzz
    • Wire: Blue/Red

Finishes:

  • 32D/630 - Satin stainless steel
  • ALUM - Aluminum powder coat
  • BLK - Black powder coat
  • DKBZ - Dark bronze Powder coat

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise or Cylindrical
Outdoor Rated:
No
Product Voltage:
8-16VAC
Fire Rating:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine EN43012DC32DRH – Frequently Asked Questions

1) Will the Trine 4300 electric strike fit an aluminum storefront jamb?
Yes, and the shallow depth is the reason. The 4300 has a 1-1/16 inch backset, which is what solves the depth problem you run into on glass storefront frames. It also carries 1/4 inch of horizontal adjustment built in, so you can line the keeper up with the latch without shimming the frame. Four of the most used faceplates for cylindrical locks and deadlatches ship with it, and a trim skirt is included to cover gaps or an irregular cutout.
2) Can the Trine 4300 strike be set fail safe or fail secure in the field?
Yes. The 4300 is field selectable between FS (fail secure) and FSE (fail safe), so one part covers both jobs. Fail secure keeps the door locked when power drops and is the usual choice on a perimeter or storefront opening; fail safe releases the keeper on power loss and is what you use where the strike has to unlock on a fire alarm or power failure. Make the selection at install, not at order time.
3) Does the Trine 4300 electric strike fit a standard ANSI 4-7/8 inch strike prep?
It fits a 4-7/8 by 1-1/4 inch ANSI A156.5-1992 prep, and the cutout follows A115.1 with slight jamb modification. The cavity centerline is offset 1 inch, so check that against your existing cutout before you commit to a drop-in swap.
4) What kind of lock does the Trine 4300 strike work with, and how big a latchbolt will it take?
It is made for mortise or cylindrical locks and deadlatches, and handles throws up to 7/8 inch. The strike latch design also gets around the auxiliary latch pin problems that trip up a lot of other electric strikes on deadlatch hardware.
5) How much current does the Trine 4300 draw, and will it run off PoE?
At 12VDC it pulls 0.240 A across 50 ohms, which is low enough to be PoE friendly on typical access control power. It also runs 24VDC at 0.114 A (210 ohms), and on AC it will take 12V at 0.210 A, 16V at 0.280 A, or 24V at 0.420 A. On DC the duty is intermittent or continuous and operation is silent; on AC it is intermittent duty and buzzes, which is what you want if you need an audible release.
6) What other fire rated Grade 1 electric strikes could I use instead of the Trine 4300?
Close alternatives in the same class: the Von Duprin 4211 in 32D is a Grade 1 heavy duty fire rated strike for cylindrical locks with 12/24VDC field-selectable voltage, and the Von Duprin 6400 in 32D is a Grade 1 modular fire rated strike for mortise or cylindrical locks, fail secure only. The Hager 2930 is fire rated Grade 1 for cylindrical and mortise locks with dual 12/24VDC and field reversible fail safe/secure, which is the closest match to the 4300's field selectable function. The Camden CX-ED1689L-4 is fire rated and also ships with four faceplates if the multiple-plate approach is what you are after.
7) Can I use the Trine 4300 on an exterior gate, and if not what should I order?
The Trine 4300 is not outdoor rated, so for a gate or fully exposed opening choose a strike built for it: the Camden CX-ED1959 Series is an outdoor rated electric gate strike. Note the CX-ED1959 is not fire rated, so it belongs on exterior gates rather than on a rated fire door assembly.
8) The Trine 4300 has no latch monitoring - what strike should I use if I need door status back at the panel?
Pick a strike with a built-in sensing switch. The Dortronics 3300 Series includes a latch bolt sensing switch and uses a 4-7/8in x 1-1/4in ANSI prep strike plate, the same faceplate size as the Trine 4300. The Camden CX-ED1799L-8 is a dual monitor Grade 1 fire rated strike, and the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor.
9) Which of the Adams Rite strikes is a real substitute for the Trine 4300 on an aluminum storefront jamb?
The Adams Rite 7100 Series is the closest on frame fit - it is made for aluminum jambs with a flat 1-1/4in x 4-7/8in faceplate, matching the Trine 4300 faceplate footprint, and the 7160 uses the same 1-1/4in x 4-7/8in faceplate. Both the 7100 and 7160 are not fire rated, so they are not a swap where the Trine 4300 was specified for a rated opening; among Adams Rite the fire rated option is the 7240, which is built for cylindrical locksets with a 5/8in latchbolt projection.
10) My opening has a rim exit device or surface vertical rods - will the Trine 4300 work?
The Trine 4300 is set up for mortise or cylindrical locks, so an exit device opening needs a different body. For surface vertical rods use the HES Folger Adam 310-4-2 complete electric strike pac; for a rim exit device the Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor, and the SDC 30-4 Series is a rim mount strike for a 3/4in Pullman latchbolt in stainless steel.
11) Which wires do I land on the Trine 4300 at 12VDC versus 24VDC?
At 12VDC and on any of the AC inputs, the leads are blue and red. At 24VDC they are brown and red. Watch that when you pull the strike out of the box, because the wire pair tells you which coil configuration you are looking at.
12) I need a strike for an aluminum jamb but fire rating is not required. Is the Trine 4300 overkill?
If the opening is not fire rated, a simpler aluminum jamb strike will do. The Adams Rite 7100 Series and 7160 both use the same 1-1/4 by 4-7/8 inch faceplate for aluminum jambs and are not fire rated; the Adams Rite 7170 is the equivalent for hollow metal and wood jambs. The 4300 is worth it when you need the fire rating, Grade 1 performance, and the field selectable fail safe/fail secure choice on the same part.
13) I need a strike with multiple faceplates included like the Trine 4300 - what else ships that way?
The Trine 4300 includes the four most used faceplates for cylindrical locks and deadlatches. The Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with 4 faceplates, and the Camden CX-ED1799L-8 is a fire rated Grade 1 dual monitor strike supplied with 8 faceplates if you also need latch monitoring.
14) What is a simpler, lower-spec alternative to the Trine 4300 for a non-rated interior door?
If the opening carries no fire rating, the SDC 15 Series is a value strike for a 5/8in latchbolt with 12/24 VDC operation, and the SDC 25 Series is a value strike for a 1/2in latchbolt. The RCI 15BS is an economy fail-secure strike for a special offset latch entry. All three drop the fire rating that the Trine 4300 carries, and the RCI 15BS is fixed fail-secure rather than field selectable FS/FSE.
15) For a mortise lock opening, is the Trine 4300 the right pick or is there a strike made specifically for mortise?
The Trine 4300 covers mortise or cylindrical locks. If you want a body designed around mortise hardware, the Securitron MUNL Mortise UnLatch is a Grade 1 fire rated mortise strike, and the Von Duprin 6210 is a Grade 1 heavy duty mortise lock strike that is 24 VDC fail-secure and UL 10C fire rated - note the 6210 is fail-secure only, where the Trine 4300 is field selectable between fail safe and fail secure.
16) What should I use instead of the Trine 4300 if I want to avoid cutting the frame?
The Trine 4300 follows the A115.1 cutout with slight jamb modification, so it still expects a prepped jamb. Where no cutting is wanted, the Locknetics NC450 is a no cut electric strike. The Camden CX-ED1689L-4 is a fire rated low profile universal strike if the limit is depth rather than cutting.
17) Is the HES 1500 or 1600 a substitute for the Trine 4300?
No. The HES 1500 and HES 1600 items are electric strike accessories for those Grade 1 fire rated series, not complete strike bodies, so neither replaces the Trine 4300 on an opening. If you want an HES strike body, the Folger Adam 310-1(X) is a Grade 1 fire rated strike body sized for 1/2in, 5/8in or 3/4in throw latchbolts.
18) I have a pair of doors - can I standardize on the Trine 4300 for both leaves?
The Trine 4300 is a single strike for a mortise or cylindrical lock opening. For a double door application, the Rockwood electric strike for double doors uses a 3/4 keeper and is a Grade 1 fire rated 310-1 Series unit, which suits the inactive leaf condition a single-door strike does not address.
19) Which alternatives to the Trine 4300 are rated heavy duty for a high traffic opening?
Several peers are classed heavy duty: the Alarm Controls AES-100 is a Grade 1 heavy duty strike, the Von Duprin 4211 32D is Grade 1 heavy duty and fire rated, the Von Duprin 6400 32D is a Grade 1 heavy duty modular strike for mortise or cylindrical locks with a 3-hour UL 10C fail-secure rating, and the Locknetics MDS100 and MS100 in US32D are both heavy duty. The Trine 4300 is itself a Grade 1 strike and carries UL1034 burglary resistant and UL294 6th edition recognition.
20) What is a fire rated alternative to the Trine 4300 with a radius corner faceplate?
The SDC 45F Series is a fire-rated electric strike for a 5/8in latchbolt with a radius corner faceplate, which suits frames prepped with radius corners. The Trine 4300 ships with four faceplates for cylindrical locks and deadlatches and fits the ANSI A156.5 4-7/8in x 1-1/4in prep.
21) What finish does the Trine 4300 strike come in, and will the trim skirt match?
The strike is offered in 630/32D satin stainless steel, aluminum powder coat, black powder coat, and dark bronze powder coat. The included trim skirt is finished to match the strike, so you are not fighting a two-tone look where it covers an oversized or rough cutout.
