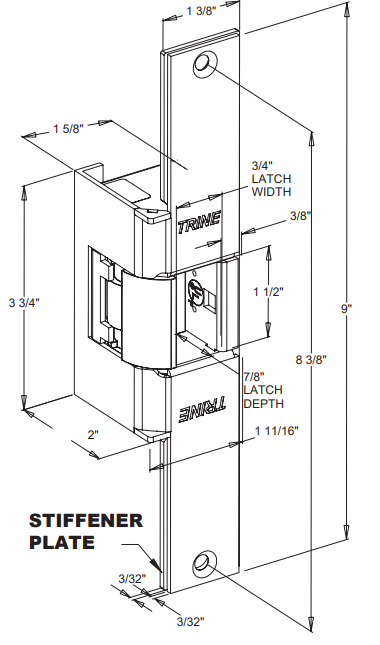

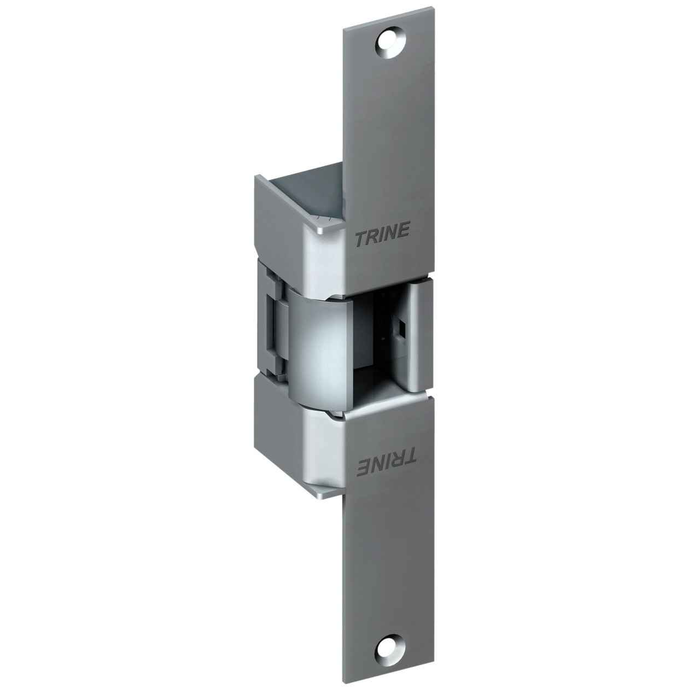

Trine EN960 Series - Fire Rated Indoor/Outdoor Electric Strikes Fits 310-2 3/4” Cutout, 9" x 1 3/8"

Trine EN960 Series - Fire Rated Indoor/Outdoor Electric Strikes Fits 310-2 3/4” Cutout, 9" x 1 3/8"

(No reviews yet) Write a Review

Model: EN960-24AC-32D-RH
$748.41
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$748.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

EN960 - FITS 310-2 3/4” CUTOUT

The original UL® Indoor/Outdoor and Fire Rated Electric Strike.

For new or replacement installations in metal or wood jambs. Use with mortise exit devices, mortise locks without deadbolts and cylindrical locksets with up to 7/8” throw. Based on 1/8” door gap.

EN960 Features:

  • Superior Strength -- 2,000+ lbs UL® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Left and Right handing is field reversible.
  • Your go anywhere strike!

EN960 Specifications:

  • UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
  • UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • UL294 (6th Edition) listed
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E

EN Series Electrical Characteristicss:   PoE Freindly

Volts Current Ohms (Ω) Duty Sound Wire
12AC 0.700 4.5 Intm. Buzz 1-Blue,
1-Orange/White
24AC 0.370 18.0 Intm. Buzz 1-Blue,
1-Black/White
12DC 0.280 43.0 Intm./Cont. Silent 2-Orange/White
24DC 0.150 164.0 Intm./Cont. Silent 2-Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
EN960
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
Yes
Lock Type:
Exit Device
Face Plate:
9"
Fire Rating:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine EN960-24AC-32D-RH – Frequently Asked Questions

1) What kinds of locks does the Trine EN960 strike work with?
Mortise exit devices, mortise locks without deadbolts, and cylindrical locksets with up to 7/8 inch latch throw. It is sized on a 1/8 inch door gap. A mortise lock with a deadbolt will not work, because the strike only releases the latch.
2) Can I use an electric strike on an exterior door or a gate?
The EN960 is one of the few strikes rated for it. It carries UL 1034 Indoor/Outdoor Burglary Resistant listing, which is what makes it usable on gates and exposed exterior openings where a standard indoor strike would fail. Trine lists it as outdoor rated.
3) Is the Trine EN960 approved for a fire rated door assembly?
Yes. UL 10C listed, Class A, 3 hour, single swing door. It is also BHMA A156.31 2001 Grade 1 and holds NYC MEA 79-01-E approval. Note the 3 hour rating is stated for a single swing door, not a pair.
4) Do I have to order the Trine EN960 fail safe or fail secure, or can I change it in the field?
On DC units, fail safe and fail secure are field reversible, so the same strike can be flipped on site. Ordering is still done by fail safe or fail secure, and by voltage: 12VAC, 12VDC, 24VAC or 24VDC. If you want the field reversible behavior, spec a DC unit. AC units also buzz when energized; DC runs silent.
5) Can the EN960 go into a wood jamb, or is it hollow metal only?
Both. Trine lists the EN960 for new or replacement installations in metal or wood jambs. If your opening is an aluminum storefront jamb instead, this is the wrong body, look at an Adams Rite 7100 or 7170 series strike sized 1-1/4 by 4-7/8 inches for that application.
6) What is the closest equivalent to the Trine EN960 for a 310-2 style 9 inch by 1-3/8 inch jamb cutout?
The Trine EN960 is built to drop into the Folger Adam 310-2 cutout with a 9 inch faceplate, so the nearest family is the HES Folger Adam 310 line itself - the 310-1(X) electric strike body is a Grade 1, fire rated 310 Series unit for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts. The Rockwood ESK-DBL is also a 310-1 Series Grade 1 fire rated strike, built for double doors with a 3/4 inch keeper. The EN960 itself accepts mortise exit devices, mortise locks without deadbolts and cylindrical locksets up to 7/8 inch throw on a 1/8 inch door gap.
7) I need an electric strike for an exterior gate - is the Trine EN960 the right choice or is there another outdoor option?
The Trine EN960 is outdoor rated and UL 1034 listed indoor/outdoor burglary resistant, which is why it is often specified for gates. If you want a purpose-built gate strike instead, the Camden CX-ED1959 Series is an outdoor rated electric gate strike, though it is not fire rated. The EN960 carries UL 10C fire rating for a Class A 3-hour single swing door in addition to the outdoor listing, so it is the one to use when the opening is both exterior and rated.
8) What looks like a substitute for the Trine EN960 but will not work on a fire rated opening?
Several strikes share the general electric strike form but are not fire rated: the RCI 15BS economy strike for special offset latch entry is fail-secure only and not fire rated, the Adams Rite 7100, 7160 and 7170 are not fire rated, and the HES Folger Adam 310-4-2 pac for surface vertical rods is Grade 1 but not fire rated. The Trine EN960 is UL 10C listed for a Class A 3-hour single swing door, so on a labeled opening none of those are a swap for it.
9) Does handing matter when ordering the Trine EN960 strike?
It is ordered left hand or right hand, but handing is field reversible, so a unit on the shelf can be converted rather than returned. Useful if you stock strikes for a mixed building.
10) How much current does the Trine EN960 draw, and can it run continuous duty?
12VDC draws 0.280A at 43 ohms and 24VDC draws 0.150A at 164 ohms, both rated intermittent or continuous duty. The AC versions, 12VAC at 0.700A and 24VAC at 0.370A, are intermittent duty only. Size your power supply off the DC figures if the strike will be held energized, as on a fail safe application.
11) Will the EN960 hold up on a high traffic entrance?
It is UL tested at 2,000+ lbs static strength and rated for 1,000,000+ cycles, with a one piece locking mechanism driven by a single solenoid. That cycle count is the reason it gets specified on main entries and multi-family lobby doors rather than an economy strike.
12) What are the alternatives to the Trine EN960 if I need latchbolt monitoring?
The EN960 does not offer a monitoring option. For monitored openings, the Dortronics 3300 Series includes a latch bolt sensing switch on a 4-7/8 by 1-1/4 inch ANSI prep plate, the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor, and the Camden CX-ED1799L-8 is a Grade 1 fire rated dual monitor strike shipped with eight faceplates. Those are different frame preps, so confirm the cutout before switching.
13) What is a comparable Grade 1 fire rated electric strike if the EN960 does not suit the opening?
Within the same Grade 1 fire rated class, the Von Duprin 6400 is a modular strike for mortise or cylindrical locks with a 3 hour UL 10C rating in fail secure, the Von Duprin 4211 is for cylindrical locks with 12/24VDC field selectable operation, and the Securitron MUNL is a mortise unlatch strike. What the EN960 adds over all of them is the UL 1034 outdoor rating, so for an exposed or gate opening it stays the choice.
14) I want a Grade 1 fire rated strike with latchbolt monitoring - does the Trine EN960 do that or should I look elsewhere?
The Trine EN960 is a BHMA A156.31 Grade 1 fire rated strike with a one-piece locking mechanism and a single solenoid, and its options cover voltage, handing and fail-safe or fail-secure. For openings where you need the strike to report latch status back to the access control panel, the Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with eight faceplates.
15) Is there a simpler strike than the Trine EN960 for an interior cylindrical lockset on a 5/8 inch latch?
The Trine EN960 covers mortise exit devices, mortise locks without deadbolts and cylindrical locksets up to 7/8 inch throw, and carries both the fire and indoor/outdoor listings. For a plain interior cylindrical opening on a 5/8 inch latch, the SDC 15 Series is a value 5/8 inch latchbolt strike with 12/24 VDC operation, the SDC 45F is a fire rated 5/8 inch latchbolt strike with a radius corner faceplate, and the Adams Rite 7240 is a fire rated strike for cylindrical locksets with 5/8 inch latchbolt projection.
16) How does the Trine EN960 compare with the Von Duprin 6210 and 6400 for a mortise lock opening?
All three are Grade 1 fire rated strikes for mortise applications. The Trine EN960 fits the 310-2 cutout with a 9 inch faceplate, is offered in 12VAC, 24VAC, 12VDC and 24VDC, and is field reversible for handing and for fail-safe/fail-secure on DC units. The Von Duprin 6210 is a heavy duty mortise lock strike at 24 VDC fail-secure with UL 10C fire rating. The Von Duprin 6400 is a heavy duty modular Grade 1 strike for mortise or cylindrical locks, fail-secure, with 3-hour UL 10C rating in satin stainless steel.
17) What are my options if I need a strike in satin brass or bronze rather than stainless?
The Trine EN960 is offered in US3 bright brass, US4 satin brass, US10 satin bronze, US10B dark bronze, US32 polished stainless and US32D satin stainless, which is the widest finish spread among these strikes. Several of the alternatives are stainless only as catalogued - the Locknetics MDS100, MS100 and CS450 are US32D, and the Von Duprin 6400 and 4211 are 32D satin stainless. If the opening needs to match brass or bronze trim, the EN960 covers it directly.
18) Which strikes besides the Trine EN960 offer field reversible fail safe and fail secure?
The Trine EN960 is field reversible for fail-safe and fail-secure on DC units and is also field reversible for left and right handing. Among the alternatives, the Hager 2925 with a 5/8 inch latch, the Hager 2928, and the Hager 2930 - a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage - all list field reversible fail safe/fail secure operation. The EN960 adds the UL 1034 indoor/outdoor burglary resistant listing on top of that flexibility.
19) Are there other heavy duty Grade 1 strikes comparable to the Trine EN960 for high traffic openings?
The Trine EN960 is a Grade 1 strike rated at 2,000+ lbs UL tested with 1,000,000+ life cycles. Comparable heavy duty Grade 1 units include the Alarm Controls AES-100 and the Von Duprin 4211, a heavy duty Grade 1 fire rated strike for cylindrical locks with 12/24 VDC field-selectable voltage. The Securitron MUNL mortise UnLatch strike is also Grade 1 and fire rated. Where the opening is exterior, the EN960 is the one of these carrying the outdoor rating.
20) What finishes does the Trine EN960 electric strike come in?
Six: US3 bright brass, US4 satin brass, US10 satin bronze, US10B dark bronze, US32 polished stainless and US32D satin stainless. For exterior gates and entries, the stainless finishes are the usual pick to match existing commercial hardware.
