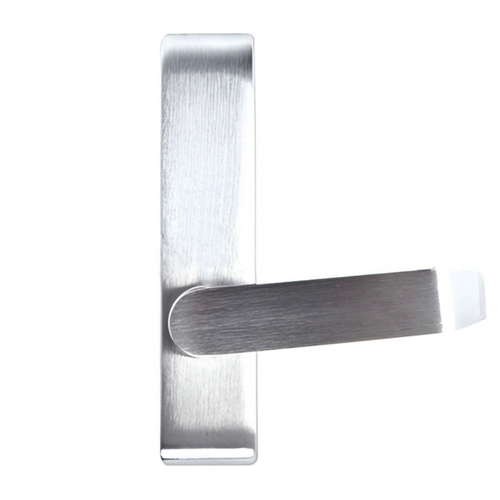

Von Duprin 360L-BE Lever Blank Escutcheon Exit Device Trim for 33A/35A Series - Passage Function
Model: VON-360L-BE
Von Duprin 360L-BE Lever Blank Escutcheon Exit Device Trim for 33A/35A Series - Passage Function360 Series Modular Control Trim for Commercial Exit DevicesThe Von Duprin 360L-BE is a Lever Blank...
Von Duprin
Starting at
$909.00
$850.21
Von Duprin 360L-DT Lever Dummy Trim for 33A/35A Series Exit Devices
Model: VON-360L-DT
Von Duprin 360L-DT Lever Dummy Trim for 33A/35A Series Exit Devices360 Series Modular Control Trim for Commercial Exit Device ApplicationsThe Von Duprin 360L-DT is a heavy-duty lever dummy trim from...
Von Duprin
Starting at
$897.00
$716.71
Von Duprin 386DT Dummy Trim Exit Device Trim for 33A/35A Series, Non-Handed Heavy Duty
Model: VON-386DT
Von Duprin 386DT Dummy Trim Exit Device Trim for 33A/35A Series, Non-Handed Heavy DutyProfessional Narrow Stile Exit Device Trim with Pull-When-Dogged FunctionalityThe Von Duprin 386DT is a Grade 1,...
Von Duprin
Starting at
$518.00
$341.88
Von Duprin 388 Night Latch Cylinder Trim for 33A/35A Series Exit Devices
Model: VON-388
Von Duprin 388 Night Latch Cylinder Trim for 33A/35A Series Exit DevicesCommercial-Grade Keyed Entry Trim with Reliable Interior EgressThe Von Duprin 388 Night Latch Cylinder Trim is a heavy-duty,...
Von Duprin
Starting at
$451.00
$274.07
Von Duprin E360L-BE-03 Grade 1 Electric Passage Exit Device Trim with 03 Lever, Fail Safe, for 33/35A Series
Model: VON- E360L-BE-03
Von Duprin E360L-BE-03 Grade 1 Electric Passage Exit Device Trim with 03 Lever, Fail Safe, for 33/35A SeriesCommercial-Grade Electrified Lever Trim for 33/35A Series Exit DevicesThe Von Duprin...
Von Duprin
Starting at
$2,082.00
$1,486.08

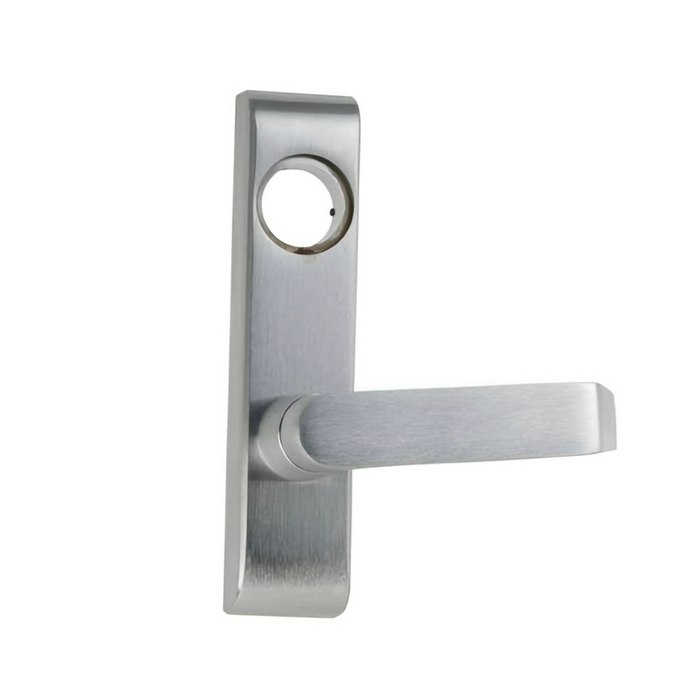

Von Duprin 360L Lever Trim for 33A/35A Series Exit Devices with Classroom, Passage, and Dummy Functions
Heavy-Duty Grade 1 Control Trim for Commercial Exit Device Applications
The Von Duprin 360L is a professional-grade lever trim from the 360 Series Control Trims line, engineered specifically for compatibility with Von Duprin 33A/35A Series exit devices. Rated ANSI/BHMA A156.3 2014 Grade 1 and certified to ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132, this heavy-duty lever trim delivers the certifications and flexibility demanded by commercial facilities. The 360L supports three standard functions—Classroom, Passage, and Dummy—and features a field-reversible door hand direction for versatile installation across a wide range of openings.
Professional Features & Benefits
- ANSI/BHMA Grade 1 Certified: Meets ANSI/BHMA A156.3 2014 Grade 1 standards, ensuring heavy-duty performance and compliance for demanding commercial applications.
- Comprehensive Fire-Rated Certifications: Certified to ANSI/UL 10C and CAN/ULC-S104 for fire-rated configurations, as well as ANSI/UL 305 and CAN/ULC-S132, supporting code-compliant installations.
- Three Standard Functions: Supports Classroom (key locks and unlocks the lever), Passage (lever is always active), and Dummy (rigid mechanical trim for pull operation) functions to serve a variety of facility needs.
- Field-Reversible Handing: Door hand direction is field reversible, allowing installers to adapt the trim to left- or right-handed openings without special ordering.
- 33A/35A Series Compatibility: Designed exclusively for use with Von Duprin 33A/35A Series exit devices, ensuring seamless integration and reliable operation within the existing device ecosystem.
- Modular and Upgradeable Design: Von Duprin’s modular 360 Series platform allows functionality to be added or upgraded cost-effectively as facility needs evolve, protecting the long-term investment.
- Heavy-Duty Commercial Construction: Rated for heavy-duty use in commercial environments, delivering consistent performance in high-traffic applications where dependability is essential.
- Flexible Trim Ecosystem: The 33A/35A Series also supports 386 pull trim (Storeroom and Dummy functions) and 388 optional pull trim (Storeroom function), providing a complete range of trim solutions for varied openings.
Technical Specifications
- Subcategory: Exit Device Trim
- Series: 360 Series
- Grade: Grade 1
- Duty Level: Heavy Duty
- Function Description: Key Locks and Unlocks
- Product Group: Exit Devices and Trim
- Product Subgroup: Exit Device Trim
- Product Type: Exit Device Trim
- Commercial/Residential: Commercial
- Handle Type: Lever
- Product Model: 360L
- Door Hand Direction: Field Reversible
- Product Category: Exit Devices and Trim
- Department: Door Hardware
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Von Duprin Quality?
Von Duprin 360 Series lever trim products are engineered to deliver professional-grade reliability, backed by ANSI/BHMA A156.3 2014 Grade 1 certification and a full suite of UL and ULC fire-rated listings for configurations requiring fire-rated compliance. The modular, upgradeable design of the 360 Series platform ensures that facilities can adapt and expand functionality cost-effectively over time, protecting the hardware investment well into the future. Trusted by commercial facility managers and security professionals, Von Duprin exit device trim is built for the demands of high-traffic, code-critical openings.
Manufacturer Resources
Product Specs
- Subcategory:
- Exit Device Trim
- Series:
- 360 Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Function Description:
- Key Locks and Unlocks
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trims
- Commercial/Residential:
- Commercial
- Handle Type:
- Lever
- Product Model:
- 360L
- Door Hand Direction:
- Field Reversible
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
Von Duprin VON-360L-626 – Frequently Asked Questions
1) What exit devices is the Von Duprin 360L lever trim compatible with?
The 360L lever trim is specifically designed for Von Duprin 33A and 35A series exit devices. It provides exterior access control while maintaining code-compliant free egress from the interior.
2) How do I determine the correct handing for the 360L lever trim?
Stand on the secure side of the door where the lever will be installed. If hinges are on your right, order right-hand. If hinges are on your left, order left-hand. Verify handing before installation.
3) What finishes are available for the Von Duprin 360L lever trim?
Standard finishes include satin chrome, dark bronze, bright brass, and satin brass. Custom finishes may be available through special order. Match existing door hardware for consistent appearance.
4) What door thickness range does the 360L lever trim accommodate?
The 360L typically accommodates standard commercial door thicknesses from 1-3/4" to 2-1/4". Verify exact specifications with manufacturer documentation for your specific installation requirements.
5) Does the 360L lever trim meet ADA accessibility requirements?
Yes, the lever design meets ADA requirements for accessible door hardware. The lever operates with less than 5 pounds of force and can be operated with a closed fist or loose grip.
6) What cylinder type does the 360L lever trim accept?
The 360L accepts standard mortise cylinders. Cylinder must be purchased separately and should match your existing key system. Verify cylinder length for proper installation depth.
7) Can the 360L be installed on existing exit device installations?
Yes, if you have compatible 33A or 35A series exit devices already installed. The trim mounts to existing device mounting points. Verify proper alignment and door preparation before installation.
8) What tools are needed for 360L lever trim installation?
Basic installation requires screwdrivers, drill with bits, and measuring tools. Follow Von Duprin installation templates for proper positioning. Professional installation recommended for code compliance.
9) How do I adjust the lever return spring tension?
Spring tension is typically factory-set for optimal operation. Field adjustments should only be made by qualified technicians following manufacturer specifications. Over-adjustment can cause premature wear or malfunction.
10) What's the difference between 360L and other Von Duprin lever trims?
The 360L is specifically designed for 33A/35A series compatibility. Other trims like 996L or 998 series work with different exit device models. Always match trim to your specific exit device series.
11) What routine maintenance does the 360L lever trim require?
Clean regularly with mild soap and water. Lubricate pivot points annually with light machine oil. Check mounting screws for tightness. Avoid harsh cleaners that can damage finish or internal components.
