Von Duprin E360L-BE-03 Grade 1 Electric Passage Exit Device Trim with 03 Lever, Fail Safe, for 33/35A Series

Von Duprin E360L-BE-03 Grade 1 Electric Passage Exit Device Trim with 03 Lever, Fail Safe, for 33/35A Series

(No reviews yet) Write a Review

Model: E360L-BE-03 26D FSE LHR
$2,082.00
$1,177.67
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,082.00
$1,177.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin E360L-BE-03 Grade 1 Electric Passage Exit Device Trim with 03 Lever, Fail Safe, for 33/35A Series

Commercial-Grade Electrified Lever Trim for 33/35A Series Exit Devices

The Von Duprin E360L-BE-03 is a Grade 1 heavy-duty electric passage lever trim designed for use with compatible 33/35A Series exit devices. Featuring a fail-safe configuration and the classic 03 lever style, this trim provides reliable electrified access control with key locks and unlocks functionality. The unit is handed and reversible, with a base width of 1 11/16", a base height of 7 1/2", and a projection of 3". The ANSI function is field selectable between 08 or 09, offering installation flexibility for a wide range of commercial door applications. A 1-1/4" mortise cylinder is required and sold separately.

Professional Features & Benefits

  • Fail-Safe Electric Operation: Configured fail safe for electrified access control, ensuring the lever trim releases upon loss of power for life-safety compliance in commercial applications.
  • ANSI Function Field Selectable: ANSI function 08 or 09 is field selectable, providing installation flexibility to meet specific access control and egress requirements without additional hardware.
  • Precise Dimensional Profile: Features a base width of 1 11/16", base height of 7 1/2", and a projection of 3" for a low-profile, professional fit on commercial door assemblies.

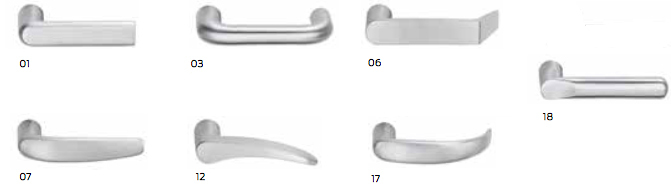

  • 03 Lever Style: Equipped with the Von Duprin 03 lever design, offering a clean, commercial aesthetic compatible with a wide range of architectural door hardware specifications.
  • Broad Device Compatibility: Designed for use with 33/35A rim, 33/35A Rim-F, 33/3527A, 33/3527A-F, 33/3547A, 33/3547A-F, 33/3548A, and 33/3548A-F exit devices for versatile installation options.
  • 1-1/4" Mortise Cylinder Prep: Accepts a 1-1/4" mortise cylinder (sold separately), allowing integration with existing keying systems and master key programs.
  • Handed and Reversible: The trim is handed and reversible, accommodating both left-hand and right-hand door configurations for maximum installation flexibility.
  • Grade 1 Heavy-Duty Construction: Rated Grade 1 and classified as heavy duty, engineered for demanding commercial environments where long-term reliability and performance are essential.

Technical Specifications

  • Series: 94/95 Series
  • Grade: Grade 1
  • Duty Level: Heavy Duty
  • Cylinder Included: No
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Subcategory: Exit Device Trim
  • Commercial/Residential: Commercial
  • Handle Type: Lever
  • Product Model: 940L-BE
  • Product Function: Passage
  • Door Hand Direction: Handed, Reversible
  • Product Projection: 2 3/32" (75 mm)
  • Trim Hardware: Lever, Blank Escutcheon
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device trim products deliver professional-grade reliability with Grade 1, heavy-duty construction engineered for the most demanding commercial environments. The E360L-BE-03 is designed for seamless integration with the 33/35A Series exit device family, offering field-selectable ANSI functions and fail-safe electric operation for dependable life-safety performance. Engineered for commercial applications where consistent, code-compliant egress hardware is essential.

Product Specs

Series:
94/95 Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Cylinder Included:
No
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Handle Type:
Lever
Product Model:
940L-BE
Product Function:
Passage
Door Hand Direction:
Handed, Reversible
Product Projection:
2 3/32" (75 mm)
Trim Hardware:
Lever, Blank Escutcheon
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin E360L-BE-03 26D FSE LHR – Frequently Asked Questions

1) What is the difference between the fail safe and fail secure version of this Von Duprin electric lever trim?
Both are offered on the E360L-BE-03 with the 03 lever. Fail Safe (FS) releases the lever on loss of power, so the opening stays accessible from the outside during a power failure. Fail Secure (FSE) keeps the lever locked when power drops, so the door stays secure and egress is still available from the push side through the exit device. Pick FS where you need free access in an outage, FSE where the opening has to stay locked down.
2) Do I need to order a cylinder separately with the Von Duprin E360L-BE-03 trim?
Yes. No cylinder ships with the trim. It takes a 1-1/4 inch mortise cylinder, ordered separately, which lets you key it into an existing master key system.
3) Does handing matter when ordering the E360L-BE-03 lever trim?
Handing matters here. The trim is handed, though reversible, and it is ordered as LHR (left hand reverse) or RHR (right hand reverse). Stand outside the opening: if the door is pulled toward you and the hinges are on your left, that is LHR. Getting it wrong means the lever throws the wrong way.
4) What is the closest electrified lever exit trim alternative to the Von Duprin E360L-BE-03?
The Falcon 510L-FSA/FSE is the nearest peer in character: a heavy duty electrified exit device lever trim for 25 Series devices, offered in fail safe and fail secure like the E360L-BE-03. The Von Duprin unit is Grade 1 heavy duty with the 03 lever and a blank escutcheon, and it is built for 33/35A Series rim and vertical rod devices, so the choice comes down to which device family is on the door.
5) If the opening does not need electrification, what mechanical lever trim can be used in place of the E360L-BE-03?
For a purely mechanical opening, the Falcon 510L is a heavy duty classroom function lever trim for 24/25 Series devices, and the Pamex E9000 is a Grade 1 storeroom function heavy duty lever trim fitting doors 1-3/8 inch to 2 inch. The Design Hardware KIL storeroom and KIL entry trims are Grade 1 lever trims for 1000 and 2000 Series devices. The E360L-BE-03 is the electrified route, with fail safe and fail secure variants.
6) Can a nightlatch trim be substituted for the E360L-BE-03?
No, they behave differently. Nightlatch trims such as the Sargent 704ET and 704-ETL, both Grade 1 heavy duty night latch lever trims, and the Sargent 744 for 8700/8900 Series devices, require the key to retract the latch every time. The Dorma YR03R is a wide stile nightlatch escutcheon lever trim, less cylinder. The E360L-BE-03 is a passage function electrified trim whose lever is controlled by power, so it suits access control rather than key-only entry.
7) How far does the E360L-BE-03 lever trim stick out from the door face?
Projection is 2-3/32 inches (75 mm). Worth checking against wall stops, side-lite frames, and any adjacent door in a vestibule before you set the trim, since the lever sits proud of that escutcheon.
8) Can I set the ANSI function on the E360L-BE-03 in the field, or is it fixed at the factory?
The ANSI function is field selectable between 08 and 09, so one part covers either access control scheme without a second order or extra hardware. Useful when the spec shifts between drawing and install.
9) Is this Von Duprin trim heavy duty enough for a school or hospital main entry?
It is Grade 1, heavy duty, and built for commercial use, which is the level normally specified for high traffic openings in schools, healthcare, government and multi-tenant buildings. Grade 1 is the top ANSI/BHMA durability tier for this kind of hardware.
10) What actually comes on the E360L-BE-03 trim, and is passage function what I want?
You get the 03 lever on a blank escutcheon, with passage function: the lever operates the latch and the key locks and unlocks the outside lever. If you want a trim where the key only retracts the latch and the lever never unlocks, that is nightlatch instead, such as the Sargent 704ET or Corbin Russwin VT957ET. If you want the lever permanently locked with key access only, look at a storeroom trim like the Marks USA M195F.
11) What other electrified exit device trims could I use instead of the Von Duprin E360L-BE-03?
If you need an electrified lever trim from another line, the Falcon 510L-FSA/FSE is a heavy duty electrified trim for 25 Series devices, and Command Access makes several aftermarket electrified trims with 12V/24V operation and fail safe or fail secure options, including the ET15, ET25 and ET26. Command Access also builds a 230L for Von Duprin V96/36/23 Series devices, which is a different Von Duprin device family than the 33/35A the E360L-BE-03 serves.
12) Is there a thumbpiece or pull alternative if the door will not take a lever trim like the E360L-BE-03?
Yes. The Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom trim with thumbpiece, pull plate and cylinder prep, less cylinder, and the Tell EDTHP53 is a thumbpiece trim in entry function for doors 1-3/8 inch to 1-3/4 inch. For a plain pull, the Tell EDPT is a pull trim with cylinder hole, less cylinder. The E360L-BE-03 uses the 03 lever with a blank escutcheon.
13) Are there medium duty lever trims that cost out differently from the Grade 1 E360L-BE-03?
Yes, Falcon lists two medium duty options: the 179L lever control trim in classroom function for 1790 Series devices, and the 212L escutcheon lever trim for 20 Series devices with shear pin protection. The E360L-BE-03 is Grade 1 heavy duty, which is the spec to hold if the opening is high traffic or the drawing calls for Grade 1.
14) What finishes does the Von Duprin E360L-BE-03 electric lever trim come in?
Nine finishes across the 03 lever trim: 626 satin chrome, 643E aged bronze, SP313 dark bronze, SPBLK black painted, US10B dark oxidized satin bronze oil rubbed, US15 satin nickel, US26 bright chrome, US3 bright brass and US4 satin brass. 626 is the usual commercial standard if you are matching existing openings in an office or school.
