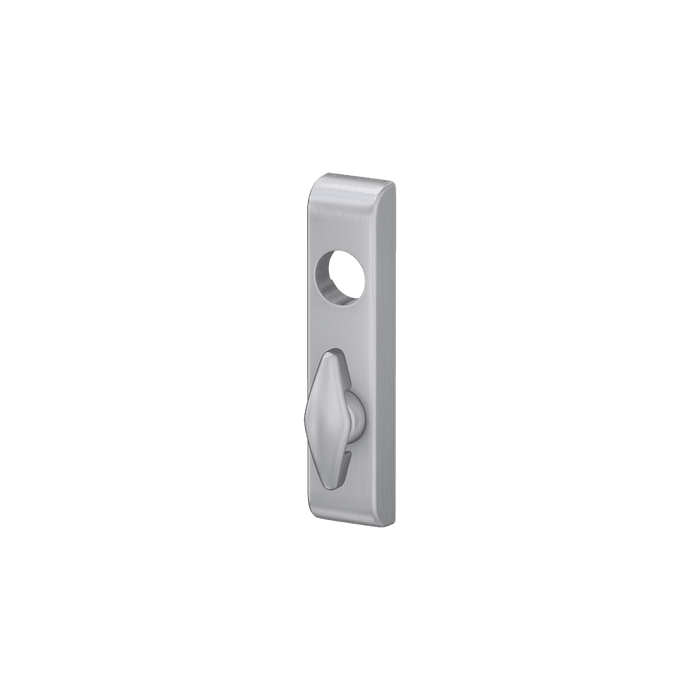

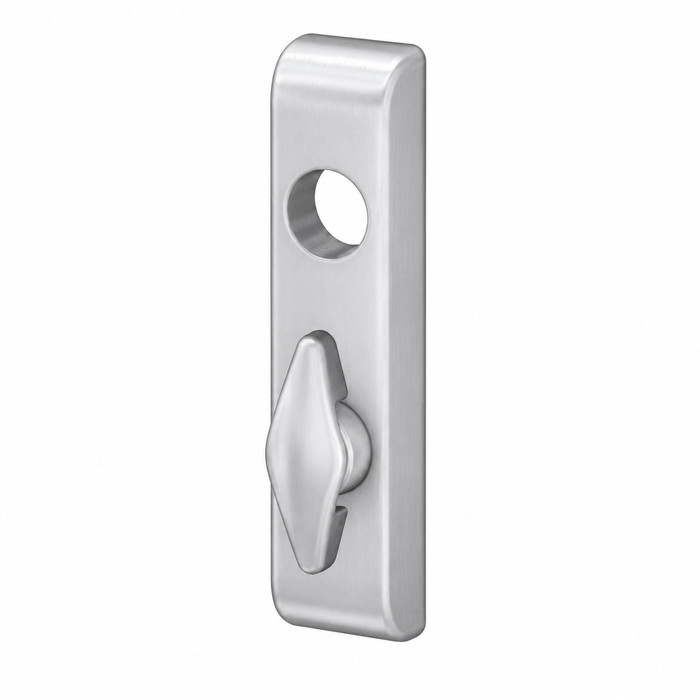

Von Duprin 360T Grade 1 Thumbturn Trim with Classroom Function, Non-Handed

Von Duprin 360T Grade 1 Thumbturn Trim with Classroom Function, Non-Handed

(No reviews yet) Write a Review

Model: VON-360T
$1,098.00
$679.90
Selected Finish is
Selected Trim Function is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,098.00
$679.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 360T Grade 1 Thumbturn Trim with Classroom Function, Non-Handed

Commercial-Grade Exit Device Trim for Classroom Security Applications

The Von Duprin 360T is a Grade 1 Thumbturn Trim designed for use with the 33A/35A Series exit devices, delivering reliable classroom function security in commercial door hardware applications. This non-handed trim features a key-locks-and-unlocks mechanism operated from behind the case, and is compatible with a 1-1/4" mortise cylinder (not included). With compact dimensions of 1-11/16" x 7-1/2" and a projection of 1-13/16", the 360T integrates seamlessly into commercial door assemblies requiring thumbturn control.

Professional Features & Benefits

  • Grade 1 Commercial Rating: Meets Grade 1 standards for heavy-duty commercial applications, ensuring long-term reliability in high-traffic environments.
  • Classroom Function Operation: Key locks and unlocks from behind the case, providing the controlled access required for classroom security applications.
  • Thumbturn Control Design: T-Thumbturn trim classification allows convenient interior control of the locking mechanism without a key from the inside.
  • Non-Handed Configuration: Universal non-handed design simplifies specification and installation, eliminating the need to determine door handing at time of order.
  • 33A/35A Series Compatibility: Engineered specifically for use with Von Duprin 33A/35A Series exit devices for a fully integrated and matched hardware solution.
  • Compact Profile Dimensions: Measures 1-11/16" x 7-1/2" with a 1-13/16" projection, fitting standard commercial door preparations with minimal intrusion.
  • Mortise Cylinder Ready: Accepts a 1-1/4" mortise cylinder (not included), allowing flexibility in cylinder selection to match existing keying systems.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 33A/35A Series Trim
  • Grade: Grade 1
  • Product Subgroup: Exit Device Trim
  • Subcategory: Exit Device Trim
  • Product Type: Exit Devices and Trim
  • Commercial/Residential: Commercial
  • Product Model: 360T
  • Door Hand Direction: Non-Handed
  • Product Dimension: 1-11/16" x 7-1/2"
  • Product Projection: 1-13/16"
  • Product Category: Exit Devices and Trim
  • Product Function: Classroom
  • Trim Classification: T-Thumbturn Control
  • Department: Door Hardware
  • Product Trim Style: T

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Von Duprin Quality?

Von Duprin exit device trim products are engineered to Grade 1 commercial standards, delivering the durability and dependability required in demanding institutional and commercial environments. The 360T Thumbturn Trim pairs precisely with the 33A/35A Series exit devices, ensuring a cohesive and code-compliant hardware assembly. Specified by security professionals for classroom and commercial applications where reliable access control and ease of operation are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
33A/35A Series Trim
Grade:
Grade 1
Product Subgroup:
Exit Device Trim
Subcategory:
Exit Device Trim
Product Type:
Exit Devices and Trim
Commercial/Residential:
Commercial
Product Model:
360T
Door Hand Direction:
Non-Handed
Product Dimension:
1-11/16" x 7-1/2"
Product Projection:
1-13/16"
Product Category:
Exit Devices and Trim
Product Function:
Classroom
Trim Classification:
T-Thumbturn Control
Department:
Door Hardware
Product Trim Style:
T

Von Duprin VON-360T – Frequently Asked Questions

1) Will the Von Duprin 360T trim work on a 33A or 35A exit device?
The 360T thumbturn trim is built for the Von Duprin 33A/35A Series exit devices. That is the mounting match it is made to, so if the device on the door is a 33A or 35A rim, mortise, or vertical rod unit, the 360T is the correct outside trim. It will not mount to a different Von Duprin family.
2) Does the 360T thumbturn trim come with a cylinder, or do I have to order one separately?
No cylinder is included. The 360T takes a 1-1/4 inch mortise cylinder, ordered separately, which lets you match the keyway and keying system already on the building. Add one to the order or the trim arrives with nothing to key it.
3) What does classroom function mean on a Von Duprin 360T trim, and is that what I want for a school door?
Classroom function on the 360T means the key locks and unlocks the outside trim from behind the case, and the thumbturn gives control of the locking mechanism without a key. Egress is never affected, the exit device inside always lets people out. Practically: staff can leave the outside lever secured or free, and the door stays a push-to-exit opening either way. If your district requires lockdown from inside the room without opening the door, confirm the thumbturn side is the room side of the opening before you specify.
4) Do I need to specify handing when ordering the 360T trim?
No handing to specify. The 360T is non-handed, so one part covers left hand and right hand openings, and reverse bevel doors too. For a property manager buying spares across a building, that means a single line item instead of a handed pair.
5) How far does the 360T trim stick out from the door face?
Projection is 1-13/16 inches off the face, and the escutcheon measures 1-11/16 x 7-1/2 inches. That projection matters where the door swings past a wall return, a mullion, or an adjacent frame, and where a thumbturn needs clearance to rotate. On a narrow vestibule or a tight double egress pair, check the swing against the 1-13/16 inch stand-off before ordering.
6) Is the Von Duprin 360T rated for heavy traffic commercial use?
Grade 1, and specified as commercial hardware. That is the top ANSI/BHMA durability tier for door hardware, which is what an institutional or MRO buyer standardizing across a facility normally requires on corridor and classroom openings.
7) What is the difference between a thumbturn trim and a lever trim on a Von Duprin exit device?
The 360T is thumbturn control, style T, not a pull or lever trim. A thumbturn trim controls the locked or unlocked state of the opening, it is not the handle you grab to retract a latch and enter. If you need people to open the door from the outside, you need a lever trim on the device instead. Specify the 360T where the requirement is controlling lock status on a classroom opening, with the exit device handling egress from inside.
8) What finishes does the Von Duprin 360T thumbturn trim come in?
Two finishes: 626/US26D satin chrome and 613/US10B oil rubbed bronze. 626 is the standard institutional match on schools and healthcare corridors, where most existing Von Duprin devices are already 626. 613 is the darker bronze used where the rest of the openings are dark hardware. Match the finish on the exit device itself, not the door, or the trim reads as a mismatch on the pull side.
