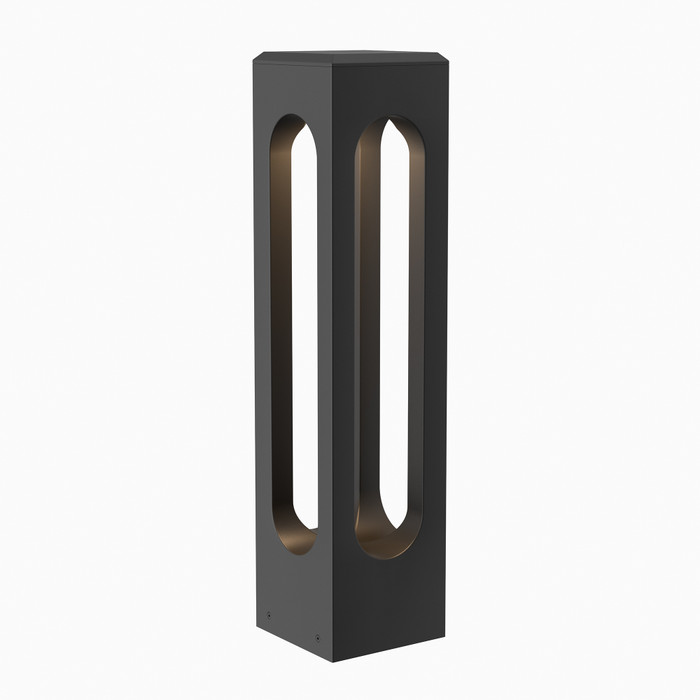

WAC Lighting 6704 Altar LED 12V Bollard Light
The WAC Lighting Altar LED 12V Bollard Light is a modern architectural low-level bollard fixture that delivers smooth, balanced illumination for pathways and outdoor spaces. Cast from a special K-alloy die-cast aluminum and factory sealed to an IP66 rating, this 12V fixture pairs a high-powered LED engine (up to 385Lm, 90 CRI) with a durable, weather-resistant build designed to withstand demanding outdoor environments while blending seamlessly into the landscape.
Key Features
- Durable Construction: Cast using a special K-alloy die-cast aluminum engineered to withstand challenging outdoor environments over time, available in black, bronze, or the new stone-like granite finish.
- 12V Low-Voltage Operation: Input of 9-15V AC requires a magnetic or electronic power supply (sold separately) and delivers smooth, continuous dimming to 10% with a Magnetic Low Voltage (MLV) dimmer.
- High-Powered LED Engine: Power draw of 7.9W (8.0VA) produces up to 385Lm of brightness with a 90 CRI for accurate, true color rendering along pathways and landscaping.
- Long Rated Life: Rated for 50,000 hours of operation, reducing maintenance and relamping in outdoor installations.
- Wet-Location Sealing: Factory sealed and watertight with an IP66 rating, protecting the fixture against high-pressure water jets and outdoor elements.
- Frosted Glass Lens: Diffuses output for soft, even illumination rather than harsh point-source glare.
- Simplified Installation: Includes a guardian spike mounting accessory and a 6ft lead wire with two gel-filled direct burial wire nuts; an optional concrete pour kit (SKU# M6704-CON-KIT) is sold separately.
Certifications & Compliance
- UL & cUL 1838 Listed
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Collection: Altar
- Dimmable: MLV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Bollard Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Warranty: 10 Years Functional, 2 Years Finish
- Avg Rated Hours: 50000
- Beam Spread: 130
- Voltage: 12
- Material: Die-cast aluminum
- Country of Origin: Thailand
- Location Rating: Wet
- Total Wattage: 7.9
- Style: Modern;Transitional
Typical Applications
- Pathway and Walkway Illumination
- Landscape and Garden Lighting
- Outdoor and Wet-Location Installations
- Commercial and Residential Grounds Lighting
- New Construction and Landscape Renovation Projects
Why WAC Lighting?
WAC Lighting builds the Altar bollard from a special K-alloy die-cast aluminum and seals it to an IP66 rating, giving installers a fixture engineered to perform reliably in demanding outdoor conditions. Backed by UL & cUL 1838 listing and a 10-year functional, 2-year finish warranty, it delivers code-compliant, low-maintenance performance for professional landscape and pathway lighting projects.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Altar
- Dimmable:
- MLV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Bollard Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Bollard Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 130
- Product Voltage:
- 12
- Product Material:
- Die-cast aluminum
- Location Rating:
- Wet
- Total Wattage:
- 7.9
- Product Style:
- Modern;Transitional
WAC Lighting 6704-27BK – Frequently Asked Questions
1) Can the WAC Altar 6704 bollard be wired directly to 120V line voltage?
No. The Altar 6704 is a 12V low-voltage bollard with a 9-15V AC input, so it has to run off a magnetic or electronic landscape power supply, which is sold separately. Wiring it to 120V will destroy the LED engine. Plan the transformer VA budget around 8.0VA per fixture.
2) What is included for mounting the Altar LED bollard, and what do I need for a concrete install?
Each Altar bollard ships with a guardian spike mounting accessory and a 6ft lead wire with two gel-filled direct burial wire nuts, so a soil or planting-bed install needs nothing extra beyond the transformer and supply cable. For setting it in a hardscape or concrete pad, WAC offers a concrete pour kit, M6704-CON-KIT, ordered separately.
3) Will the Altar bollard survive sprinkler spray and irrigation overspray?
It is wet-location rated and factory sealed to IP66, which covers high-pressure water jets as well as rain, so sprinkler overspray is not an issue. Note IP66 is not a submersion rating, so it should not be installed where water pools over the fixture.
4) Can I dim the Altar 12V bollards from a standard wall dimmer?
Dimming works through the low-voltage supply, not at the fixture. The Altar is MLV dimmable and will run smooth, continuous dimming down to 10% with a magnetic low voltage dimmer ahead of the transformer. A standard incandescent or TRIAC dimmer labeled for ELV or 0-10V control is not the right match.
5) How many Altar bollards can I put on one landscape transformer?
Each Altar draws 7.9W and 8.0VA, so load per fixture is small. Divide your transformer's rated VA by 8.0 and leave headroom for voltage drop over the run length. Input tolerance is 9-15V AC, which gives some margin at the far end of a long run.
6) What finish and color temperature combinations does the Altar 6704 bollard come in?
Six build options: black, bronze, or granite finish, each in 2700K or 3000K. The granite is a stone-like finish that reads less like painted metal in planting beds. All are the same die-cast K-alloy aluminum body. For matching existing site lighting, 2700K is the warmer, more residential look and 3000K reads slightly crisper on walkways.
7) Is a 7.9W bollard bright enough to light a walkway?
The Altar puts out up to 385 lumens through a frosted glass lens with a 130 degree beam spread, which is a wide, low-glare wash rather than a tight spot. That suits pathway and garden-bed lighting with fixtures spaced along the run. For lighting a parking area or a driveway apron, you want a taller pole fixture instead.
8) Can the LED be replaced in the Altar bollard, or is the whole fixture replaced at end of life?
The LED is an integral module driven through a transformer, not a lamp in a socket, so there is nothing to relamp. It is rated at 50,000 hours, and the fixture is factory sealed for its IP66 rating, which is part of why it is not field-serviceable. Spec it on that basis for maintenance planning.
9) Will the color of the Altar bollard look right next to interior warm-white fixtures at 90 CRI?
Output is 90 CRI at either 2700K or 3000K, so plant and masonry color holds up well under it and it reads close to warm interior light spilling onto a patio. Pick 2700K if the adjacent interior fixtures are 2700K, and keep one temperature across the whole run so the pathway does not look mismatched.
