WAC Lighting PD-689ML Banded 4-CCT LED Multi-Light Pendant

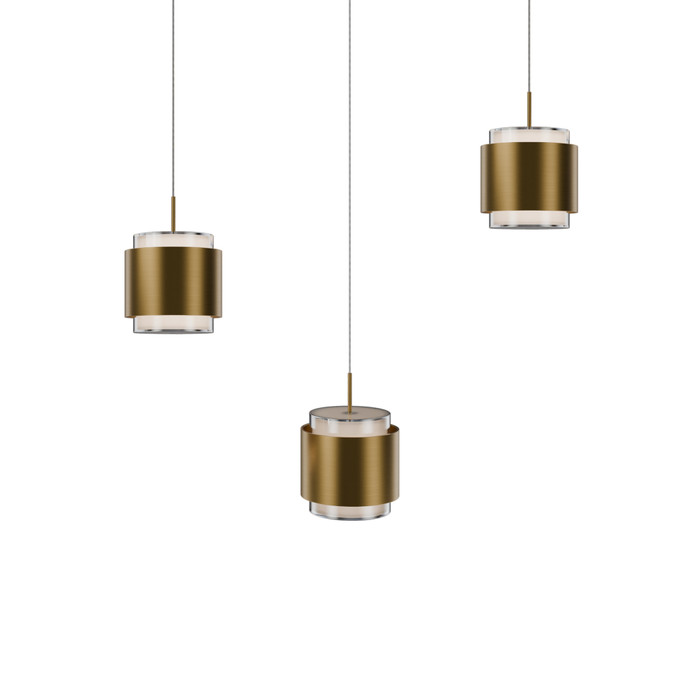

The WAC Lighting PD-689ML Banded 4-CCT LED Multi-Light Pendant wraps a lustrous metallic band around an inner white diffuser, casting a layered glow of shadow and illumination from both above and below. Built with durable Aluminum construction, this pendant features built-in color temperature adjustability across 2700K/3000K/3500K/4000K and a high-powered replaceable LED module rated at CRI 90 with 48,000 rated hours. Multiple Banded pendants can be grouped on a linear, round, or square canopy for a modern statement fixture, and the fixture is ETL & cETL listed for Damp Locations, CEC Title 24 Compliant.
Key Features
- Durable Construction: Aluminum housing delivers both up and down illumination for layered ambient light.
- Selectable Color Temperature: Switch between 2700K/3000K/3500K/4000K, with the option to pre-select a color temperature or adjust it in the field.
- Sleek Electrified Cable: Eliminates clunky power wires; pendant height is simple to adjust through push pin connectors on the canopy, and the fixture is sloped ceiling compatible.
- Universal Voltage Driver: A Universal Input Voltage Driver (120V-240V-277V) is concealed within the canopy for flexible installation.
- Smooth Continuous Dimming: Compatible with electronic low voltage 0-10V, ELV, or TRIAC dimmers.
- High-Powered LED Module: Replaceable LED module rated CRI 90 with 48,000 rated hours and selectable CCT of 2700-3000-3500-4000K.
- Diffuser: Frosted Etched White Acrylic Diffuser softens and evenly distributes light output.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Frosted Etched White Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Multi-Light Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Style: Mid-Century Modern
Typical Applications
- Multi-Light Linear, Round, or Square Canopy Installations
- Residential and Commercial Interior Lighting
- Kitchen Islands, Dining Areas, and Entryways
- Mid-Century Modern Interior Design Schemes
- Damp Location Installations
Why WAC Lighting?
WAC Lighting builds the PD-689ML around Aluminum construction, a replaceable high-CRI LED module, and a concealed universal voltage driver, giving installers a fixture engineered for long-term reliability. With ETL & cETL Damp Location listings, CEC Title 24 compliance, and smooth 0-10V/ELV/TRIAC dimming compatibility, it delivers code-compliant performance for both residential and commercial lighting projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Banded
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Etched White Acrylic Diffuser
- Subcategory:
- Multi-Light Pendant
- Avg Rated Hours:
- 48000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Mid-Century Modern
- Mounting Method:
- Ceiling
WAC Lighting PD-68903L-AB – Frequently Asked Questions
1) What canopy shapes does the WAC Banded multi-light pendant come in, and how do I tell from the model number?
The Banded PD-689ML pendants are grouped on linear, round, or square canopies, and the suffix letter on the model number tells you which: L for linear (PD-68903L, PD-68905L, PD-68914L, PD-68923L), R for round (PD-68903R, PD-68905R, PD-68909R, PD-68915R, PD-68921R), and S for square (PD-68913S, PD-68925S, PD-68941S). Light counts run 3, 5, 9, 13, 14, 15, 21, 23, 25, and 41 depending on the canopy.
2) Will the WAC PD-689ML pendant work on a 277V commercial circuit?
Yes. A universal input voltage driver is concealed in the canopy and covers 120V, 240V, and 277V, so the same fixture goes into a residential 120V kitchen or a 277V commercial lighting circuit without a separate voltage version. It is hardwired, not plug-in.
3) Which dimmers are compatible with the WAC Banded LED pendant?
It dims on 0-10V, ELV, or TRIAC controls. If you are replacing an incandescent fixture on a standard forward-phase wall dimmer, a TRIAC-compatible LED dimmer is the simplest swap; on a commercial job already running 0-10V control wiring, that works too. Avoid magnetic low voltage dimmers, which are not among the listed control types.
4) Can I set the color temperature in the field, or do I have to order the Kelvin I want?
Color temperature is selectable on the fixture across 2700K, 3000K, 3500K, and 4000K. You can pre-select before install or change it in the field, which is why one model number covers all four. For a property manager standardizing across units, that means a single SKU can be tuned to match 3000K in living spaces and 4000K in back-of-house.
5) Is this pendant rated for a covered porch or a bathroom over a tub?
The Banded pendant is ETL and cETL Listed for Damp Locations, so a covered porch, a sheltered entry, or a bathroom where it will not be hit by direct water is within its rating. It is not wet location rated, so skip fully exposed exterior spots and anything inside a shower spray zone.
6) Can the WAC Banded pendant be installed on a sloped ceiling?
Yes, the Banded pendant is sloped ceiling compatible. It mounts to the ceiling and hangs on electrified cable, with height adjusted at push pin connectors on the canopy, so individual pendants can be set to different drops to level out under a slope.
7) If an LED goes out on this pendant, do I replace the whole fixture?
No. The Banded pendant uses a replaceable high-powered LED module rated at 48,000 hours, so the light engine can be swapped rather than scrapping the fixture. Bulbs are included with the fixture at purchase.
8) Is the WAC PD-689ML good enough quality of light for a retail or kitchen island application?
The LED module is CRI 90 with a flood beam spread, so color rendering is high enough for retail merchandise display and food prep, and the output spreads rather than spotting. A frosted etched white acrylic diffuser softens the light, and the aluminum band throws illumination both up and down for layered ambient light.
9) Does the WAC Banded pendant meet California Title 24?
Yes, the Banded PD-689ML is CEC Title 24 compliant. It is not Energy Star certified and it is not ADA compliant, which matters only for wall-mounted protrusion rules and does not apply to a ceiling-hung pendant.
10) How is pendant height adjusted on the WAC Banded fixture after it is hung?
Each pendant hangs on a sleek electrified cable instead of bulky power wire, and height is set through push pin connectors at the canopy. That lets an installer stagger drops across a linear canopy over an island or level them on a round canopy without cutting anything. WAC publishes an installation guide for the fixture.
11) What finishes does the Banded multi-light pendant come in, and are all sizes offered in both?
Two finishes: Aged Brass and Black. Every light count, 3 through 41 lights, is offered in both, so a 5-light round (PD-68905R) and a 41-light square (PD-68941S) can each be had in either finish. The housing is aluminum with a metallic band wrapped around a white inner diffuser.
