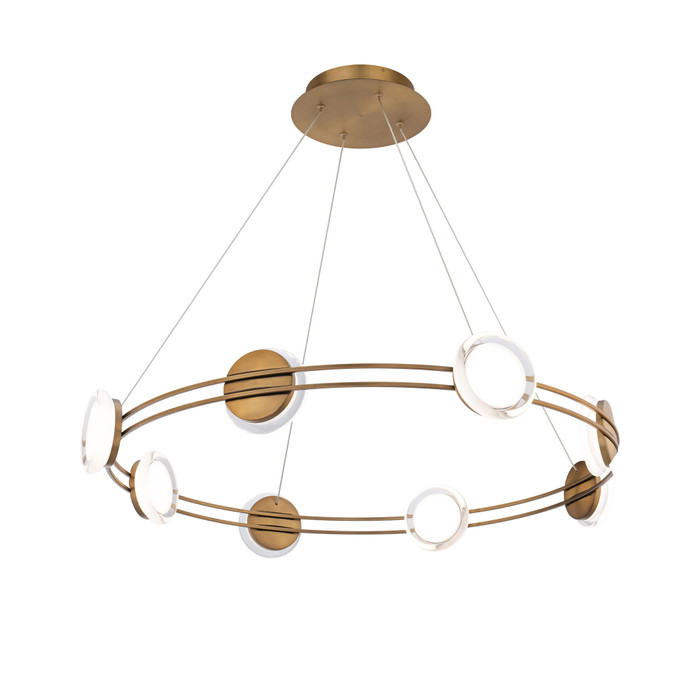

WAC Lighting PD-655 Bracelet 4-CCT LED Pendant, Aluminum Frame
The WAC Lighting PD-655 Bracelet 4-CCT LED Pendant sets circles of light in an all-around design on a gleaming, bracelet-inspired aluminum frame. Featuring both inward and outward facing illumination, this pendant is built with a high-powered replaceable LED module rated 90 CRI with built-in color temperature adjustability across 2700K/3000K/3500K/4000K. It is ETL and cETL listed for damp locations and CEC Title 24 compliant, making it a reliable choice for modern hanging lighting installations.
Key Features
- Aluminum Construction: Aluminum hardware in a bracelet-inspired, all-around frame with both inward and outward facing illumination.
- Selectable Color Temperature: Built-in color temperature adjustability from 2700K/3000K/3500K/4000K, with the option to pre-select CCT or adjust it in the field.
- Universal Input Voltage Driver: Concealed 120V-240V-277V universal input voltage driver housed in the canopy; height is easily adjusted through push pin connectors, and the fixture is sloped ceiling compatible.
- Electrified Cable Design: Ultra-sleek electrified cable eliminates the need for clunky power wires for a cleaner installed look.
- Dimming Compatibility: Smooth and continuous dimming with an electronic low voltage 0-10V, ELV, or TRIAC dimmer.
- High-Powered LED Module: Replaceable LED module rated 90 CRI with 50,000 rated hours and a Total Wattage of 57.
- Frosted Acrylic Diffuser: Frosted acrylic diffuser softens and evens out light output across the fixture.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Frosted Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 57
- Style: Modern
Typical Applications
- Residential and Commercial Hanging Pendant Lighting
- Dining Areas, Kitchen Islands, and Entryways
- Sloped Ceiling Installations
- Damp Location Indoor Spaces
- Modern and Contemporary Interior Design Schemes
Why WAC Lighting?
WAC Lighting builds the Bracelet pendant around durable aluminum hardware, a replaceable high-CRI LED module, and ETL/cETL damp-location listings for dependable, code-compliant performance. Backed by a 5-Year functional and 2-Year finish warranty, this pendant is engineered to deliver consistent, high-quality illumination for professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Bracelet
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Acrylic Diffuser
- Subcategory:
- Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 57
- Product Style:
- Modern
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-65532-27-AB – Frequently Asked Questions
1) Can the WAC Lighting PD-655 Bracelet pendant run on 277V commercial power?
Yes. The Bracelet pendant uses a universal input driver rated 120V, 240V and 277V, concealed inside the canopy, so the same fixture works on residential 120V and on 277V commercial branch circuits. It is a hardwired fixture, not a plug-in, so it needs a junction box at the ceiling.
2) Do I have to pick a color temperature when I order the PD-655 pendant, or can I set it on site?
Either way. The Bracelet pendant has built-in CCT selectability across 2700K, 3000K, 3500K and 4000K, so you can order it pre-selected at the temperature you want or change it in the field during install. For fleet work that means one part number covers warm dining spaces and cooler task areas.
3) Will the PD-655 Bracelet pendant mount on a sloped ceiling?
Yes, the Bracelet is sloped ceiling compatible and ceiling mounted. Hanging height is adjusted with push pin connectors on the cable, so you can set the drop without cutting anything.
4) Is this pendant safe over a kitchen sink or in a covered porch area?
The Bracelet pendant is ETL and cETL listed for damp locations, so it handles indoor humidity such as a kitchen, a bath area outside the shower, or a covered entry protected from direct water. It is not wet-location rated, so do not use it anywhere exposed to rain or direct spray.
5) What dimmer works with the WAC Bracelet LED pendant?
It dims on 0-10V, ELV, or TRIAC controls for smooth continuous dimming. Standard incandescent-only or magnetic low voltage dimmers are not on that list, so if the room has an older rotary dimmer plan on swapping it for an ELV or TRIAC LED-rated device.
6) How much light does the PD-655 Bracelet pendant put out, and at what wattage?
Total wattage is 57. Output is 3,827 lumens on the Black Chrome finish at every CCT and on Aged Brass at 3000K, 3500K and 4000K; the Aged Brass 2700K version is listed at 4,157 lumens. Color rendering is 90 CRI with a flood beam spread, and the frosted acrylic diffuser evens the output from the inward and outward facing light.
7) What finishes does the Bracelet 4-CCT pendant come in?
Two: Aged Brass and Black Chrome. Both are available in all four color temperatures, so you can match a brass or a dark metal hardware scheme without changing the light color you specified.
8) If the LED burns out on this pendant, does the whole fixture get replaced?
No. The Bracelet uses a replaceable high-powered LED module rather than a sealed board, so the light engine can be swapped instead of pulling the fixture. The module is included with the pendant and is rated 50,000 hours.
9) Does the WAC Bracelet pendant meet California Title 24?
Yes, it is CEC Title 24 compliant, which matters on California residential and commercial permits. It is not Energy Star rated, and it is not ADA compliant, so do not use it where a project calls for ADA-compliant fixtures.
10) Is there an installation guide for the WAC PD-655 pendant?
Yes, WAC publishes an installation guide for the Bracelet pendant and ZenSupply hosts it at https://zensupply.com/content/pdf/wac-lighting/installation-guide-984fe5.pdf. Useful before rough-in, since the fixture is hardwired to a ceiling box and the driver sits in the canopy.
11) Why does this pendant look cleaner than other cable-hung fixtures?
The Bracelet hangs on an electrified cable, so power runs through the suspension itself and there is no separate drape of power wire alongside the cable. The frame is aluminum in a bracelet-inspired ring that throws light both inward and outward.
