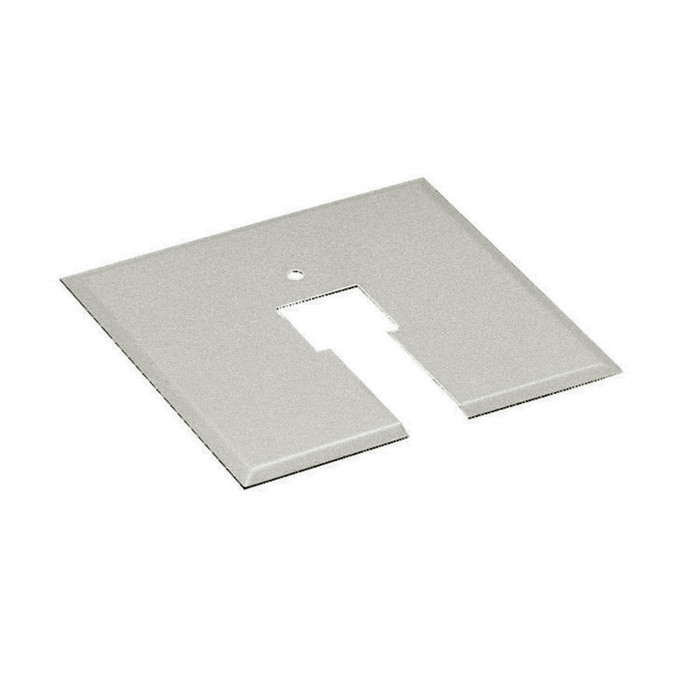

WAC Lighting Canopy Plate for Junction Box Track Component

WAC Lighting Canopy Plate for Junction Box Track Component

(No reviews yet) Write a Review

Model: WAC-CP
From the H-L-J-J2 Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting Canopy Plate for Junction Box Track Component

120V Track systems are modular and can be designed for multiple applications in nearly any interior environment. Canopy plates can be used with H, J/J2, and L track systems to cover the junction box and leave no visible gaps after the track and power connector are installed.
  • Die cast aluminum construction.
  • Canopy plates can be used with H, J/J2, and L track systems to cover the junction box and leave no visible gaps after the track and power connector are installed.
  • For use with H, J/J2, and L Track systems.
  • Single or two Circuit 120V track, power per Circuit: 120V, 1920W max per circuit, Operating Current: Rated 20A max.
  • Compatible with H, J/J2, and L track systems and H, J/J2, and L style fixtures by WAC Lighting. Also compatible with H, J/J2, and L systems and H, J/J2, and L style fixtures from other leading lighting manufacturers.
  • Standards: UL & cUL Listed for Dry Locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
4.25"
Backplate Height:
0.38"
Backplate Width:
4.25"
Collection:
H-L-J-J2 Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Accessory
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
0.38"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1269
Product Voltage:
120
Product Length:
4.25"
Product Style:
Functional
Product Height:
0.38"
Product Category:
Track Lighting
Product Width:
4.25"

WAC Lighting WAC-CP – Frequently Asked Questions

1) Will the WAC canopy plate cover a standard 4 inch junction box on a track install?
The CP canopy plate measures 4.25 by 4.25 inches with a 0.38 inch profile, so it covers a standard 4 inch square junction box and the surrounding ring with a small margin all around. It mounts over the box after the track and power feed connector are in place, hiding the opening so there is no visible gap at the ceiling.
2) Do I need a canopy plate if I already have a track power feed connector?
The power feed connector makes the electrical connection into the junction box; the canopy plate is the cosmetic cover that goes over the box around it. On a surface mounted ceiling track fed from an existing box, you want both. If the track is fed from an end where the box is concealed above a recessed condition, the plate is not required. The CP plate is a component only, not a complete system.
3) What finishes does the WAC CP canopy plate come in so I can match my existing track?
Four finishes: Black (CP-BK), White (CP-WT), Brushed Nickel (CP-BN), and Dark Bronze (CP-DB). For a fleet of rooms, order the plate in the same finish as the track run and the feed connector, since all three are visible at the ceiling.
4) Can this track canopy plate be used outdoors or in a covered exterior walkway?
No. The CP canopy plate is UL and cUL Listed for dry locations and interior use only. A covered walkway, parking structure, or any spot exposed to moisture or condensation needs a wet or damp rated system instead, not this 120V interior track component.
5) Will this canopy plate hold up on a commercial retail ceiling, or is it plastic?
Die cast aluminum, not plastic. That matters on retail and hospitality jobs where track gets re-lamped and re-aimed often and a thin cover would distort or crack around the screw points. The finish is applied over the aluminum casting.
6) Is this canopy plate rated for a two circuit 120V track run?
Yes, it works on single or two circuit 120V track. The system rating behind it is 120V, 1920W maximum per circuit at 20A max operating current. The plate itself carries no current, it is a cover, so the circuit count does not change which plate you order.
7) Can I plug this track in, or does it have to be hardwired?
Hardwired. The canopy plate exists specifically because the track is fed from a hardwired ceiling junction box, and it caps that box off. There is no cord and plug option in this component.
