WAC Lighting J Track Round Mon...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$33.95

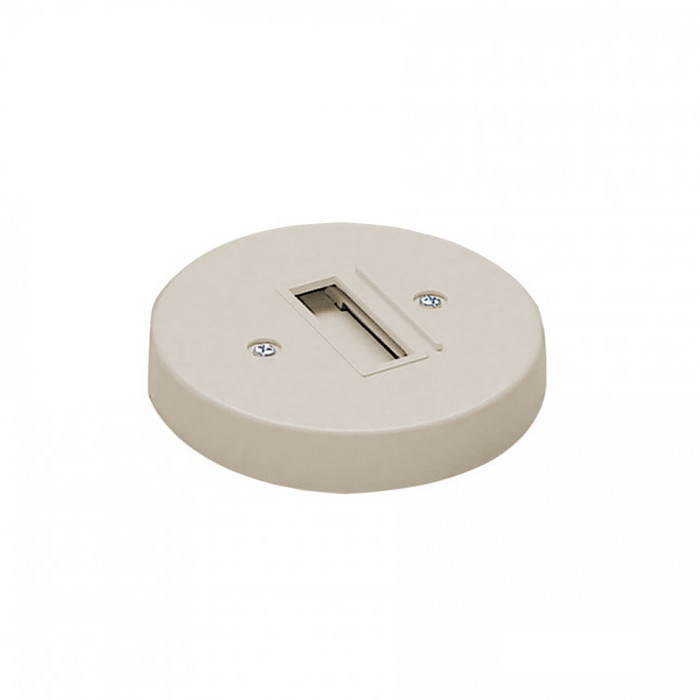

WAC Lighting J Track Round Monopoint Canopy Track Component

WAC Lighting J Track Round Monopoint Canopy Track Component

(No reviews yet) Write a Review

Model: WAC-JMP
From the J Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting 18" Suspension Kit for H-L-J-J2 Track Track Component

120V Track systems are modular and can be designed for multiple applications in nearly any interior environment. Suspension kits are used to suspend track systems beneath a surface. Kit includes a power feedable canopy cover, hallow suspension rod to slide power cables through, and a clip to attach the rod to the track. Suspension rods are standard 18, 24, 36, and 48 inch sizes. Rods may be field cut to custom lengths, use an SK05 field shortening suspension rod adapter (sold separately) when field cutting rods to custom lengths. For slope ceilings, SK14 Sloped ceiling adapter (also sold separately) can be used with a suspension kit.
  • Kit includes a power feedable canopy cover, hallow suspension rod to slide power cables through, and a clip to attach the rod to the track.
  • Suspension kits are used to suspend track to a specified distance beneath a surface. Use two for a 2ft piece of track or two for every 4ft on longer lengths.
  • For use with H, J/J2, and L Track systems.
  • Suspension rods are standard 18, 24, 36, and 48 inch sizes. Rods may be field cut to custom lengths, use an SK05 field shortening suspension rod adapter (sold separately) when field currting rods to custom lengths.
  • For slope ceilings, SK14 Sloped ceiling adapter (also sold separately) can be used with suspension kit.
  • Standards: UL & cUL Listed for Dry Locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
4.75"
Backplate Height:
0.75"
Backplate Width:
4.75"
Collection:
J Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
0.75"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1352
Product Voltage:
120
Product Length:
4.75"
Product Diameter:
4.75"
Product Style:
Functional
Product Height:
0.75"
Product Category:
Track Lighting
Product Width:
4.75"

WAC Lighting WAC-JMP – Frequently Asked Questions

1) What comes in the WAC JMP suspension kit for track lighting?
The JMP kit ships with three pieces: a power feedable canopy cover, a hollow suspension rod that the power cables run through, and a clip that fastens the rod to the track. You supply the track, the track connectors and the fixture heads separately, since this is a mounting and feed component rather than a complete system.
2) Will the WAC JMP monopoint canopy work on H track or L track, or only J track?
It works on all three. The suspension kit is built for WAC H, J/J2 and L Track systems, so the same part covers a mixed-format building as long as the run is a 120V WAC track.
3) How many suspension kits do I need for a run of track?
Use two kits on a 2 ft section of track, and on longer runs plan two for every 4 ft. Spec the count off the total track length before you order, since each kit carries only one canopy and one rod.
4) What drop lengths does the WAC suspension rod come in, and can I cut it shorter?
Standard rods are 18, 24, 36 and 48 inches. Rods can be field cut to a custom drop, but when you do you need the SK05 field shortening suspension rod adapter, which is ordered separately.
5) Can I hang track from a sloped or cathedral ceiling with this kit?
Yes, but not with the kit alone. For a slope you add the SK14 sloped ceiling adapter, sold separately, which lets the rod hang plumb off an angled surface.
6) Can the WAC JMP canopy feed power to the track, or do I still need a separate power feed?
The canopy is power feedable and the rod is hollow so the supply conductors pass down through it to the track. It is a hardwired 120V component, so it lands on a branch circuit at the ceiling box rather than plugging in.
7) Is the WAC JMP suspension kit rated for a covered exterior walkway or a parking garage?
No. It carries UL and cUL Listing for dry locations only and is an interior component. For a covered exterior soffit, a canopy or garage, specify a damp or wet location rated system instead.
8) How big is the ceiling canopy on the WAC JMP, and will it cover a 4 inch octagon box?
The round canopy measures 4.75 inches in diameter and stands 0.75 inch off the ceiling. That 4.75 inch face covers a standard 4 inch octagon or round ceiling box opening with a little margin on each side.
9) What finishes does the WAC JMP canopy come in for matching existing track?
Three finishes: black (JMP-BK), brushed nickel (JMP-BN) and white (JMP-WT). For a fleet of rooms where the track is already installed, match the canopy to the track finish rather than the fixture heads, since the canopy sits against the ceiling.
10) What is the WAC suspension canopy made of, and does it matter for a heavy track run?
The kit body is aluminum, which keeps the pendant assembly light on the ceiling box while staying rigid through the rod. Aluminum also takes the black, brushed nickel and white finishes without the plating issues you get on plastic canopies.
11) Can I flip the WAC JMP canopy to mount it on a wall instead of a ceiling?
No. The JMP is not a reversible mounting component; it is built to drop track down from a ceiling surface. For wall mounted track you need wall brackets rather than a suspension kit.
