WAC Lighting T24-GE3 Gemini 24VDC LED COB Tape Light Starter Kit

WAC Lighting T24-GE3 Gemini 24VDC LED COB Tape Light Starter Kit

(No reviews yet) Write a Review

Model: T24-GE3-15-27KIT
From the Gemini Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$293.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting T24-GE3 Gemini 24VDC LED COB Tape Light Starter Kit

The WAC Lighting T24-GE3 Gemini 24VDC LED COB Tape Light Starter Kit is a complete, ready-to-install lighting system built around Gemini's dense LED COB tape with a single continuous phosphor coating that eliminates diode imaging for smooth, even illumination. This 24V DC kit is UL & cUL Damp Location listed, CEC Title 24 compliant, and ADA compliant, and supports seamless, scalable run lengths up to 24 feet on a single power supply. With an aluminum-based build, field-cuttable tape, and 3750 total lumens at 33W, Gemini delivers precision cove, accent, and task lighting for residential and commercial layered lighting projects.

Key Features

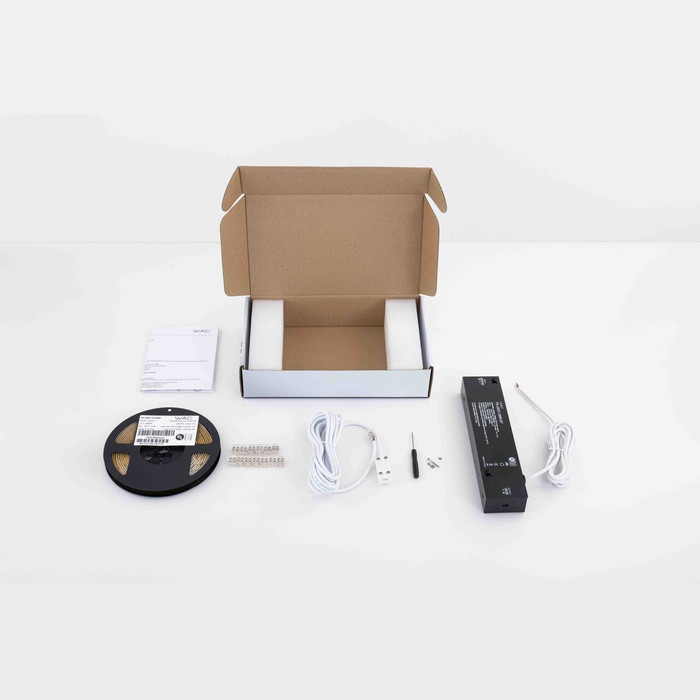

  • Complete Starter Kit: includes a 15FT reel of Gemini LED tape, a 96W remote driver, 3 tape-to-tape connectors, 3 tape-to-power connectors, and a 12FT extension cable, so everything needed to get started is in the box.
  • Scalable System: supports seamless, scalable run lengths up to 24 feet on a single power supply, with additional Gemini tape available separately for larger installations.
  • Field-Cuttable Design: Gemini LED tape can be cut in the field every 2in and re-connected with safe, secure connectors for flexible layouts.
  • Durable Construction: aluminum-based build supports a low-profile, flexible, and customizable tape light format.
  • Voltage & Driver: 24V DC output with driver input voltage of 120V-220V-277V AC and a driver rated up to a 288W max load for kit expansion.
  • Smooth Dimming: compatible with electronic low voltage (ELV), TRIAC, or 0-10V dimming (0-10V requires the PS-24DC-U power supply), installed on the primary side of the transformer.
  • Light Output: 3750 lumens at 33W total wattage with 90+ CRI, delivering smooth, robust illumination from evenly placed UV-coated LEDs.
  • Color Temperature Options: selectable from 2700K to 4000K, with this starter kit offered in 2700K, 3000K, or 3500K.

Certifications & Compliance

  • UL & cUL Listed for Damp Locations
  • IP20 Rated
  • CEC Title 24 Compliant
  • ADA Compliant

Technical Specifications

  • ADA Compliant: Yes
  • Bulb Base: LED Module
  • Bulb Shape: LED Module
  • Bulbs Included: Yes
  • Dimmable: ELV;TRIAC;0-10V
  • Energy Star: No
  • Hardwired or Portable: Plugin
  • Lumens: 3750
  • Number of Bulbs: 1
  • Product Type: LED Tape Lighting
  • Safety Rating: UL, cUL, IP20
  • Warranty: 5 Years Functional, 2 Years Finish
  • Subcategory: LED COB Tape Light
  • Avg Rated Hours: 50000
  • Beam Spread: 115
  • Voltage: 24
  • Material: Aluminum
  • Country of Origin: Thailand
  • Total Wattage: 33
  • Style: Functional
  • Mounting: Ceiling/Wall;Any

Typical Applications

  • Cove and Accent Lighting
  • Task Lighting
  • Layered Residential Lighting Systems
  • Commercial Interior Lighting
  • Damp Location Installations

Why WAC Lighting?

WAC Lighting's Gemini system pairs a durable, low-profile aluminum-based tape design with UL & cUL Damp Location listing, IP20 rating, and CEC Title 24 compliance for dependable, code-compliant performance. Backed by a 5-year functional and 2-year finish warranty, this starter kit gives professionals a reliable, field-cuttable foundation for scalable LED tape lighting installations.

Product Specs

ADA Compliant:
Yes
Bulb Base:
LED Module
Bulb Shape:
LED Module
Bulbs Included:
Yes
Collection:
Gemini
Dimmable:
ELV;TRIAC;0-10V
Energy Star:
No
Hardwired or Portable:
Plugin
Lumens:
3750
Number of Bulbs:
1
Product Type:
LED Tape Lighting
Safety Rating:
UL, cUL, IP20
Subcategory:
LED COB Tape Light
Avg Rated Hours:
50000
Beam Spread Angle:
115
Product Voltage:
24
Product Material:
Aluminum
Location Rating:
Damp
Total Wattage:
33
Product Style:
Functional
Mounting Method:
Ceiling/Wall;Any

WAC Lighting T24-GE3-15-27KIT – Frequently Asked Questions

1) What comes in the WAC Lighting T24-GE3 Gemini starter kit?
The Gemini T24-GE3 kit ships with a 15FT reel of Gemini LED COB tape, a 96W remote driver, 3 tape-to-tape connectors, 3 tape-to-power connectors, and a 12FT extension cable. That is enough to run and power a cove or under-cabinet job out of the box; extra Gemini tape is sold separately if the run is longer.
2) How long a run can I do off one driver with Gemini tape light?
Up to 24 feet on a single power supply. The kit itself includes a 15 foot reel, and the supplied driver is rated to a 288W max load, so you have headroom to add Gemini tape within that 24 foot limit. Past that you need a second supply and a separate home run.
3) Can Gemini COB tape be cut to length on site?
Yes, every 2 inches. Cut marks repeat at 2 inch intervals along the tape and the cut ends re-connect with the included tape-to-tape or tape-to-power connectors, so you can trim a cove to length without soldering.
4) Can I use this LED tape light in a bathroom or covered exterior soffit?
Damp locations, yes. The Gemini kit is UL and cUL Listed for damp locations, which covers a bathroom cove or a covered soffit. It is IP20 rated, so it is not sealed against direct water or washdown and should not go anywhere it will be sprayed or submerged.
5) What input voltage does the driver in this tape light kit take?
The remote driver accepts 120V, 220V, or 277V AC input and puts out 24V DC to the tape, so the same kit works on a residential 120V circuit or a 277V commercial lighting branch. The tape itself is strictly 24V DC; never land line voltage on it.
6) Which color temperatures does the T24-GE3 Gemini kit come in?
Three: 2700K, 3000K, and 3500K. Pick 2700K to match incandescent warmth in residential coves, 3000K for a common hospitality and millwork standard, and 3500K where the space is already on a neutral white scheme.
7) Does WAC Gemini tape light meet California Title 24?
Yes, the Gemini kit is CEC Title 24 compliant and also ADA compliant, which matters on commercial and multi-family work where fixtures in corridors and bathrooms have to stay within projection limits. It is not Energy Star listed.
8) How bright is the Gemini COB tape and will I see diode dots in a cove?
3750 total lumens at 33W, with 90+ CRI. Because it is a COB tape with a single continuous phosphor coating over dense LEDs rather than spaced individual diodes, you do not get the dotting or diode imaging you see from standard SMD tape in a shallow cove or behind a diffuser.
9) Is the WAC T24-GE3 hardwired or does it plug in?
It is configured as a plug-in kit with a remote driver and a 12FT extension cable, so you can locate the driver away from the tape and reach a receptacle inside a cabinet or above a ceiling. Mounting is flexible: the low-profile aluminum-based tape goes on ceiling, wall, or any orientation the detail calls for.
10) What beam spread does Gemini COB tape give, and how close can it sit to the surface it washes?
115 degrees. That wide spread is why COB tape works in a shallow cove or a tight under-cabinet reveal: the light fills out quickly, so you get an even wash without needing much setback from the face you are lighting. Rated life is 50,000 hours.
