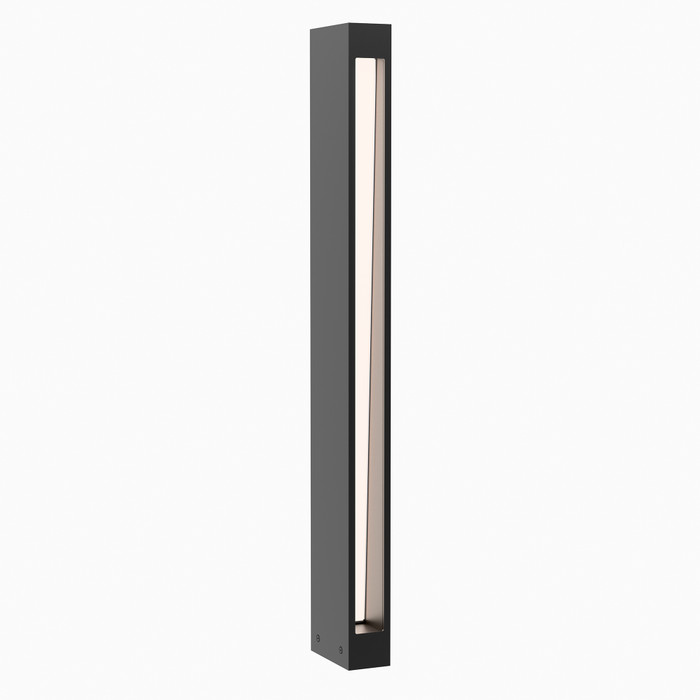

WAC Lighting 6141-5CS Hilyne 5-CCT LED 12V Path and Area Light, Die-Cast Aluminum
The WAC Lighting Hilyne 6141-5CS is a sleek, architectural 12V path and area light built for modern outdoor landscapes. Constructed from corrosion-resistant die-cast aluminum alloy with an enamel coated finish, it delivers soft, indirect illumination with 5-CCT selectable color temperature (2700-3000-3500-4000-5000K), 90 CRI, and an IP66 wet-location rating, making it a versatile fit for upscale residential, hospitality, and commercial outdoor spaces.
Key Features
- 5-CCT Selectable: Integrated CCT selectable knob lets you dial in 2700K, 3000K, 3500K, 4000K, or 5000K to match the mood of any outdoor setting.
- Durable Construction: Corrosion-resistant die-cast aluminum alloy housing with an enamel coated finish for long-term outdoor durability.
- 12V Landscape Compatible: Taps into existing 12V landscape lighting applications; a magnetic or electronic power supply (sold separately) is required for 12V fixtures.
- High-Powered LED Engine: Input 9-15V AC, Power 6.5W (9.5VA), Brightness up to 195 Lm, CRI 90, and Rated Hours of 50,000 for accurate color rendering and long service life.
- IP66 Wet-Location Rated: UL & cUL 1838 standards compliant and IP66 rated for wet locations, standing up to rain, irrigation, and direct exposure.
- Frosted Glass Lens: A frosted glass lens diffuses output for soft, even, glare-free illumination along pathways.
- Finish: Enamel coated finish resists fading and corrosion in outdoor environments.
Certifications & Compliance
- UL Listed
- cUL Listed
- IP66 Rated for Wet Locations
- UL 1838 Standard Compliance
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Collection: Hilyne
- Dimmable: MLV
- Energy Star: No
- Hardwired or Portable: Hardwired
- Number of Bulbs: 1
- Product Type: Path Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Frosted Glass Lens
- Warranty: 10 Years Functional, 2 Years Finish
- Avg Rated Hours: 50000
- Beam Spread: 80
- Voltage: 12
- Material: Die-cast aluminum
- Country of Origin: Thailand
- Location Rating: Wet
- Total Wattage: 6.5
Typical Applications
- Residential Landscape Pathways
- Hospitality Outdoor Walkways
- Commercial Outdoor Lighting Design
- Garden and Patio Illumination
- Wet and Damp Outdoor Locations
Why WAC Lighting?
WAC Lighting builds the Hilyne 6141-5CS around a corrosion-resistant die-cast aluminum housing, UL & cUL 1838 compliance, and an IP66 wet-location rating, giving professionals a reliable, code-conscious fixture for demanding outdoor installations. Backed by a 10-year functional and 2-year finish warranty, it is engineered for consistent, long-term performance in landscape and pathway lighting projects.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Hilyne
- Dimmable:
- MLV
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Number of Bulbs:
- 1
- Product Type:
- Path Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Frosted Glass Lens
- Subcategory:
- Path and Area Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 80
- Product Voltage:
- 12
- Product Material:
- Die-cast aluminum
- Location Rating:
- Wet
- Total Wattage:
- 6.5
- Light Temperature:
- 2700-3000-3500-4000-5000
- Product Style:
- Modern
- Department:
- Electrical
WAC Lighting 6141-5CSBK – Frequently Asked Questions
1) Can the WAC Hilyne 6141-5CS path light run off my existing 12V landscape transformer?
Yes. The Hilyne 6141-5CS is a 12V fixture that accepts 9 to 15V AC input, so it taps into an existing low-voltage landscape run. It is hardwired, not plug-in, and a magnetic or electronic power supply is required and sold separately. At 6.5W (9.5VA) per fixture, you can budget transformer capacity accordingly.
2) How do I set the color temperature on the Hilyne 5-CCT path light, and do I have to choose it when ordering?
No ordering decision needed on color. The 6141-5CS has an integrated CCT selectable knob on the fixture, so you pick 2700K, 3000K, 3500K, 4000K or 5000K at install. One SKU covers all five, which is why it works well when you're standardizing a property and may want warmer light at entries and cooler at parking or service paths.
3) Will the WAC Hilyne path light survive sprinklers and standing rain?
It's built for it. The Hilyne 6141-5CS carries a Wet location rating and IP66, so direct rain and irrigation spray are within spec. The housing is corrosion-resistant die-cast aluminum with an enamel coated finish, and the fixture is UL and cUL Listed to the UL 1838 low-voltage landscape standard.
4) Will the Hilyne 6141-5CS dim on my landscape lighting dimmer?
It is dimmable on MLV (magnetic low voltage) control. That means the dimmer has to be on the line side of a magnetic transformer feeding the fixture; it is not a line-voltage ELV or TRIAC load on its own. If your system uses an electronic power supply, confirm the supply's own dimming protocol drives the 12V output.
5) How much light does one Hilyne path light put out, and how far apart should they go?
Each 6141-5CS delivers up to 195 lumens from 6.5W with an 80 degree beam spread and a frosted glass lens that diffuses the output. That's a soft, glare-free wash rather than a punchy flood, so it's suited to close-spaced path runs and low-level area light rather than lighting a wide area from a few poles. CRI is 90, so planting and hardscape color reads accurately.
6) Do I need to buy lamps for the WAC Hilyne path light, and can the LED be replaced later?
No lamps to buy. The Hilyne 6141-5CS ships with its single integrated LED module (transformer-type LED module, not a socketed bulb), rated at 50,000 hours. Since the engine is integral, maintenance planning should treat the fixture as the replaceable unit rather than stocking spare lamps.
7) What finishes does the WAC Hilyne 6141-5CS come in for matching existing site hardware?
Two finishes: Black and Bronze, both enamel coated over the die-cast aluminum body. Bronze is the usual match for existing landscape fixtures and dark bronze railings; Black suits modern architectural sites. Styling is modern and linear, so it reads as architectural rather than traditional mushroom-style path lighting.
8) Is the Hilyne 6141-5CS Energy Star certified for a rebate submission?
The Hilyne 6141-5CS is not Energy Star rated. Its listings are UL, cUL and IP66. If a project requires Energy Star documentation for a utility rebate, this fixture won't satisfy it, though at 6.5W it's a low connected load for a path light.
