Modern Forms FR-W2001-52 Renegade 8-Blade Ceiling Fan
A transcendental experience awaits. Enlighten any room or living space with this smart fan, powered by a DC motor that runs smoothly and quietly. For unprecedented control, connect with our exclusive Modern Forms app to create schedules, integrate with smart home devices, and more. An energy efficient LED luminaire powered by WAC Lighting rounds out the design.- Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
- Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs.
- Battery operated Bluetooth remote control with wall cradle included (Part No. F-RCBT-WT). Optional Bluetooth hardwired wall control sold separately (Part No. F-WCBT-WT) and can be set-up as 3 or 4 way switches when you purchase more than one. Can be controlled through an Android or iOS wall mounted tablet with Wi-fi.
- Modern Forms Fans are made with incredibly efficient and completely silent DC motors and are up to 70% more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
- Replaceable LED luminaire powered by WAC Lighting, features smooth and continuous brightness control. Available in 2700K, 3000K, and 3500K options, order accordingly.
- ETL, cETL, UL, cUL, CSA CAN Wet Location Listed for indoor or outdoor applications. Can be installed on slope ceilings up to a 30 degree slope (XF-SCK Slope Ceiling Kit available for slopes 32-45 Degrees). Downrods sold separately for longer lengths.
Manufacturer Resources
Product Specs
- ADA Compliant:
- No
- Avg Rated Hours:
- 100000
- Bulb Base:
- Integrated LED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- CRI:
- 85
- Collection:
- Exterminator II
- Complete System:
- No
- Dimmable:
- Yes
- Energy Star:
- Yes
- Hardwired or Portable:
- Portable
- Location Rating:
- Dry
- Lumens:
- 2476
- Number of Bulbs:
- 1
- Product Type:
- L Track Fixture
- Safety Rating:
- ETL, cETL
- Shade/Glass Description:
- Clear Glass Lens
- Subcategory:
- LED Low Voltage
- Total Wattage:
- 35
- Base Material:
- Aluminum
- Location Indoor/ Outdoor:
- Interior
- Max Height:
- 6.39"
- Reversible Mounting:
- Yes
- Shade Material:
- Glass
- Title 24 Compliant:
- No
- Bulb Type:
- LED
- Segment:
- Lighting
- SORTME:
- 1288
- Product Voltage:
- 120
- Product Length:
- 5.25"
- Beam Spread Angle:
- 55
- Light Temperature:
- 2700
- Product Diameter:
- 3.39"
- Product Style:
- Modern
- Product Height:
- 6.39"
- Product Category:
- Track Lighting
- Product Width:
- 5.25"
- Product Wattage:
- 35
WAC Lighting WAC-LED1035 – Frequently Asked Questions

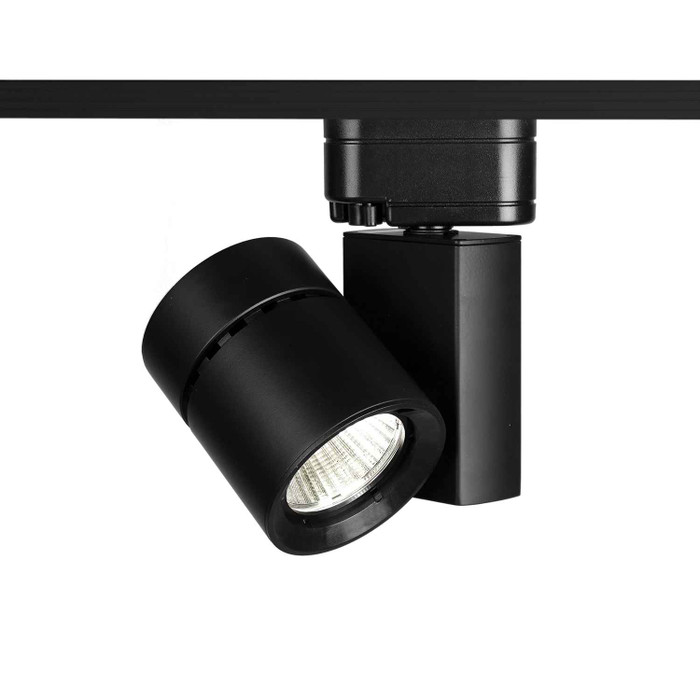

1) Will the WAC Lighting LED1035 Exterminator II track head fit my existing track, and what track type does it take?
The LED1035 Exterminator II is an L track fixture, so it mounts to L-style track only. It will not seat in J or H track. It runs on 120V line voltage track.
2) Do I need to buy a bulb for the LED1035 Exterminator II track head?
No separate lamp to buy. It's an integrated LED module, one light source, supplied with the fixture and rated at 100,000 average hours. There's no socket, so when the module reaches end of life the head is replaced rather than relamped.
3) Can I use the LED1035 track head outdoors or in a covered patio?
No. The Exterminator II LED1035 is an interior fixture with a dry location rating only. Keep it out of bathrooms with open showers, covered exterior soffits, and any damp or wet location, and specify a damp or wet rated head for those spots.
4) What color temperatures and CRI options does the Exterminator II LED1035 come in?
Four color temperatures: 2700K, 3000K, 3500K and 4000K. CRI is offered at 85 or 90. For gallery, retail apparel, or anywhere color rendering is judged by eye, take the 90 CRI. If you're adding heads to an existing run, match the Kelvin of what's already installed or the difference will show on the wall.
5) Which beam spread should I order for retail display versus general room lighting?
The Exterminator II LED1035 comes in a 25 degree and a 55 degree beam. The 25 degree is the accent option for punching light onto artwork, merchandise, or a display case from a high ceiling. The 55 degree flood covers wall washing and broader task or general lighting where you want overlap between heads.
6) How much light does the LED1035 Exterminator II put out and what does it draw?
2,476 lumens from 35 watts at 120V. That's the output a spec writer uses to work out head spacing on a run, and the 35W figure is the total connected load per head for sizing the circuit and the transformer-free 120V track feed.
7) Is the LED1035 track head dimmable, and does it qualify for energy rebates?
Dimming is supported, and the fixture is Energy Star qualified. Note it is not Title 24 compliant, so for California nonresidential and residential work under Title 24 it will not satisfy that requirement on its own.
8) What finishes does the Exterminator II track head come in for matching the rest of a track run?
Black, Brushed Nickel, and White. For a fleet of units or a multi-floor build, white disappears against a white ceiling, black reads least on exposed-structure and retail ceilings, and brushed nickel matches nickel trim packages.
9) What is the LED1035 Exterminator II head built from, and what is the lens?
Aluminum body with a clear glass lens. Aluminum handles the heat sinking an integrated LED module needs, and the clear lens keeps the beam tight rather than diffusing it, which is why the 25 degree version holds a defined edge on a display.
