WAC Lighting LED160 Precision ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$213.95
WAC Lighting LED160 Precision LED Energy Star Track Head H Track Fixture

WAC Lighting LED160 Precision LED Energy Star Track Head H Track Fixture

(No reviews yet) Write a Review

Model: WAC-HLED160
From the Precision Collection
$213.95
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$213.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms PD-58257 Tidal LED Linear Pendant

A unique twist on decorative modern lighting. Generous proportions and meticulous attention to detail make this floating sculpture a must-have for any interior. Each free formed handcrafted piece lends slight variations in size and curvature.
  • Free formed and hand crafted bent aluminum body with silica diffuser creates unique variations in shape and generous ambient light.
  • Tidal is damp location listed - can be used indoor or in a covered damp area. Ultra-sleek electrified cables eliminate the need for clunky power wires. Height is simple to adjustable with 120in of cable through push pin connectors at the canopy. Longer lengths can be special ordered.
  • Universal Input Voltage Driver (120V-240V-277V) concealed in fixture.
  • Smooth and continuous dimming with an electronic low voltage (ELV), 0-10V, or TRIAC dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations. CEC Title 24 Compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
70000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Precision
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
975
Number of Bulbs:
1
Product Type:
H Track Fixture
Safety Rating:
UL, cUL
Subcategory:
LED Low Voltage
Total Wattage:
14.5
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
5.56"
Reversible Mounting:
Yes
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1361
Product Voltage:
120
Product Length:
2.25"
Beam Spread Angle:
40
Light Temperature:
2700
Product Diameter:
2.25"
Product Style:
Modern
Product Height:
5.56"
Product Category:
Track Lighting
Product Width:
5.31"
Product Wattage:
14.5

WAC Lighting WAC-HLED160 – Frequently Asked Questions

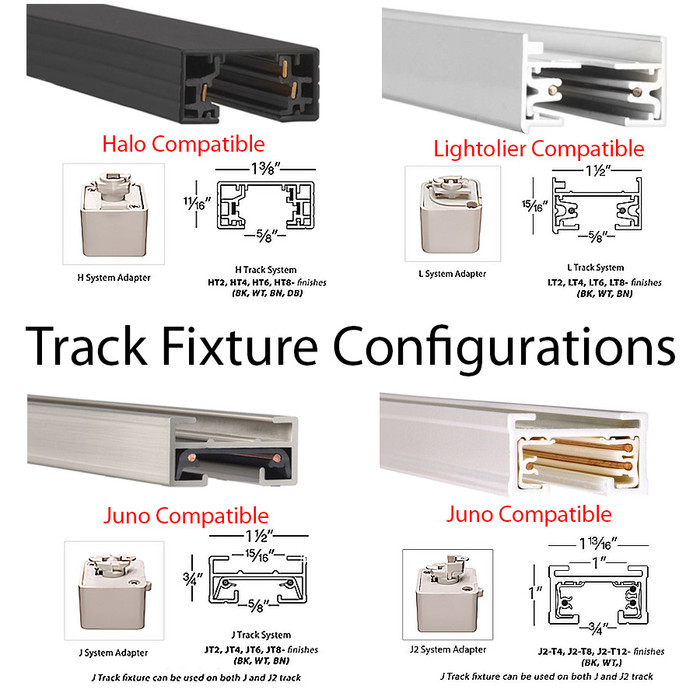

1) Will the WAC Lighting LED160 Precision track head fit my existing track, or do I need H-system track?
The LED160 Precision head is built with an H-track adapter, so it only mounts to H-system (Halo-compatible) track. It will not snap into J or L system track. Every part number on the family starts with the H- prefix, for example H-LED160S-930-BK. If your ceiling runs J or L track, you need the matching version of the head for that system.
2) What beam angles does the WAC LED160 track head come in, and which one should I use for artwork versus general room light?
Two beams: a 20 degree spot and a 40 degree flood. The spot (S in the part number, like H-LED160S-30-WT) is the one for artwork, merchandise displays and accenting a single object from a distance. The 40 degree flood (F, like H-LED160F-30-WT) spreads wide enough to wash a wall or light a seating area without heavy scallops.
3) Can I use the WAC LED160 track head in a covered patio, bathroom or kitchen over a range?
No. The LED160 is dry location rated and listed for interior use only. Keep it out of covered outdoor areas, shower zones and anywhere it sees steam or condensation. Those spots need a damp or wet location rated head instead.
4) Is the WAC LED160 track head dimmable, and does it need a special dimmer?
It dims. The head runs on a 120V integrated LED driver, so pair it with a dimmer rated for LED loads and size the dimmer to the total connected wattage on the circuit, 14.5W per head. Standard incandescent dimmers will often buzz or drop out at the low end with a load this small.
5) How big is the WAC LED160 track head and how far does it hang below the track?
The head measures 5.56 inches in height, 5.31 inches in width and 2.25 inches in length, with a 2.25 inch diameter body. Max height is the same 5.56 inches, so allow roughly that much drop below the track when you are checking clearance against cabinets, shelving or sightlines.
6) Is the WAC LED160 track head Energy Star rated, and does it meet California Title 24?
Energy Star qualified, and listed UL and cUL for the US and Canada. It is not a Title 24 compliant fixture, so if you are on a California residential job with a high-efficacy requirement, verify the head qualifies under your compliance path before you spec it.
7) What finishes does the WAC LED160 Precision track head come in for matching the rest of my track?
Black and white are the two finishes across the whole LED160 Precision range, in both beam angles and both CRI grades. White disappears into a white ceiling and black reads cleaner over dark track or in a gallery setting. Match the finish to the track itself, not just the ceiling.
8) Can the WAC LED160 track head be aimed straight down and also up at a wall?
Yes, it takes reversible mounting, so the head can be turned and aimed rather than locked into one orientation. Combined with the 20 degree spot or 40 degree flood optic, that lets you wall-wash, uplight a feature, or drop a tight beam onto a display case off the same track run.
9) What is the housing made of on the WAC LED160 track head?
Aluminum body. That matters for an integrated LED head, since the housing is doing the heat sinking for the module, and it is what supports the 70,000 hour rated life in enclosed retail and gallery ceilings.
