WAC Lighting LED160 Precision ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$213.95

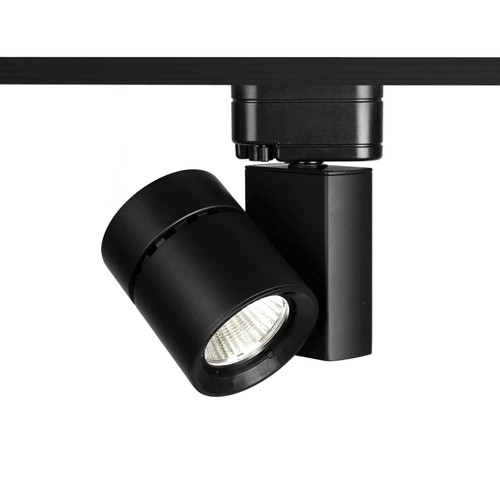

WAC Lighting LED160 Precision LED Energy Star Track Head L Track Fixture

WAC Lighting LED160 Precision LED Energy Star Track Head L Track Fixture

(No reviews yet) Write a Review

Model: WAC-LLED160
From the Precision Collection
$213.95
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$213.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-W73614 Framed LED Indoor or Outdoor Wall Light

A weather-resistant bronze or graphite finished frame houses a clean box of light on this elegant, understated addition to your home, hotel, office or restaurant. The lines of the frame extend downward to accentuate the height of your walls and enhance the architectural sensibility. Framed is a versatile design with a minimalist attitude and plenty of cutting-edge LED technology.
  • Solid Die-Cast Aluminum construction, with white mitered cut silk-screened glass and high powered dimmable LED's.
  • CEC Title 24, and low profile ADA compliant. Can be mounted on a wall or ceiling.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. 277V, 240V, or custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 54,000, Color Temp: 3000K
  • Standards: ETL, cETL & IP65 UL 1598 listed for wet locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
70000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Precision
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
975
Number of Bulbs:
1
Product Type:
L Track Fixture
Safety Rating:
UL, cUL
Subcategory:
LED Low Voltage
Total Wattage:
14.5
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
5.56"
Reversible Mounting:
Yes
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1373
Product Voltage:
120
Product Length:
2.25"
Beam Spread Angle:
40
Light Temperature:
2700
Product Diameter:
2.25"
Product Style:
Modern
Product Height:
5.56"
Product Category:
Track Lighting
Product Width:
5.31"
Product Wattage:
14.5

WAC Lighting WAC-LLED160 – Frequently Asked Questions

1) Will the WAC Lighting LED160 Precision track head fit my Halo or Juno track?
No. The LED160 Precision head is built with an L Track connector, which is WAC Lighting's own L Series track profile. It will not seat in a Halo (H), Juno (J) or Lightolier track. If your existing runs are H or J profile, order the matching H or J version of the Precision head instead of this one.
2) Can I use this WAC track head outdoors or in a covered exterior walkway?
Interior only. The Precision LED160 head carries a Dry location rating, so it cannot go outside, in a covered walkway, or anywhere it sees moisture, including a bathroom over a tub or shower. For a canopy, breezeway or exterior soffit you need a fixture rated wet or damp.
3) What is the difference between the 20 degree and 40 degree beam on the WAC LED160 head?
Two beam options: a 20 degree spot and a 40 degree flood, both putting out 975 lumens at 14.5 watts. Use the 20 degree for accent work, artwork, merchandise on a shelf, or high ceilings where you want the light to stay in a tight pool. Use the 40 degree to wash a wall or cover more area per head, which usually means fewer heads on the run. The part number tells you which: L-LED160S is the 20 degree spot, L-LED160F is the 40 degree flood.
4) Does buying the WAC LED160 head get me a working track run, or do I need more parts?
The head alone is not a system. It ships as a fixture only, so you still need L Series track sections, a power feed or end feed, connectors, and end caps to complete the run. Budget those separately when you are pricing out a job.
5) Which color temperature should I order for the WAC LED160 track head?
Four choices: 2700K, 3000K, 3500K and 4000K. 2700K is the warm, incandescent-looking light most hospitality and residential lobbies run. 3000K is the usual commercial retail and gallery standard. 3500K reads neutral and is common in offices. 4000K is the coolest of the four and gets used where you want a crisp, task-lit look. If you are adding heads to an existing run, match the Kelvin already installed or the mismatch will be obvious on the wall.
6) Does the WAC Precision LED160 meet California Title 24 or ADA requirements?
The Precision LED160 head is not Title 24 compliant and is not ADA compliant. On a California job under Title 24 you will need a fixture that carries that listing, and where the fixture projects into a required clearance you need an ADA compliant unit instead.
7) Do I have to order lamps separately for the WAC Precision LED160 track head?
Nothing to add. The LED module is integrated and included, one per head, so there is no lamp to buy and none to change out later. Rated life is 70,000 hours, which is why these get specified in stairwells and high ceilings where relamping means a lift.
8) Will the WAC Precision LED160 dim on the dimmers already in my building?
The head is dimmable and runs on 120V line voltage at 14.5 watts. Because the load per head is small, watch your total connected load against the dimmer's minimum: a short run of two or three heads may sit below what a standard dimmer wants to see and will flicker or drop out at the bottom of the range. Use an LED-rated dimmer and confirm the head count on the circuit.
9) How much space does the WAC Precision LED160 head need below the track?
The head measures 5.56 inches in height, 5.31 inches in width and 2.25 inches in length, with a 2.25 inch diameter body. Add the track height to that 5.56 inches when you are checking clearance under a low soffit or working out how far the head will hang into a display case opening.
10) Is the WAC Precision LED160 track head Energy Star listed?
Energy Star qualified, and safety listed UL and cUL for use in the US and Canada. That covers utility rebate paperwork and Canadian inspection on the same part number.
11) What finishes does the WAC LED160 Precision track head come in?
Black and White, and every beam, CRI and color temperature combination is offered in both. The housing is aluminum. On a white ceiling with white track, the white head disappears; black is the pick when you want the fixture to read as a deliberate element or when it is mounted against a dark ceiling in a restaurant or gallery.
12) Can the WAC LED160 head be aimed once it is on the track?
Yes, and it also mounts reversible, so the head can be oriented either way on the track to aim in the direction the job needs. That flexibility is the reason track gets used over fixed downlights in galleries and retail, where the merchandise moves and the aiming has to move with it.
