WAC Lighting LED2020 Silo X20 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$199.95

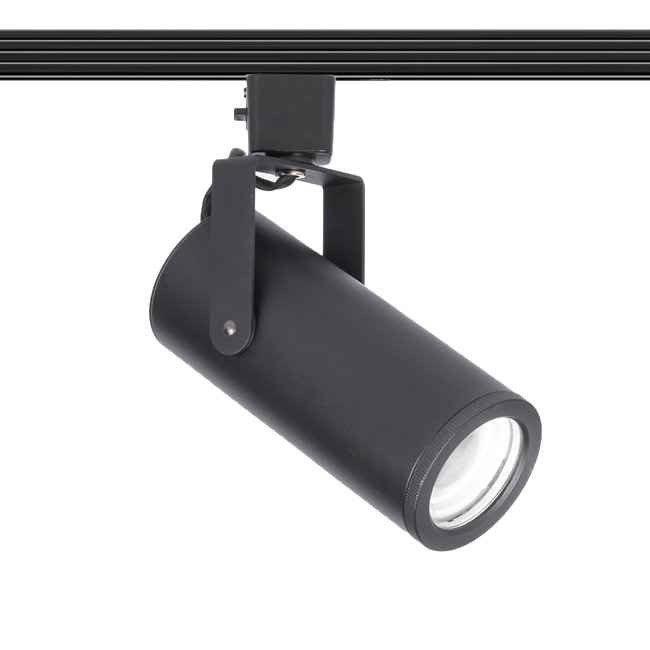

WAC Lighting LED2020 Silo X20 Beamshift Track Head H Track Fixture

WAC Lighting LED2020 Silo X20 Beamshift Track Head H Track Fixture

(No reviews yet) Write a Review

Model: WAC-HLED2020
From the Silo Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$199.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-82310 Rowlings LED Wall Sconce

Alluring alabaster pairs with the intrigue of bold tones to mesmerize. Soft illumination highlights the nuances of the stone and casts warm reflections from the circular plates, creating an artful visual.
  • Featuring first class quality natural Spanish alabaster with unique veining in each crafted piece.
  • Can be mounted vertically in either up or down orientation
  • Universal Input Voltage Driver (120V-240V-277V) concealed in fixture.
  • Smooth and continuous dimming with an electronic low voltage 0-10V or TRIAC dimmer
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 54,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations. CEC Title 24 Compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
60000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
90
Collection:
Silo
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
1226
Number of Bulbs:
1
Product Type:
H Track Fixture
Safety Rating:
ETL, cETL
Shade/Glass Description:
Acrylic Diffuser
Subcategory:
LED Low Voltage
Total Wattage:
20
Base Material:
Die Cast Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
5"
Reversible Mounting:
Yes
Shade Material:
Acrylic
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
SORTME:
1367
Product Voltage:
120
Product Length:
6"
Beam Spread Angle:
15-50
Light Temperature:
3000
Product Diameter:
2.69"
Product Style:
Modern
Product Height:
7.69"
Product Category:
Track Lighting
Product Width:
2.69"
Product Wattage:
20

WAC Lighting WAC-HLED2020 – Frequently Asked Questions

1) Will the WAC Silo X20 track head fit my existing H-type track?
Yes, the Silo X20 LED2020 is built as an H track fixture, so it drops onto standard H-system (three-circuit H-style) track. It runs on 120V line voltage off the track, so no separate transformer is needed at the head.
2) Does the WAC Silo X20 Beamshift head let you change the beam angle without swapping lenses?
That's the point of the Beamshift design. The head adjusts across a 15 to 50 degree beam spread, so one fixture covers everything from a tight accent on artwork to a wash over a retail display or millwork run. No lens kits to stock or change out.
3) Is this WAC track head rated for a covered exterior walkway or a bathroom?
No. The Silo X20 is a dry location, interior-rated fixture only. Damp areas like covered exteriors, open breezeways, or shower-adjacent bath zones need a damp-rated head instead. Safety listing is ETL and cETL.
4) Does the Silo X20 track head meet California Title 24?
Yes, it is Title 24 compliant and Energy Star qualified, which covers the two boxes most commonly checked on California commercial and multi-family lighting submittals.
5) Is the track and power feed included with the Silo X20 head?
No. The Silo X20 is sold as a head only, not a complete system. You'll need the H-style track sections, connectors, end caps, and a power feed or canopy ordered separately to finish the run.
6) How much light does a 20W Silo X20 track head put out, and what color?
1226 lumens from a 20-watt integrated LED at 3000K warm white, with a CRI of 90. At 90 CRI it's suitable for merchandise, gallery, and hospitality work where color rendering gets judged by eye. Rated life is 60,000 hours.
7) Do I need to buy lamps separately for the Silo X20 track head?
No lamps to buy. The LED module is integrated and included, one per head. There is no socket or bulb base, so there's nothing to relamp over the life of the fixture. Plan for an acrylic diffuser over the LED as the optical element.
8) Can the Silo X20 be dimmed on an existing dimmer circuit?
The head is dimmable. Dimming happens at the track circuit, so the control has to be matched to the driver feeding the run, not to the individual head. Spec the dimmer with the track power feed and confirm the fixture count on the circuit.
9) What finishes does the WAC Silo X20 come in for matching other heads in a building?
Four finishes, all at 20W: Black (H-2020-930-BK), White (H-2020-930-WT), Brushed Nickel (H-2020-930-BN), and Brushed Brass (H-2020-930-BR). Black and white are the usual picks for blending into ceilings or track; the nickel and brass are for where the head is meant to be seen.
10) How big is the Silo X20 head and how far does it hang below the track?
Compact cylinder: 2.69 inches in diameter, 6 inches long, with an overall product height of 7.69 inches and a maximum height of 5 inches at the head. Useful to know on low ceilings or where the heads sit near sightlines in a retail or lobby space.
11) What is the Silo X20 track head body made of?
Die cast aluminum body with an acrylic shade. Die cast aluminum doubles as the heat sink for the LED module, which is what supports the 60,000 hour rated life in continuous retail or gallery use.
