WAC Lighting LED2020 Silo X20 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$199.95

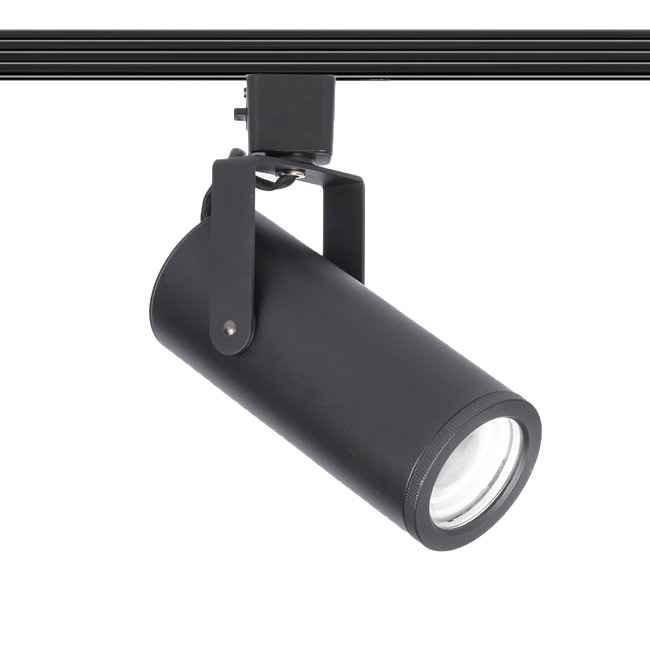

WAC Lighting LED2020 Silo X20 Beamshift Track Head J Track Fixture

WAC Lighting LED2020 Silo X20 Beamshift Track Head J Track Fixture

(No reviews yet) Write a Review

Model: WAC-JLED2020
From the Silo Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$199.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-65023 Ember LED Wall Sconce

Alluring with aged brass or antique nickel finishes and fine reclaimed shards of optical crystal throwing sparkles in all directions. Stunning as an ADA qualified wall sconce for corridors or on either side of a mirror in a luxury bath. Energy efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination throughout any space.
  • K5 glass shards wrapped in acrylic, with minimally exposed hardware.
  • Can be mounted vertically or horizontally.
  • Universal Input Voltage Driver (120V-240V-277V) located in junction box.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 56,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations, ADA Compliant, Title 24 Compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
60000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
90
Collection:
Silo
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
1226
Number of Bulbs:
1
Product Type:
J Track Fixture
Safety Rating:
ETL, cETL
Shade/Glass Description:
Acrylic Diffuser
Subcategory:
LED Low Voltage
Total Wattage:
20
Base Material:
Die Cast Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
5"
Reversible Mounting:
Yes
Shade Material:
Acrylic
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
SORTME:
1342
Product Voltage:
120
Product Length:
6"
Beam Spread Angle:
15-50
Light Temperature:
3000
Product Diameter:
2.69"
Product Style:
Modern
Product Height:
7.69"
Product Category:
Track Lighting
Product Width:
2.69"
Product Wattage:
20

WAC Lighting WAC-JLED2020 – Frequently Asked Questions

1) What does the Beamshift feature on the WAC Silo X20 actually do?
The beam spread adjusts at the fixture from 15 to 50 degrees, so one head covers everything from a tight accent on a piece of art to a wide wash on a display or retail shelf. That means you can stock one part number for a whole room and tune each head after it is on the track, instead of ordering separate spot and flood optics.
2) Can I replace the bulb in the WAC Silo X20 track head when it burns out?
No. The light source is an integrated LED module, not a lamp in a socket, so there is nothing to relamp. It is rated at an average 60,000 hours, which for a retail space running 12 hours a day is well over a decade before output degradation becomes a maintenance issue. Plan replacement at the head level, not the lamp level.
3) Can the WAC Silo X20 be used in a covered exterior soffit or a bathroom?
No. The Silo X20 track head carries a dry location rating and is listed for interior use, so keep it out of bathrooms with shower exposure, covered patios, and unconditioned spaces. For those you need a damp or wet rated fixture instead.
4) Do I get the track and power feed with the WAC Silo X20 head, or do I have to order those separately?
Just the head. The LED module is included, but the track sections, the power feed or live end, the connectors, and the end caps all have to be ordered separately as J track components. Count your heads against the circuit capacity at 20 watts each before sizing the feed.
5) Is the WAC Silo X20 track head dimmable, and what kind of dimmer do I need?
Yes, the X20 head dims. It runs on 120V track, so the dimmer goes on the track circuit rather than at the fixture. Use a dimmer rated for LED loads and confirm the minimum load works with the number of 20 watt heads on the run, because a small count of low-wattage heads is the usual cause of flicker or drop-out on a legacy incandescent dimmer.
6) Does the WAC Silo X20 track head meet California Title 24?
Yes, the X20 head is Title 24 compliant and Energy Star qualified, which covers the fixture side of a California lighting submittal. It is ETL and cETL safety listed for the US and Canada. Note it is not ADA compliant, so it is not the right choice where a projecting fixture sits in a protruding-object zone.
7) What finishes does the WAC Silo X20 come in so I can match the rest of my track run?
Four finishes on the 20 watt head: black (J-2020-930-BK), white (J-2020-930-WT), brushed nickel (J-2020-930-BN), and brushed brass (J-2020-930-BR). Order the track and connectors in the matching finish, since the head ships as a fixture only and is not a complete track system.
8) How much does the WAC Silo X20 head hang down off the track, and how wide is the body?
The cylinder is 2.69 inches in diameter with an overall product height of 7.69 inches and a length of 6 inches; maximum height with the head adjusted is listed at 5 inches. In a low ceiling or a tight soffit, that drop is what to check against your clearance before committing to a surface track run.
9) Is the WAC Silo X20 track head durable enough for a commercial retail or gallery install?
The housing is die cast aluminum, which is the standard body material for commercial track heads and gives the mass needed to sink heat off a 20 watt LED module. The lens is an acrylic diffuser. Mounting is reversible, which helps when a head has to aim back along the track rather than away from the feed.
