WAC Lighting LED3020 Wall Wash...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$179.95
WAC Lighting LED3020 Wall Wash Track Head J Track Fixture

WAC Lighting LED3020 Wall Wash Track Head J Track Fixture

(No reviews yet) Write a Review

Model: WAC-JLED3020
From the Wall Wash Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$179.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-66016 Fury LED Wall Sconce

An elegant triptych combining energy efficiency with lustrous metal finishes and gold encased art glass panes. Soft and even illumination from an innovative design only made possible with the latest in LED technology. Energy efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination throughout any space.
  • Molded gold and clear glass shards from handmade recycled glass
  • Mount vertically or horizontally, CEC Title 24 compliant, and low profile ADA compliant.
  • Universal Input Voltage Driver (120V-240V-277V) concealed in fixture.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
60000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
90
Collection:
Wall Wash
Complete System:
No
Dimmable:
Yes
Energy Star:
Yes
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
1232
Number of Bulbs:
1
Product Type:
J Track Fixture
Safety Rating:
ETL, cETL
Shade/Glass Description:
Glass Diffuser
Subcategory:
LED Low Voltage
Total Wattage:
20
Base Material:
Die Cast Aluminum
Location Indoor/ Outdoor:
Interior
Reversible Mounting:
Yes
Shade Material:
Glass
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
SORTME:
1346
Product Voltage:
120
Product Length:
3.4"
Beam Spread Angle:
Flood
Light Temperature:
3000
Product Style:
Modern
Product Height:
7"
Product Category:
Track Lighting
Product Width:
3.63"
Product Wattage:
20

WAC Lighting WAC-JLED3020 – Frequently Asked Questions

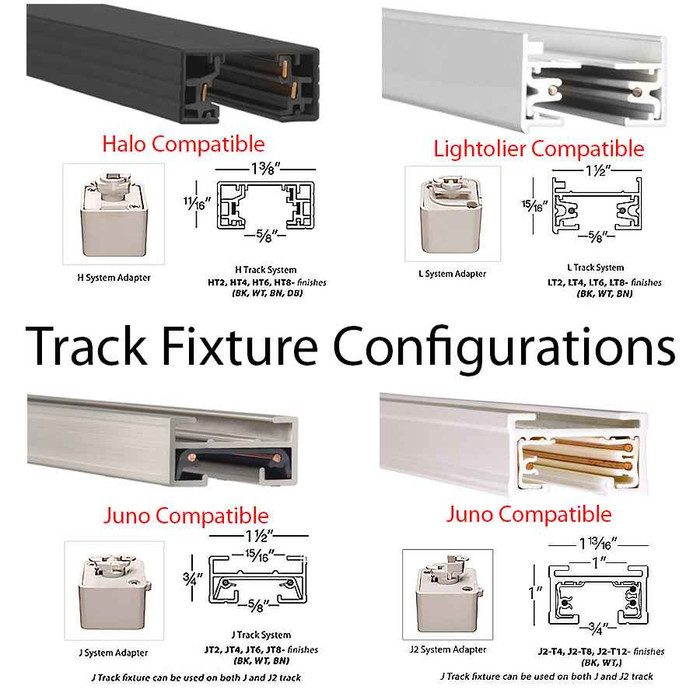

1) Will the WAC Lighting LED3020 wall wash head fit a standard J-type track?
Yes. The LED3020 is built as a J track fixture, so it mounts to J-type (three-circuit style) track systems. It is a head only, not a complete system, so you supply the track section, power feed, and end caps separately.
2) Can the WAC LED3020 wall wash head be used outdoors or in a covered patio?
No. It is rated for dry interior locations only, so keep it out of covered exterior areas, bathrooms with steam exposure, and anywhere damp-rated hardware is required. For those spaces you need a damp or wet listed fixture instead.
3) Does the WAC LED3020 track head meet California Title 24 and Energy Star?
Both. The LED3020 is Title 24 compliant and Energy Star qualified, and it carries ETL and cETL safety listings for US and Canadian jobs. It is not ADA compliant, so it should not be specified where a protruding-object limit applies on a wall.
4) How much light does the WAC LED3020 track head put out, and at what color temperature?
1,232 lumens from a 20W integrated LED module at 3000K, with a CRI of 90. The beam is a flood distribution behind a glass diffuser, which is what makes it a wall wash head rather than a spot. Rated life is 60,000 hours.
5) Is the WAC LED3020 track head dimmable, and what voltage does it run on?
It dims, and it runs on 120V line voltage. Pair it with a dimmer rated for LED loads; at 20W per head the total connected wattage on the circuit is low, so check the dimmer's minimum load if you are only running one or two heads.
6) What finishes does the WAC LED3020 wall wash head come in?
Two: black (J-3020W-30-BK) and white (J-3020W-30-WT), both 20W and 3000K. White generally disappears against a white ceiling and track; black reads as an accent. Pick the one matching your existing track run, since the head body is die cast aluminum and finish is not field changeable.
7) How much clearance below the ceiling does the LED3020 track head need?
The head measures 7 inches high, 3.63 inches wide, and 3.4 inches in length, so allow roughly 7 inches of drop below the track for the head itself. That matters in low-ceiling retail or residential galleries where heads can enter head-strike range.
8) Is the LED3020 a spot head or a wall washer for artwork and merchandise walls?
It is a wall washer. The flood beam through a glass diffuser spreads light evenly across a vertical surface, which is what you want for graphics walls, millwork, and gallery hangs. If you need a tight pool of light on a single object or a display case, use a narrow spot or adjustable accent head on the same track instead.
9) Can the lamp be replaced in the WAC LED3020, or is the whole head disposable?
The light source is an integrated LED module, not a socketed lamp, so there is no bulb to stock or swap in the usual sense. It ships with the LED included and is rated 60,000 hours, which for a 12-hour-a-day retail schedule is well over a decade of service.
10) Can the LED3020 head be flipped for mounting orientation on the track?
Yes, it supports reversible mounting, so the head can be oriented to suit the direction of the track run when you are washing a wall from either side of the aisle.
