WAC Lighting LED810 Impulse LE...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$213.95

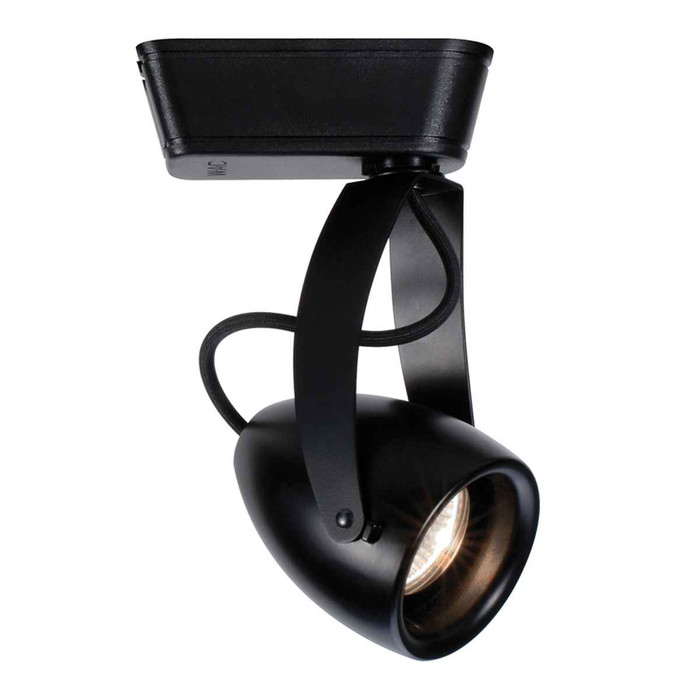

WAC Lighting LED810 Impulse LED Low Voltage Track Head J Track Fixture

WAC Lighting LED810 Impulse LED Low Voltage Track Head J Track Fixture

(No reviews yet) Write a Review

Model: WAC-JLED810
From the Impulse Collection
$213.95
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$213.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-11310 Palladian LED Wall Sconce with Seeded Crystal

An illuminated crystal stave pierces a band of polished nickel or gold or silver leaf for a dramatic look on this exceptional design. Inspired by the golden age of Hollywood, Palladian is perfect for home theaters, Broadway venues and all the restaurants in between the two. Mount a series along a corridor or in a lobby for a stunning presentation.
  • Steel construction with hand applied gold or silver leafing and clear seeded crystal. Can be purchased as a standalone sconce without the crystal, part number WS-11311.
  • ADA compliant, low profile design. Crystal can be removed from wall sconce.
  • Electronic transformer located inside of 4in junction box. 277V, 240V, or custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 80,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
60000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
80
Collection:
Impulse
Complete System:
No
Dimmable:
Yes
Energy Star:
No
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
875
Number of Bulbs:
1
Product Type:
J Track Fixture
Safety Rating:
UL, cUL
Subcategory:
LED Low Voltage
Total Wattage:
14.5
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
7.38"
Reversible Mounting:
Yes
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1349
Product Voltage:
120
Product Length:
3.38"
Beam Spread Angle:
40
Light Temperature:
2700
Product Diameter:
3.13"
Product Style:
Modern
Product Height:
7.38"
Product Category:
Track Lighting
Product Width:
3.13"
Product Wattage:
14.5

WAC Lighting WAC-JLED810 – Frequently Asked Questions

1) Will the WAC Lighting LED810 Impulse track head fit my existing track, and does it come with the track?
The LED810 Impulse is a J-track head, so it drops onto J-style (three-circuit style) track only. It is a head by itself, not a complete system, so the track sections, feeds, connectors and end caps have to be ordered separately. If your building already runs J track, the head snaps in with no rewiring; if you are running H or L track, this head is the wrong fitting.
2) What voltage does the WAC LED810 low voltage track head run on, and do I need a separate transformer?
The head runs off a 120V track circuit. It is described as low voltage because the LED module is driven at low voltage internally, but the driver is built into the head, so there is no remote transformer to mount. Feed the track at standard 120V line voltage and the head handles the rest.
3) Does the WAC Impulse LED810 meet Title 24 or ADA requirements for a commercial job?
No on both counts. The LED810 is not Title 24 compliant and is not ADA compliant, so it will not carry a California Title 24 lighting compliance form on its own, and it is not the head to use where a fixture has to meet ADA protrusion limits. It does carry UL and cUL safety listings for use in the US and Canada. On a California commercial project, work with your electrical engineer on the compliance path before specifying these.
4) What color temperatures and CRI options does the WAC Impulse LED810 come in?
Color temperature runs 2700K, 3000K, 3500K and 4000K, and you pick either 80 or 90 CRI when you order. For hospitality and residential, 2700K matches incandescent warmth. 3000K is the usual retail and gallery choice. 3500K and 4000K read cooler and suit offices and commercial spaces. If the heads are lighting merchandise, artwork or food, take the 90 CRI option, since color rendering is what makes the goods look right under the beam.
5) Are the LED810 Impulse track heads dimmable, and what dimmer do I use?
Yes, the heads dim. They use an integrated LED module rather than a lamp, so pair them with an LED-rated dimmer matched to the driver type and confirm the dimmer's minimum load against your total connected wattage. A single 14.5W head on a dimmer rated for 150W of LED sits well below most minimum load thresholds, which is the usual reason a single-head run flickers or will not dim smoothly.
6) Do I have to replace the whole WAC LED810 head when the LED burns out?
The LED810 uses an integrated LED module, so there is no socket and no lamp to change. Rated life is 60,000 hours. At 12 hours a day of retail operation that is roughly 13 years of service before the module reaches its rated point, which is why these get specified in ceilings that are awkward to reach.
7) How big is the WAC Impulse LED810 head, and how far does it hang below the track?
The head measures 3.13 inches in diameter, 3.38 inches long, and stands 7.38 inches at maximum height including the stem and track adapter. That 7.38 inch figure is the number to check against a low ceiling or a soffit condition, since it is how far the assembly projects below the track when the head is aimed straight down.
8) Can the WAC LED810 track head be aimed up to graze a wall or light a ceiling?
Yes. The head has reversible mounting, so it can be turned to throw light upward as well as down, which is what you want for uplighting a beam, grazing a textured wall, or bouncing light off a ceiling plane. Aluminum housing keeps the heat off the LED in either orientation.
