WAC Lighting LED820 Impulse LE...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$299.95

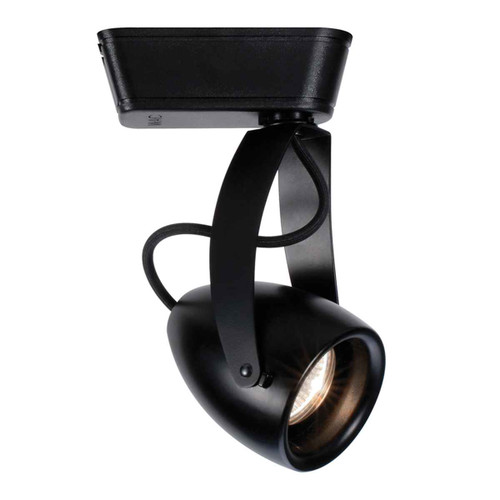

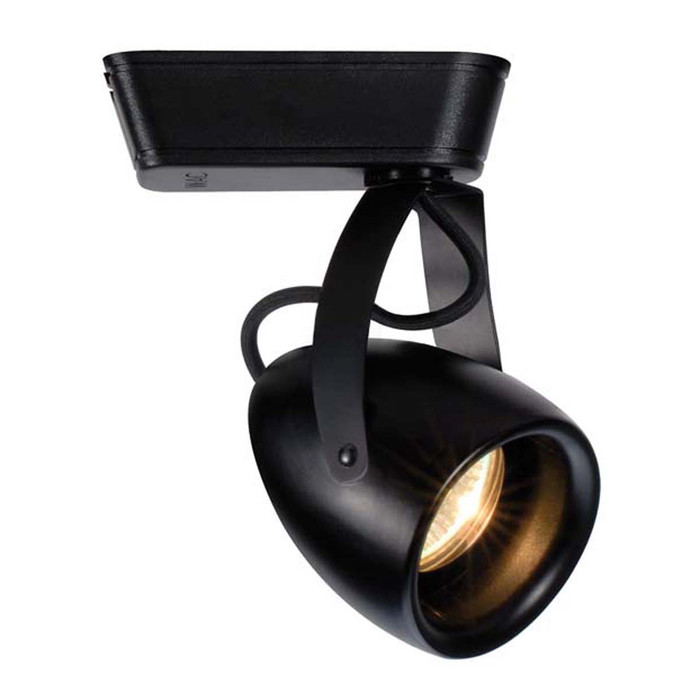

WAC Lighting LED820 Impulse LED Low Voltage Track Head L Track Fixture

WAC Lighting LED820 Impulse LED Low Voltage Track Head L Track Fixture

(No reviews yet) Write a Review

Model: WAC-LLED820
From the Impulse Collection
$299.95
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$299.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms FM-30216 Grommet 1 Light LED Flush Mount

An octagonal geometric ceiling luminaire with a chiseled profile. ACLED state of the art technology projects through irresistible mouth blown etched opal glass. Integral color adjustability allows you to choose warm white, crisp white or cool light for your space.
  • Die cast aluminum body and mouth blown opal glass shade.
  • Grommet is damp location listed - can be used indoor or indoor or in a covered damp area. Can be mounted on the ceiling or wall, providing clean ambient light.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. Tri-CCT technology features a switch inside the canopy that is accessible during installation and allows you to toggle color temperatures between 2700K Warm - 3000K Warm White - 3500K White to find and set the perfect color temperature for your space. This fixture is factory pre-set to the CCT ordered and can be modified in the field with the flick of a switch.
  • Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 54,000, Color Temperature Adjustability: 3000K-3500K-4000K options available.
  • Standards: ETL & cETL UL 1598 listed with IP44 rating for damp locations. CEC Title 24 compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Avg Rated Hours:
60000
Bulb Base:
Integrated LED
Bulb Shape:
LED Module
Bulbs Included:
Yes
CRI:
85
Collection:
Impulse
Complete System:
No
Dimmable:
Yes
Energy Star:
No
Hardwired or Portable:
Portable
Location Rating:
Dry
Lumens:
1210
Number of Bulbs:
1
Product Type:
L Track Fixture
Safety Rating:
ETL, cETL
Subcategory:
LED Low Voltage
Total Wattage:
23
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
7.88"
Reversible Mounting:
Yes
Title 24 Compliant:
No
Bulb Type:
LED
Segment:
Lighting
SORTME:
1328
Product Voltage:
120
Product Length:
4.38"
Beam Spread Angle:
40
Light Temperature:
2700
Product Diameter:
3.88"
Product Style:
Modern
Product Height:
7.88"
Product Category:
Track Lighting
Product Width:
3.88"
Product Wattage:
23

WAC Lighting WAC-LLED820 – Frequently Asked Questions

1) Will the WAC Lighting LED820 Impulse track head fit my track, or do I need L track specifically?
The LED820 Impulse head is built as an L track fixture, so it seats in L track only. It will not drop into H, J, or a proprietary two-circuit rail. Check the track already on the ceiling before ordering, because the head ships as a fixture on its own and not as a track-and-head system, so the rail has to already be there or be ordered separately.
2) Can the WAC LED820 low voltage track head be used outdoors or in a covered patio?
No. The LED820 Impulse head is rated for dry locations and interior use, so a covered patio, a parking garage, a shower area, or anywhere that sees humidity or blown rain is out of scope. Keep it to conditioned retail, gallery, office, and residential interiors. For a damp or wet spot you need a fixture carrying a damp or wet location listing instead.
3) What beam angle should I order on the WAC LED820 Impulse head for high ceilings versus close-up display work?
Two beam spreads are offered, 20 degree and 40 degree. The 20 degree is the narrow spot, and it is the one for tall ceilings or for putting a tight pool of light on a single piece of art or a product on a pedestal. The 40 degree flood covers more surface from the same distance and suits shelving runs, wall washing, and standard-height commercial ceilings. Mixing both on one run is common: narrow on the features, flood on the general merchandise.
4) What color temperatures and CRI can I specify on the WAC Impulse LED820 track head?
Color temperature is ordered as one of four values: 2700K, 3000K, 3500K, or 4000K. CRI is a separate choice of 85 or 90. For retail apparel, food, and gallery work where color rendering is being judged, spec the 90 CRI. For hospitality and residential warmth, 2700K or 3000K; 3500K and 4000K read cleaner and are the usual pick for office and institutional spaces. The color temperature is fixed at the factory by what you order, so pick it per zone and keep it consistent across a run of heads.
5) How far does the WAC Impulse LED820 head hang below the track and how much clearance do I need?
The head measures 7.88 inches at maximum height, 3.88 inches in diameter, and 4.38 inches in length. Allow the full 7.88 inches of drop below the track face when the head is aimed straight down, plus swing room around a 3.88 inch body so adjacent heads on the same run do not collide when they are aimed. In a tight soffit or a low-ceiling corridor that drop is the number that decides whether this head clears.
6) How much light does the WAC Impulse LED820 track head put out and what does it draw?
1210 lumens at 23 watts from a single integrated LED module, on 120 volt supply. That output is accent-level, so it works well washing artwork, merchandise, or a display case, and it is not a substitute for general ambient lighting over a whole room. Count on roughly one head per feature you want lit rather than spacing them for even coverage.
7) What finishes does the WAC LED820 Impulse track head come in for matching existing track?
Three finishes: black, dark bronze, and white. White disappears into a painted ceiling and is the usual pick for residential and office; black is the standard for retail and gallery where the ceiling is dark and the fixtures are meant to recede; dark bronze matches bronze track and trim packages. Match the head to the track finish already installed, since the two are ordered separately and a mismatched head is obvious from the floor.
8) Does the WAC LED820 Impulse track head meet California Title 24 or carry an Energy Star listing?
Neither. The LED820 Impulse head is not Title 24 compliant and is not Energy Star listed, which matters if you are building to California energy code or chasing a utility rebate that requires the Energy Star mark. It does carry ETL and cETL safety listings for US and Canadian installation. On a Title 24 job, take this to your energy consultant before it goes on the fixture schedule.
9) How long does the LED in the WAC Impulse LED820 track head last, and can it be relamped?
Average rated life is 60,000 hours on the integrated module. At 12 hours a day of retail operation that is well over a decade of service, which is the point of specifying integrated LED over a lamped head for a facility you maintain yourself. There is no socketed lamp in it, so plan on replacing the head rather than relamping it at end of life.
10) What is the housing on the WAC Impulse LED820 track head made of, and will it hold up in a commercial space?
Aluminum body. That is what lets an accent head shed heat from a 23 watt LED module without a fan or a heat sink hanging off it, and it is why the head stays light enough to hang off a track run without stressing the connector. For a retail or gallery interior where heads get re-aimed regularly, aluminum is the standard commercial construction.
