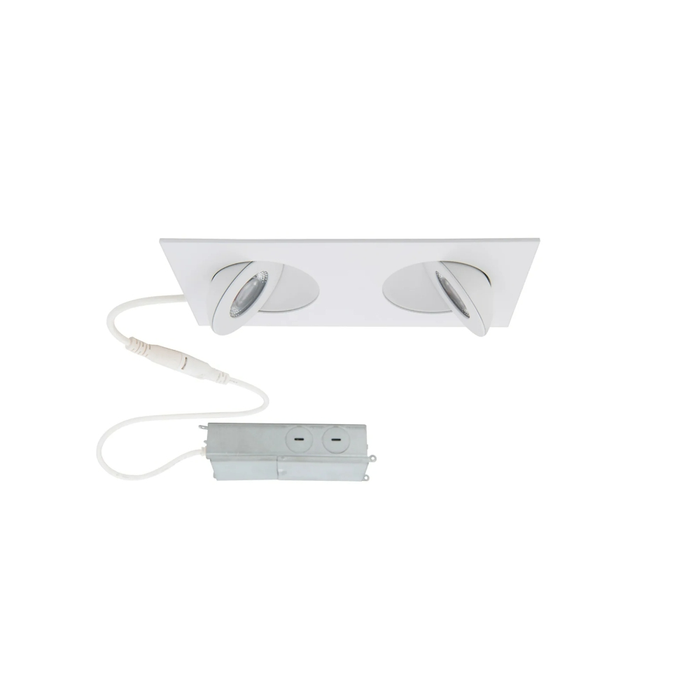

WAC Lighting Lotos 2" Square Adjustable 2 Light

WAC Lighting Lotos 2" Square Adjustable 2 Light

(No reviews yet) Write a Review

Model: R2ESAR-2-W930-WT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$92.00
$80.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lotos 2 inch & Multiples Adjustable Downlight 3000K

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light outputand efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel.Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge.

Features

  • Delivered Lumens: 530lm
  • 3000K
  • CRI: 90
  • Power: 12W, 18W, 6W
  • Input: 120 -277 VAC, 50/60Hz
  • IC Rated, Airtight
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Steel with frosted TIR lens
  • Multiple LED array for uniform illumination
  • Rotatable multi-axis gimbal ring
  • Multiple fixture heads with individual adjustability
  • Driver included

Manufacturer Resources:

Specification Sheet

Installation Guide

Manufacturer Resources

Product Specs

Product Group:
Indoor Lighting
Product Subgroup:
Accessories
Brand Family:
WAC Limited
Subcategory:
Ceiling Lighting
Segment:
Lighting
Product Category:
Lighting Accessories

WAC Lighting R2ESAR-2-W930-WT – Frequently Asked Questions

1) Can the WAC Lotos 2 inch recessed kit be installed in an existing ceiling without cutting in a housing?
Yes. The Lotos 2 inch LED recessed kit uses a wafer-thin fixture with a remote driver, so there is no large can housing to fit above the ceiling. It goes in as a remodel install, which is what makes it workable in finished ceilings and tight plenums where a traditional housing will not fit. The driver ships with the kit.
2) Is the Lotos 2 inch downlight safe to bury in insulation in an attic ceiling?
It is IC Rated and Airtight, so it can be in direct contact with insulation and it seals the ceiling penetration against air leakage. That covers the two things that stop most recessed fixtures from going into an insulated attic or a top-floor unit ceiling.
3) What dimmer works with the WAC Lotos 2 inch recessed light?
The Lotos 2 inch runs on either ELV or TRIAC dimming, both down to 5 percent of full output. TRIAC means a standard forward-phase wall dimmer will work, which matters on a retrofit where you are keeping the existing dimmer. If the space is on ELV controls, that is covered too, same 100 to 5 percent range.
4) Will the WAC Lotos work on 277V commercial power, or is it 120V only?
Input is 120 to 277 VAC, 50/60Hz, so the same fixture runs on residential 120V and on 277V commercial branch circuits. You do not need a different part number for the 277V floors of a building.
5) What is the difference between the adjustable Lotos and the downlight version?
The downlight version is fixed and aims straight down for general ambient light. The adjustable version has a gimbal ring that pivots 360 degrees on a hinge, so you can aim it at artwork, a wall wash, or a feature. On the 2 light square adjustable, each of the two heads adjusts on its own, so one opening can light two different targets. If you only need even ceiling illumination, the plain downlight is the simpler order.
6) How much light does a 2 inch Lotos recessed fixture actually put out?
530 delivered lumens at 3000K, with a CRI of 90. That is a warm white with high color rendering, which is why it gets specified over retail displays, hospitality corridors, and residential spaces where finishes and skin tones need to read correctly. The 90 CRI is the number to quote when a spec calls for high color fidelity.
7) How long before these recessed lights need relamping in a hard-to-reach ceiling?
Rated life is 50,000 hours. There is no lamp to change, the LED array is integral, so the maintenance question is fixture replacement rather than relamping. For a stairwell or high lobby ceiling on continuous operation that is roughly six years of run time before rated end of life, which is the calculation an MRO buyer is usually doing.
8) What is the part number for the WAC Lotos 2 inch square adjustable 2 light in white, 3000K?
Order R2ESAR-2-W930-WT. Reading it out: R2ESAR is the 2 inch square adjustable Lotos, the 2 is the two-head configuration, W930 is 3000K at 90 CRI, and WT is the white finish. That is the full designation a distributor needs to match against a submittal.
9) Do I need to buy a separate driver or transformer for the Lotos recessed kit?
No separate driver purchase. The remote driver comes with the kit. What you do need to plan for is a place to put it, since it mounts away from the fixture rather than on a housing, so allow accessible space above the ceiling or in the joist bay for it during rough-in.
10) Will the Lotos 2 inch produce hot spots or a glary aperture?
No. It uses a multiple LED array behind a frosted TIR lens, so the aperture reads as one even source rather than individual diodes. The housing is steel. That frosted TIR combination is the reason it can go in a lobby or an open-plan ceiling where a bare-diode aperture would be objectionable.
