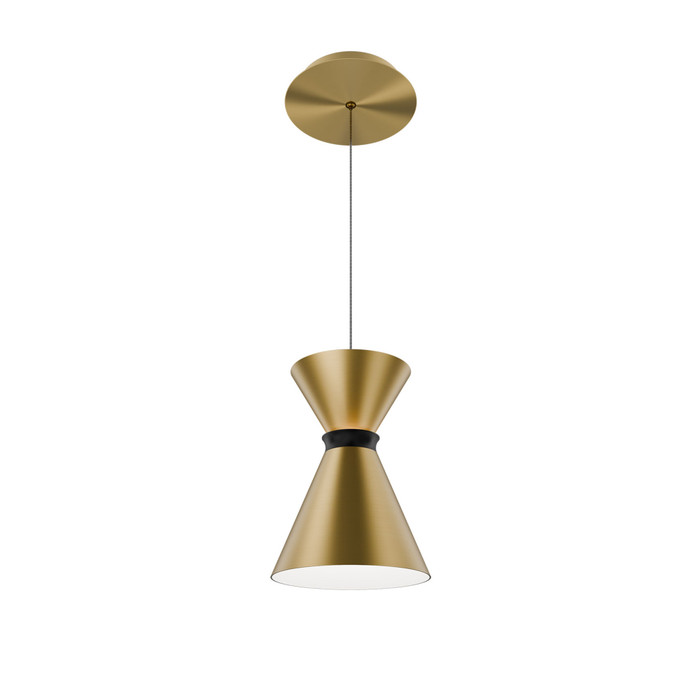

WAC Lighting PD-571 Pin Up 4-CCT LED Mini-Pendant
The WAC Lighting Pin Up Mini-Pendant brings a nostalgic 1950's-inspired silhouette to modern spaces with its dual conical Aluminum construction, delivering a splash of uplight and a focused down light from each open cone end. Built-in 4-CCT color temperature adjustability (2700K/3000K/3500K/4000K) lets you pre-select or field-adjust the light output, while the Universal Input Voltage Driver (120V-240V-277V) is concealed neatly in the canopy. Rated ETL & cETL for Damp Locations and CEC Title 24 Compliant, this 15W fixture is engineered for both residential and light-commercial installations.
Key Features
- Dual-Cone Silhouette: The top cone nestles inside the banded lower cone, each illuminating from an open end for combined up and down light.
- Durable Construction: Aluminum housing supports both upward and downward illumination for lasting performance.
- Selectable CCT: Switch between 2700K/3000K/3500K/4000K, with the option to pre-select color temperature or adjust it in the field.
- Universal Voltage Driver: Concealed 120V-240V-277V driver in the canopy simplifies specification across projects; sloped-ceiling compatible with height adjustment via push-pin connectors on the electrified cable.
- Smooth Dimming: Continuous dimming performance with electronic low voltage (ELV) or TRIAC dimmers.
- High-Powered LED Module: Replaceable module rated 90 CRI and 50,000 hours, with selectable CCT from 2700K-4000K.
- Total Wattage: 15W for efficient, focused illumination.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Pin Up
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Mini-Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 15
- Style: Modern;Transitional
Typical Applications
- Kitchen Islands and Dining Areas
- Entryways and Hallways
- Hospitality and Commercial Interiors
- Sloped-Ceiling Installations
- Damp-Location Residential Spaces
Why WAC Lighting?
WAC Lighting builds the Pin Up Mini-Pendant around a durable Aluminum dual-cone design, a replaceable high-CRI LED module, and a Universal Voltage Driver, giving specifiers a fixture engineered for consistent, code-compliant performance. With ETL & cETL Damp Location listing and CEC Title 24 compliance backed by a 5-Year Functional and 2-Year Finish warranty, it's built for reliable long-term use in professional installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Pin Up
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Subcategory:
- Mini-Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 15
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD-57108-27-AB/BK – Frequently Asked Questions
1) Can the WAC Lighting PD-571 Pin Up mini-pendant run on 277V commercial power, or is it 120V only?
The Pin Up PD-571 uses a universal input driver rated 120V, 240V and 277V, so the same fixture works on a residential 120V circuit or a 277V commercial lighting branch. The driver sits concealed in the canopy, so there is no remote driver to find a location for.
2) Do I have to pick a color temperature when I order the Pin Up pendant, or can it be changed after install?
Both. The PD-571 has built-in 4-CCT selection covering 2700K, 3000K, 3500K and 4000K, and it ships pre-selected to the CCT you order. The setting can also be changed in the field, so a run of pendants installed at 3000K can be shifted to 3500K later without replacing fixtures.
3) Will the PD-571 pendant mount on a sloped ceiling, and how is the hanging height set?
Yes. The Pin Up is a ceiling-mounted hardwired pendant that is sloped-ceiling compatible, and hang height is adjusted with push-pin connectors on the electrified cable, so the cable is shortened at install rather than ordered to length.
4) What dimmer works with the WAC Pin Up LED pendant? My existing wall dimmers are standard incandescent type.
The PD-571 dims continuously on electronic low voltage (ELV) or TRIAC dimmers. A standard incandescent/forward-phase TRIAC dimmer will work; a 0-10V or DALI control will not, since the driver does not accept those. Swap any 0-10V stations for ELV or TRIAC before energizing.
5) Can I use the Pin Up pendant in a covered patio or a bathroom?
The Pin Up is ETL and cETL Listed for damp locations, which covers a bathroom, a covered porch or a covered exterior walkway where the fixture is not hit by direct rain. It is not wet-location rated, so do not use it on an open soffit or anywhere exposed to driving water.
6) If the LED burns out in the WAC Pin Up pendant, do I have to replace the whole fixture?
No. The Pin Up carries a replaceable high-powered LED module rather than a sealed board, and the module is rated 50,000 hours. The LED comes with the fixture, so there is no lamp to buy separately at install.
7) Is the WAC Pin Up pendant acceptable for a California Title 24 project?
Yes, the PD-571 is CEC Title 24 compliant. Note it is not Energy Star certified and it is not ADA compliant, so it should not be specified where an ADA-compliant fixture is called for.
8) How much light does one 15W Pin Up pendant throw, and will it light a kitchen island on its own?
Each Pin Up draws 15W total and puts out a flood distribution, with a splash of uplight from the top cone and a focused downlight from the lower cone open end. That dual-direction output makes it an accent and ambient fixture rather than a single task light, so islands are normally done as a run of two or three pendants spaced along the counter. The 90 CRI module keeps food and finishes reading true.
9) What finishes does the WAC Pin Up PD-571 come in, and what is the difference between them?
Two two-tone combinations: Aged Brass with Black, and Black with Aged Brass. They are the same dual-cone fixture with the cone colors reversed, so you can mix both in a single run for contrast or keep one consistent across a row of openings. Both finishes are offered in all four CCT settings.
10) Is the Pin Up pendant metal or glass? I need something durable for a hotel corridor.
Construction is aluminum throughout, both cones, with no glass shade to break or replace. For hospitality and light-commercial interiors that matters, and the 277V capability means it can run off the same house lighting circuit as the rest of the corridor.
