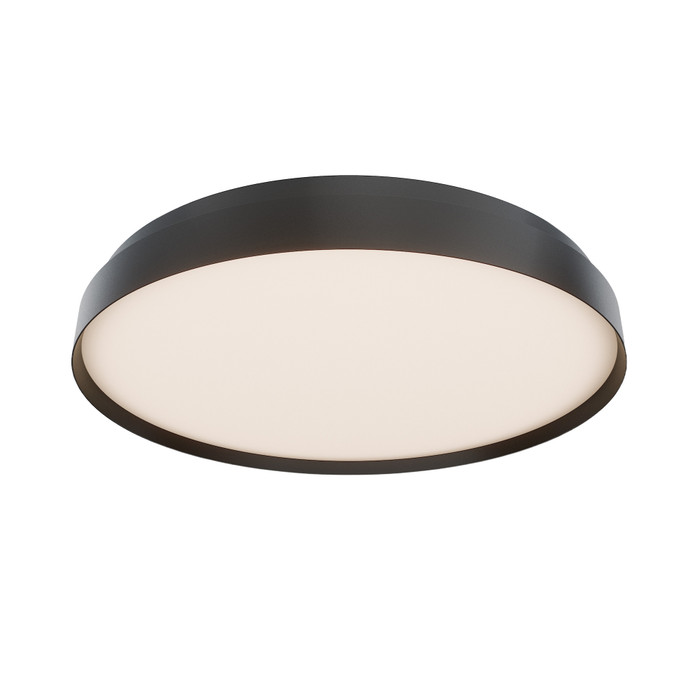

WAC Lighting Ringsley FM702632 LED Flush Mount, Aluminum, 3000K
The WAC Lighting Ringsley FM702632 LED Flush Mount brings effortlessly sleek, modern minimalism to any ceiling or wall installation. Its circular aluminum frame floats close to the surface and wraps a softly glowing frosted acrylic diffuser, delivering 2660 lumens at 3000K with CRI 90 for smooth, flattering illumination. A universal input voltage driver (120V-240V-277V) is housed in the canopy, and the fixture pairs with ELV or TRIAC dimmers for effortless mood control. Rated ETL & cETL for damp locations and ADA compliant, it's built for reliable everyday performance.
Key Features
- Durable Construction: Aluminum body with a frosted acrylic diffuser for a smooth, contemporary glow.
- Flexible Mounting: Can be mounted on the ceiling or wall in any orientation.
- Universal Driver: Universal input voltage driver (120V-240V-277V) located in the canopy for broad compatibility.
- Dimming: Smooth, continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
- High-Powered LED: Replaceable LED module rated for 50,000 hours with CRI 90 and 3000K color temperature.
- Light Output: Delivers 2660 lumens at 40W total wattage for efficient, even illumination.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- ADA Compliant
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 2660
- Product Type: Indoor Ceiling Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Flush Mount
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 40
- Style: Modern;Transitional
- Mounting: Ceiling/Wall;Any
Typical Applications
- Indoor Residential and Commercial Ceiling Lighting
- Hallways, Bedrooms, and Living Spaces
- Damp-Location Areas Such as Covered Porches and Bathrooms
- Modern and Transitional Interior Design Schemes
- Ceiling or Wall-Mounted Flush Installations
Why WAC Lighting?
WAC Lighting builds the Ringsley FM702632 with a durable aluminum housing, a replaceable high-powered LED engine, and a universal voltage driver, backed by ETL & cETL damp-location listing and ADA compliance. With smooth ELV/TRIAC dimming and a 5-Year functional warranty, it delivers dependable, code-compliant performance for both residential and commercial ceiling lighting projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Ringsley
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 2660
- Product Type:
- Indoor Ceiling Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Acrylic Diffuser
- Subcategory:
- Flush Mount
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 40
- Light Temperature:
- 3000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling/Wall;Any
- Department:
- Electrical
WAC Lighting FM702632-TWA-BK – Frequently Asked Questions
1) Can the WAC Ringsley FM702632 flush mount go in a bathroom or on a covered porch?
Damp location is the rating on the Ringsley FM702632, ETL and cETL listed, so a bathroom ceiling or a covered porch or soffit that stays out of direct water is within spec. It is not wet-rated, so skip open exterior locations, shower interiors directly in the spray, and anywhere exposed to driving rain.
2) Will the Ringsley FM702632 run on 277V commercial power, or do I need a different fixture for a 277V circuit?
The driver in the Ringsley canopy is universal input, 120V, 240V or 277V, so the same fixture works on residential 120V branch circuits and on 277V commercial lighting circuits. No separate voltage version to order. It is hardwired, not plug-in, so it needs a junction box and a licensed connection.
3) What dimmer works with the WAC Ringsley LED flush mount?
Use an ELV (electronic low voltage) or TRIAC dimmer. Those are the two control types the Ringsley driver accepts, and they give continuous dimming. A 0-10V or DALI control will not drive it, and a standard magnetic low-voltage dimmer is the wrong type. If you are standardizing dimmers across a building, spec ELV.
4) Does the WAC Ringsley FM702632 meet ADA requirements for a corridor wall fixture?
ADA compliant is stated for the Ringsley, which matters when it is wall-mounted in a corridor or along an egress path where protrusion limits apply. It is also CEC, Title 24 and Title 20 compliant, which is what California projects get asked for on submittals.
5) Is the Ringsley FM702632 bright enough to be the only light in a hallway or bedroom?
It puts out 2660 lumens at 40W, which is enough for a hallway, a bedroom, or a small bath as a single ceiling source. The beam is flood rather than spot, and the frosted acrylic diffuser spreads it, so you get general ambient light rather than a pool under the fixture. For larger rooms, plan on more than one.
6) Can this WAC flush mount be used as a wall sconce, not just on a ceiling?
Yes. The Ringsley mounts on a ceiling or a wall in any orientation, so the same part number covers a corridor ceiling and a wall-mounted application beside a mirror or in a stairwell. Useful if you want one SKU across mixed locations in a building.
7) Do I have to buy bulbs for this, and what happens when the LED fails?
Nothing to buy. The Ringsley ships with its LED module included, rated 50,000 hours, and the module is replaceable rather than sealed in, so a failure down the road does not mean scrapping the fixture. Color is fixed at 3000K with CRI 90.
8) What finishes does the Ringsley FM702632 come in, and will the light look warm or cool?
Two finishes, black and white, on an aluminum body. The light itself is 3000K, a warm white that reads soft rather than blue, and CRI 90 keeps skin tones and finishes looking accurate, which is why it suits baths and bedrooms over a cooler 4000K fixture.
9) Is the WAC Ringsley Energy Star certified?
No, the Ringsley FM702632 is not Energy Star listed. It does carry CEC, Title 24 and Title 20 compliance, so if your project requirement is California energy code rather than an Energy Star rebate, it qualifies.
10) Where do I find install instructions for the WAC Ringsley flush mount?
WAC publishes an installation guide for the Ringsley, available at https://zensupply.com/content/pdf/wac-lighting/installation-guide-2b6022.pdf. The driver sits in the canopy, so your box needs to accept the canopy and the hardwired supply leads.
