WAC Lighting T-Bar Drop Ceilin...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$20.01

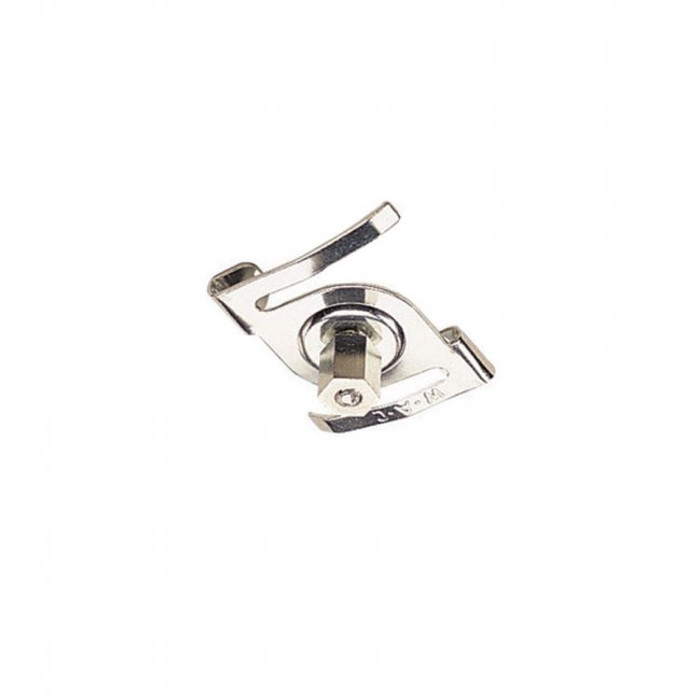

WAC Lighting T-Bar Drop Ceiling Clip Track Component

WAC Lighting T-Bar Drop Ceiling Clip Track Component

(No reviews yet) Write a Review

Model: WAC-T-BARCLIP
From the H-L-J-J2 Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-W11716 Blade LED Indoor or Outdoor Wall Light

Put a new slant on your lighting scheme with the Blade family of sconces, minimalist designs that look right at home with Scandinavian or contemporary furniture. Engineered for indirect illumination, each sconce creates warm, inviting light that spreads out for a beautiful ambient effect. It's understated luxury, powered by LED innovation.
  • Solid aluminum construction coated for IP65 protection in wet locations.
  • CEC Title 24, and low profile ADA compliant.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. 277V, 240V, or custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL, cETL & IP65 UL 1598 listed for wet locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
1.25"
Backplate Height:
0.88"
Backplate Width:
1.25"
Collection:
H-L-J-J2 Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Portable
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Accessory
Base Material:
Metal
Location Indoor/ Outdoor:
Interior
Max Height:
0.88"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1304
Product Voltage:
120
Product Length:
1.25"
Product Style:
Functional
Product Height:
0.88"
Product Category:
Track Lighting
Product Width:
1.25"

WAC Lighting WAC-T-BARCLIP – Frequently Asked Questions

1) Which WAC track systems does the T-BARCLIP T-bar ceiling clip work with?
The WAC Lighting T-BARCLIP is built for WAC's H, L, J and J2 track, so it suits any of those four systems rather than one alone. If the track on the job is a WAC H, L, J or J2 run, this is the clip that hangs it from a suspended grid. Track from another manufacturer's system is a different profile and should be hung with that maker's own T-bar hardware.
2) How do I mount WAC track lighting to a suspended drop ceiling grid?
A T-bar clip is the standard method: it grabs the inverted-tee grid member and carries the track, so you are not trying to anchor into ceiling tile. The WAC T-BARCLIP does that job for H, L, J and J2 track. Plan clip spacing along the run at grid members, since the clip can only land where a tee actually runs, and coordinate the feed location with the electrician before the grid is fully tiled.
3) Can the T-BARCLIP be used on an exterior canopy or a wet location?
No. The T-BARCLIP is rated for dry locations and interior use only, so keep it to conditioned indoor space. Covered exterior soffits, parking canopies, car washes and pool areas need hardware rated for damp or wet locations instead. Kitchens and unconditioned storage areas that see condensation are also outside what a dry rating covers.
4) Does ordering the T-BARCLIP get me everything I need for a track lighting install?
On its own, no. The T-BARCLIP is a mounting accessory, not a complete system, so it hangs track from a drop ceiling grid and nothing more. The track sections themselves, the power feed or end feed, connectors for corners and runs, and the fixture heads are all separate line items. Order the clips by count against the number of grid members your run crosses.
5) How much clearance does the WAC T-BARCLIP need above the track?
Small footprint. The clip measures 1.25 inches long by 1.25 inches wide with a height of 0.88 inches, so it adds well under an inch between the grid tee and the track body. That matters when you are working to a tight plenum or trying to keep a track run close to the ceiling plane in a retail or office fit-out.
6) Is the WAC T-BARCLIP UL listed for a commercial job?
UL and cUL, which is what a spec inspector on a commercial or institutional project will ask for, and the cUL side covers Canadian installs. It is a 120 volt system component. Note that it does not carry an Energy Star or Title 24 designation, so if a project is chasing those, the compliance comes from the fixtures and controls on the track, not the mounting hardware.
7) Is the T-BARCLIP metal or plastic, and will it hold a loaded track run?
Metal base material, not molded plastic, which is what you want on a grid clip carrying an energized track section plus fixture heads. Distribute the load across enough clips along the run rather than relying on the end supports, and make sure the grid itself is properly wired back to structure before hanging anything from it.
8) What finish does the WAC T-bar drop ceiling clip come in?
Chrome is the finish, and it is the only one offered on the T-BARCLIP. In practice the clip sits up at the grid tee behind the track, so the finish rarely reads from the floor, but on an open-plenum or exposed-grid space where the hardware is visible, chrome is what you are matching to.
9) Can the T-BARCLIP be flipped to mount the track a different way?
It is not a reversible mounting part, so it installs in one orientation only. If the track needs to sit at a different offset or be dropped below the ceiling plane, that calls for a different accessory such as a pendant or stem mount rather than trying to invert this clip.
