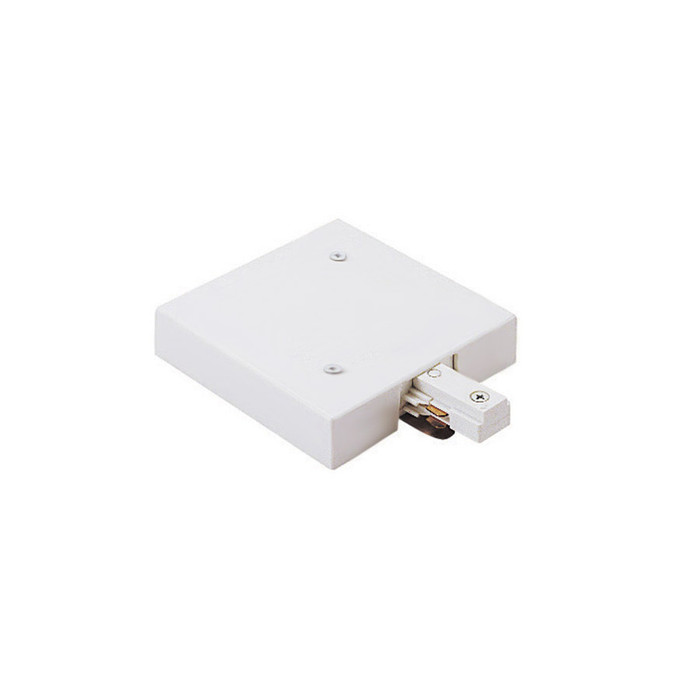

WAC Lighting J Track 2-Circuit Drop Ceiling Live End Feed Track Component

WAC Lighting J Track 2-Circuit Drop Ceiling Live End Feed Track Component

(No reviews yet) Write a Review

Model: WAC-J2-TBLE
From the J 2-Circuit Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-26417 Sensu 1 Light Wall Sconce

Opulent origami. Within a hazy cloudy acrylic patterned shade, carefully crafted folds serve as prismatic marvels, gracefully redirecting the integrated LEDs' radiance.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
4.13"
Backplate Height:
1"
Backplate Width:
4.13"
Collection:
J 2-Circuit Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
1"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1338
Product Voltage:
120
Product Length:
4.13"
Product Style:
Functional
Product Height:
1"
Product Category:
Track Lighting
Product Width:
4.13"

WAC Lighting WAC-J2-TBLE – Frequently Asked Questions

1) Will the WAC J2-TBLE live end feed work with WAC's J 2-Circuit track, or only single-circuit J track?
The J2-TBLE is part of WAC Lighting's J 2-Circuit Track collection, so it feeds two-circuit J track only. Single-circuit J track uses a different feed. Order it when your run is switched on two separate circuits from one track body.
2) Can I use this WAC J track feed outdoors or in a damp area like a covered walkway?
No. The J2-TBLE is rated for interior use and dry locations only, so canopies, bathrooms over tubs, coolers, and exterior soffits are out. For those spaces you need a wet or damp rated fixture and feed.
3) Is the WAC J2-TBLE a complete track kit, or do I still need track and heads?
It is a single component, not a complete system. The live end feed is the electrical entry point at the end of the run; you order the J 2-circuit track sections, any connectors, end caps, and the track heads separately.
4) Is this WAC track feed UL listed for commercial jobs?
Yes, the J2-TBLE carries UL and cUL listings, which covers inspection in both US and Canadian jurisdictions. Note it is not Energy Star and not Title 24 compliant, so it will not help on a California Title 24 lighting submittal.
5) What voltage is the WAC J2-TBLE track feed rated for?
120V, hardwired. It is a line-voltage feed, not a low-voltage transformer, so it ties directly to a 120V branch circuit supplying the track run.
6) How much space does the J2-TBLE live end feed take up at the end of a track run?
The canopy measures 4.13 x 4.13 x 1 inches, with 1 inch the overall height off the ceiling. That 4.13 inch square footprint is what has to clear adjacent ceiling grid, air diffusers, or the first track head on the run.
7) What finishes does the WAC J2-TBLE live end feed come in, and which part number do I order?
Two finishes: black as J2-TBLE-BK and white as J2-TBLE-WT. Match it to the track finish so the canopy disappears into the ceiling rather than reading as a dark block on white tile.
8) What is the WAC J2-TBLE feed made of, and will it hold up in a commercial office install?
Aluminum body. It is a functional, non-decorative canopy meant to be mounted and forgotten, which is what you want above a drop ceiling grid in office or retail space.
9) Can the J2-TBLE be flipped or mounted in either orientation on the track?
No, it is not a reversible-mount component. The feed goes on at the end of the run in one orientation, so plan the circuit entry point before the track is set.
