WAC Lighting J Track 2-Circuit...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$46.95

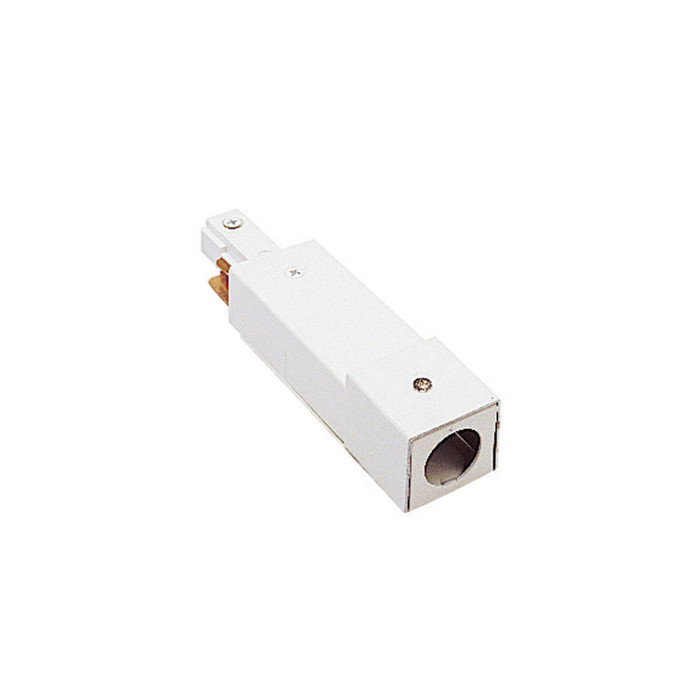

WAC Lighting J Track 2-Circuit Bx Live End Connector Track Component

WAC Lighting J Track 2-Circuit Bx Live End Connector Track Component

(No reviews yet) Write a Review

Model: WAC-J2-BXLE
From the J 2-Circuit Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$46.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms FR-W2403-65L Size Matters Ceiling Fans 65IN Light Kit

Modern Forms FR-W2403-65L Size Matters Ceiling Fans 65IN Light Kit

Big, bold design is better. Offered in an impressive 65 and 84- inch sizes, the 8-blade Size Matters ceiling fan showcases elegant lines, sharply crafted blades and intelligent engineering. An integrated LED luminaire provides dimmable, 2700, 3000, 4000, and 5000K color selectable 90 CRI illumination while a whisper-quiet DC motor effectively cools larger spaces. The motor is IPX4-wet rated for outdoor use. The fan’s contemporary styling is finished in Matte Black complemented by Matte White blades. Control is easy with smart home ecosystems via the Modern Forms app, ensuring seamless integration with voice control devices like Google Home, Amazon Alexa, and Samsung SmartThings, or use the optional Bluetooth wall control.

(WITH LUMINAIRE)

FEATURES

  • CRI: 90
  • Input: 120 VAC, 50/60Hz
  • Rated Life: 50000 Hours
  • Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai.
  • Free app download: Sync with our exclusive Modern Forms app to control fan speed, use smart features like Adaptive Learning, create groups, and reduce energy costs.
  • Bluetooth remote control included (Part# F-RCBT-WT). Optional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT).
  • Additional battery operated Bluetooth hand-held remotes are available (Part# F-RCBT-WT)
  • Silent DC motor runs 70% more energy efficient than traditional AC motors
  • 5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.
  • Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
1.82"
Backplate Height:
1.5"
Backplate Width:
5.88"
Collection:
J 2-Circuit Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
1.5"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1307
Product Voltage:
120
Product Length:
5.88"
Product Style:
Functional
Product Height:
1.5"
Product Category:
Track Lighting
Product Width:
1.82"
Department:
Electrical

WAC Lighting WAC-J2-BXLE – Frequently Asked Questions

1) Will the WAC J2-BXLE live end connector work on single-circuit J track?
No. The J2-BXLE is built for WAC's J 2-Circuit Track collection, so it belongs on 2-circuit J track only. A single-circuit J track run needs a single-circuit live end feed instead.
2) Is the WAC J2-BXLE hardwired or does it plug in?
Hardwired. The J2-BXLE live end feeds power into the track from a junction box connection at 120 volts, so it needs an electrician and a box at the end of the run. If you want a cord-and-plug feed, this is the wrong part.
3) Can the WAC J2-BXLE live end be used on a covered patio or in a damp bathroom?
No. It is rated for dry, interior locations only. For a covered outdoor soffit or a wet-area ceiling you need a fixture and feed rated for damp or wet locations, not this connector.
4) Does the WAC J2-BXLE include the track, or do I order that separately?
Separately. The live end connector is a component, not a complete system, so your order still needs the 2-circuit J track sections, any couplers or corners, the heads, and the end caps. The live end is only the powered feed at one end of the run.
5) What finishes does the WAC J2-BXLE live end connector come in?
Two: black (J2-BXLE-BK) and white (J2-BXLE-WT). Pick the one that matches your track extrusion so the feed end does not read as a different part on the ceiling.
6) How much of the ceiling does the WAC J2-BXLE cover and how far does it drop below the track?
The backplate measures 5.88 inches wide by 1.82 inches deep, and overall height is 1.5 inches. That 1.5 inch profile is the maximum height of the assembly, so it sits close to the ceiling and the 5.88 inch plate is what covers your outlet box opening.
7) Is the WAC J2-BXLE UL listed for a commercial job spec?
It carries UL and cUL safety listings, which covers both US and Canadian installs. Note it is not Energy Star and not Title 24 compliant, so if your California project is chasing Title 24 credit, that comes from the fixtures and controls, not this connector.
8) Can I mount the WAC J2-BXLE live end on a wall instead of the ceiling?
The connector is not reversible-mounting, so plan on it going in one orientation at the end of the track run over the junction box. Body is aluminum.
