WAC Lighting WS-2503 Tablet LED Indoor/Outdoor Wall Light, 17W

WAC Lighting WS-2503 Tablet LED Indoor/Outdoor Wall Light, 17W

(No reviews yet) Write a Review

Model: WS-W250305-CS-BK
From the Tablet Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$84.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting WS-2503 Tablet LED Indoor/Outdoor Wall Light, 17W

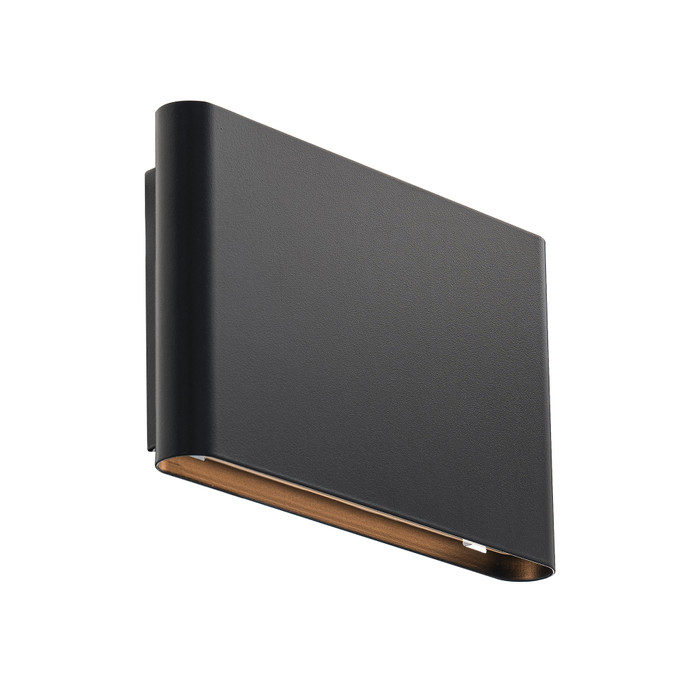

The WAC Lighting WS-2503 Tablet is an ultra low-profile LED wall light built for both indoor and outdoor use. Symmetrical openings cast softly diffused upward and downward illumination, with a solid die-cast aluminum housing and acrylic lens on the top and bottom for even light distribution with no visual hot spots. Rated 17W with 790 delivered lumens and 90+ CRI, it's ETL, cETL, UL # 1598 listed and IP64 rated for Dry, Damp, or Wet locations.

Key Features

  • Durable Construction: Solid die-cast aluminum housing, plated with anti-scratch and anti-corrosion treatment for long-lasting indoor and outdoor performance.
  • Acrylic Lens: Top and bottom acrylic lenses protect against water intrusion and provide an even distribution of light with no visual hot spots.
  • Integrated LED: High-powered integrated LED module delivers 790 delivered lumens at 17W with a 90+ CRI and 50,000 hour rated life (LM-70).
  • 5-CCT Selectable: Color temperature selectable across 2700K-3000K-3500K-4000K-5000K to match any design aesthetic.
  • Dimmable: Smooth, continuous dimming down to 5% with an ELV or TRIAC dimmer; driver is concealed inside the fixture.
  • Flexible Mounting: Includes mounting plate and all hardware for installation onto a standard electrical junction box; sconce can be mounted light up/down or left/right. 120V input voltage.
  • Dual-Light Design: Contains two lights within an ultra low-profile form for versatile indoor or outdoor placement.

Certifications & Compliance

  • ETL and cETL Listed, UL # 1598
  • IP64 Rated for Dry, Damp, or Wet Locations
  • CEC Title 24 JA8-2016 Compliant
  • ADA Compliant

Technical Specifications

  • ADA Compliant: Yes
  • Bulb Base: LED Module - ACLED Module
  • Bulb Shape: LED Module
  • Bulbs Included: Yes
  • Collection: Tablet
  • Dimmable: ELV;TRIAC
  • Energy Star: No
  • Hardwired or Portable: Hardwired
  • Lumens: 988
  • Number of Bulbs: 2
  • Product Type: Outdoor Wall Lighting
  • Safety Rating: ETL, cETL, IP64, ADA Compliant
  • Shade/Glass Description: Acrylic Diffuser
  • Warranty: 5 Years Functional, 2 Years Finish
  • Subcategory: Outdoor Wall Light
  • Avg Rated Hours: 50000
  • Beam Spread: Flood
  • Voltage: 120
  • Country of Origin: China
  • Location Rating: Wet
  • Total Wattage: 17
  • Color Temperature: 2700-3000-3500-4000-5000
  • Style: Modern;Transitional
  • Mounting: Wall;Any

Typical Applications

  • Indoor and Outdoor Wall Lighting
  • Wet, Damp, or Dry Location Sconce Installations
  • Modern and Transitional Residential Exteriors
  • ADA-Compliant Building Projects
  • Junction Box Wall Mount Installations

Why WAC Lighting?

WAC Lighting builds the Tablet fixture with a solid die-cast aluminum housing, protective acrylic lensing, and an IP64, ETL/cETL-listed rating for reliable performance in Dry, Damp, or Wet locations. With 5-CCT color temperature selectability, smooth ELV/TRIAC dimming, and a 5-year functional / 2-year finish warranty, it delivers code-compliant, long-lasting illumination for professional electrical installations.

Product Specs

ADA Compliant:
Yes
Bulb Base:
LED Module - ACLED Module
Bulb Shape:
LED Module
Bulbs Included:
Yes
Collection:
Tablet
Dimmable:
ELV;TRIAC
Energy Star:
No
Hardwired or Portable:
Hardwired
Lumens:
988
Number of Bulbs:
2
Product Type:
Outdoor Wall Lighting
Safety Rating:
ETL, cETL, IP64, ADA Compliant
Shade/Glass Description:
Acrylic Diffuser
Subcategory:
Outdoor Wall Light
Avg Rated Hours:
50000
Beam Spread Angle:
Flood
Product Voltage:
120
Product Material:
Aluminum
Location Rating:
Wet
Total Wattage:
17
Light Temperature:
2700-3000-3500-4000-5000
Product Style:
Modern;Transitional
Mounting Method:
Wall;Any
Department:
Electrical

WAC Lighting WS-W250305-CS-BK – Frequently Asked Questions

1) Can the WAC Tablet WS-2503 wall light be used outdoors in an exposed location with no overhang?
Yes. The WS-2503 Tablet carries a Wet location rating and is IP64 rated, so it can go on an exposed exterior wall as well as damp or dry interior locations. The die-cast aluminum housing is plated for anti-corrosion and the top and bottom acrylic lenses seal against water intrusion.
2) What is needed to install the WS-2503 Tablet sconce, and does it come with mounting hardware?
It is a hardwired 120V fixture that mounts to a standard electrical junction box, and the mounting plate plus all hardware is in the box. You supply the j-box and the 120V branch circuit. The LED driver sits inside the fixture, so there is no remote driver to find a home for. No lamps to buy either, the LED module is integrated.
3) Do I have to pick a color temperature when I order the WAC Tablet WS-2503?
No. Color temperature is selectable on the fixture across 2700K, 3000K, 3500K, 4000K and 5000K, so one part number covers all five. The only thing you choose at order time is finish: Black, Bronze or White. That makes it practical to standardize one fixture across a property and set warmer light at residential entries and cooler light at service or parking areas.
4) Which dimmer works with the WS-2503 Tablet LED wall light?
Use an ELV or TRIAC dimmer. With either, the Tablet dims smoothly and continuously down to 5 percent. It is not a 0-10V or DALI fixture, so do not spec a low-voltage control dimmer for it.
5) Is the WAC Tablet sconce ADA compliant for a corridor or egress path?
Yes, the WS-2503 Tablet is listed ADA compliant, which is what matters when a sconce sits in a walkway or corridor where projection from the wall is restricted. It is also CEC Title 24 JA8-2016 compliant, ETL and cETL listed under UL 1598.
6) Can the Tablet WS-2503 be mounted sideways for a left/right light pattern instead of up/down?
Yes. The sconce can be installed with the two openings firing up and down or rotated to throw left and right. The light is symmetrical out of both acrylic lenses with a flood distribution, so either orientation gives the same soft diffused wash.
7) How much light does the 17W WAC Tablet actually put out, and is it enough for an entry door?
The Tablet draws 17W total and delivers 790 lumens at 90+ CRI, split between two light openings. That is an accent and wall-wash level output suited to entries, patios and corridors rather than a parking or security floodlight. Rated life is 50,000 hours.
8) Can the LED be replaced in the WS-2503 Tablet, or is the whole fixture replaced at end of life?
The Tablet uses an integrated ACLED module, not a socketed lamp, so there is no bulb to swap. Plan on fixture replacement rather than relamping. Rated life is 50,000 hours, and the driver is internal to the fixture as well.
9) Is the WAC Tablet WS-2503 Energy Star certified?
No, the Tablet is not Energy Star listed. It does meet CEC Title 24 JA8-2016, which is the compliance most California residential and commercial lighting specs call out, and it runs 17W at 790 lumens with 90+ CRI.
10) Which finish of the Tablet sconce holds up best on an exterior wall?
All three finishes, Black, Bronze and White, are on the same solid die-cast aluminum housing with an anti-scratch and anti-corrosion plated treatment, so the exterior durability does not change with finish. Pick on appearance and on matching the other openings on the building.
