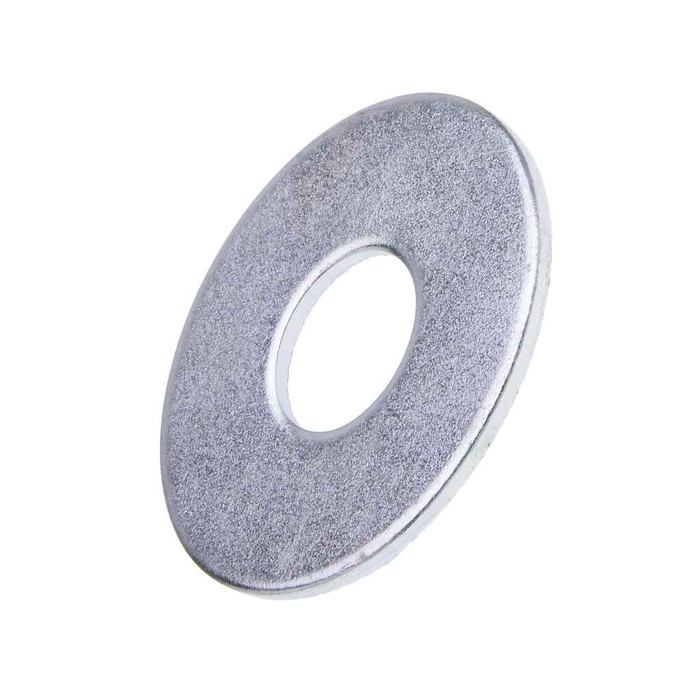

Washers 1/2 X 1-1/2 Fender SS (Jar 100)
Special Features
- Features: A Larger Diameter for Greater Bearing Surface
Manufacturer Resources
Product Specs
- Ansi:
- ANSI
- Division:
- Electrical H1
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Inside Diameter:
- 2-Jan IN
- Outside Diameter:
- 1/1/2002 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Washer Type:
- Fender Washer
- Department:
- Electrical
- Product Subgroup:
- Washers
- Product Length:
- 3 in
- Product Height:
- 3.6 in
- Product Material:
- Stainless Steel
- Product Weight:
- 2.56 lbs
- Product Width:
- 3 in
Metallics JW12011SS – Frequently Asked Questions
1) What bolt size does the Metallics JW12011SS fender washer fit?
It is a 1/2 inch fender washer with a 1-1/2 inch outside diameter, so it goes over 1/2 inch bolts, rod, or lag screws. The large OD relative to the hole is the whole point: it spreads the load across a much wider bearing surface than a standard flat washer of the same bolt size.
2) Are these Metallics fender washers stainless steel or plated?
Stainless steel, not zinc-plated carbon steel. That matters for outdoor strut runs, damp mechanical rooms, rooftop equipment, and anywhere a plated washer would bleed rust onto a finished surface. Pair them with stainless bolts and nuts to avoid mixing metals in the same joint.
3) When should I use a fender washer instead of a standard flat washer?
Use the fender type when the material under the fastener is soft or oversized: sheet metal, drywall or plaster, plywood, fiberglass, or an enlarged or slotted hole the head of a standard washer would pull through. The JW12011SS gives a 1-1/2 inch bearing face on a 1/2 inch fastener. If you are clamping steel to steel through a tight hole, a standard flat washer is the right call.
4) How many washers come in a jar of the Metallics JW12011SS?
100 pieces, packed in a jar rather than a bag or box, which keeps them from spilling in a gang box or on a service truck. The jar weighs 2.56 lbs.
5) Are these fender washers suitable for electrical and HVAC work, or just general construction?
Metallics lists this washer for the electrical, plumbing, heating and air conditioning trades. Typical uses are hanging strut and channel, anchoring conduit straps and junction boxes to soft or oversized substrates, and trapeze or unistrut assemblies on 1/2 inch rod where a wide bearing face is needed.
6) What part number do I order for a 1/2 inch stainless fender washer from Metallics?
JW12011SS is the Metallics part number for the 1/2 x 1-1/2 stainless fender washer in the 100 piece jar. Use that MPN when matching a submittal or reordering to keep the same material and pack size.
