Accentra 6100ED Grade 1 Rim Ex...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,532.65
$1,535.19

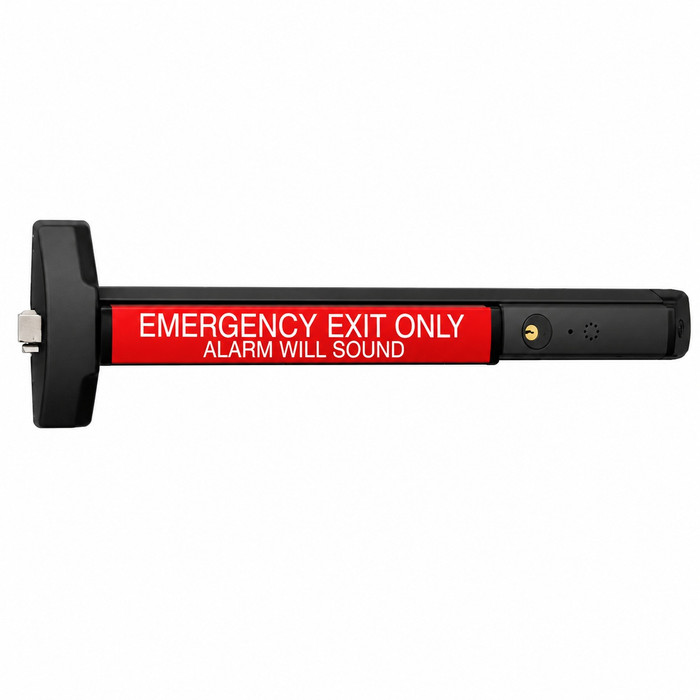

Yale Grade 1 Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, Hex Key Dogging, 30" - 36" Door Opening Width

Accentra 6100ED Grade 1 Rim Exit Device with Wide Stile Pushpad and Hex Key Dogging for 30"-36" Doors

(No reviews yet) Write a Review

Model: 6100ED A-ALR 36 BSP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,532.65
$1,535.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 6100ED Grade 1 Rim Exit Device with Wide Stile Pushpad and Hex Key Dogging for 30"-36" Doors

Professional Grade 1 Exit Device with Alarm Kit and Touchbar Monitor

The Accentra 6100ED Grade 1 Rim Exit Device delivers professional-grade performance for commercial applications requiring reliable exit hardware. This exit-only device features a wide stile pushpad design with hex key dogging and accommodates door opening widths from 30" to 36". The unit includes a battery-powered alarm kit with touchbar monitor switch and "Emergency Exit Alarm Will Sound" touchbar for enhanced security monitoring. ANSI/BHMA Grade 1 certified construction ensures long-term reliability in high-use commercial environments.

Professional Features & Benefits

  • Door Width Compatibility: Designed for 30" to 36" door opening widths with wide stile pushpad configuration for versatile installation options.
  • Grade 1 Durability: ANSI/BHMA Grade 1 certified construction provides exceptional reliability for demanding commercial applications and high-traffic areas.
  • Smooth Operation Design: Unique engineering provides noise reduction and smooth operation of the touch bar for quiet, professional performance.
  • Integrated Alarm System: Battery-powered alarm kit with touchbar monitor switch and "Emergency Exit Alarm Will Sound" touchbar provides security monitoring capabilities.
  • Hex Key Dogging: Convenient hex key dogging mechanism allows authorized personnel to secure the device when needed for maintenance or emergency situations.
  • Modern Architectural Design: Stylish, clean lines blend aluminum rail with architectural finishes to complement any commercial décor.
  • Vandal-Resistant Construction: Multiple security features provide added resistance against vandalism and unauthorized entry attempts.
  • Universal Door Compatibility: Suitable for single doors or pairs of doors constructed of metal, wood, or composite materials for flexible application options.

Technical Specifications

  • Department: Door Hardware
  • Fire Rating: No
  • Product Category: Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Size: 36"
  • Product Subgroup: Exit Devices - Rim
  • Series: 6100 Series
  • Stile: Wide Stile

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Multi-Family Residential Properties
  • Retail Establishments
  • Mixed-Use Commercial Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra exit devices deliver professional-grade reliability with ANSI/BHMA Grade 1 certified construction designed for long life in demanding commercial applications. The robust, modern design combines smooth, quiet operation with multiple security features to provide dependable performance where life safety and security are essential. Engineered for high-use areas with stylish architectural finishes that blend seamlessly with commercial environments.

Product Specs

Series:
6100 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Wide Stile
Product Size:
36"
Fire Rating:
No
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 6100ED A-ALR 36 BSP – Frequently Asked Questions

1) Is the Accentra 6100ED exit device fire rated?
Both ways. The 6100ED is ordered as either a fire rated device or a non-fire-rated one, so the fire rating is a choice you make on the order, not a fixed attribute. On a labeled opening you must specify the fire rated version. Note that fire rated exit devices do not dog, so the hex key dogging feature belongs to the non-rated build.
2) Can I put an exit device on a wood door, or does it have to be metal?
The Accentra 6100ED mounts on metal, wood, or composite doors, on a single leaf or on a pair. That matters if you are hardware-ing a mixed building, because several Grade 1 rim devices we carry are metal-door only: the Delaney 8000, 9000 and F9000 Series rim devices are all listed as not wood door compatible. For a wood stairwell or back-of-house leaf, the 6100ED is the one that works.
3) Does the Accentra 6100ED come with an exit alarm, or is that a separate part?
The alarm is included. The 6100ED ships with a battery powered alarm kit, a touchbar monitor switch, and the "Emergency Exit Alarm Will Sound" touchbar legend. Because it runs on battery, you are not pulling power to the door to get local alarm on an emergency egress leaf, which is what makes it workable on a retrofit where there is no conduit to the opening.
4) Can I add a lever or pull to the outside of the Accentra 6100ED?
No. The 6100ED is an exit only device, so there is no outside trim function and no cylinder to key. Pushing the bar from the secure side is the only way through. If the opening needs keyed or lever entry from outside, you want a rim device ordered with outside trim rather than this exit only build.
5) What is the closest Grade 1 rim exit device to the Accentra 6100ED for a 36-inch door with a built-in alarm?
The Delaney 9000 Series 9000-36ALC is the nearest peer: a Grade 1 heavy duty rim type device sized for a 36-inch door and supplied with an alarm kit and a "C" cylinder. The Accentra 6100ED is also ANSI/BHMA Grade 1 and covers 30-inch to 36-inch door opening widths with a battery-powered alarm kit and touchbar monitor switch. The functional split is at the cylinder: the Delaney 9000-36ALC is catalogued with a "C" cylinder, while the 6100ED is an exit-only device with hex key dogging. Both carry a Fire Rating of No in their base form.
6) What rim exit device works on a 48-inch fire rated opening?
For a 48-inch leaf on a fire rated opening, the Delaney F9000 Series 693302 is the device in the comparable set built for it: a Grade 1 fire rated heavy duty rim type device for a 48-inch door in a stainless steel finish. The Accentra 6100ED is specified for 30-inch to 36-inch door opening widths, so a 48-inch leaf falls outside its range. The 6100ED is offered in both a non-fire-rated and a fire rated configuration, so fire rating alone does not rule it out - the door width does.
7) Can I put the Accentra 6100ED on a wood door, and what are my options if the peer device I was quoted cannot?
The Accentra 6100ED is suitable for single doors or pairs of doors constructed of metal, wood, or composite materials. That matters when cross-shopping, because the Delaney rim devices in the comparable set - the 8000-36, the 9000-36ALC, and the fire rated F9000 693302 - are each listed as Wood Door Compatible: No. On a wood leaf the 6100ED is the device that covers the substrate; on hollow metal, all four remain candidates.
8) Is the Stanley QED111ED a drop-in replacement for the Accentra 6100ED?
It is not the same device, even though both are Grade 1 rim devices with hex dogging. The Stanley Security QED111ED is a Grade 1 heavy duty rim exit device with rim hex dog and electrified dogging, and it is a lockable trim function - Office/Privacy/Apartment. The Accentra 6100ED is an exit-only device with mechanical hex key dogging and no trim function, so it does not provide outside entry. If the opening needs the pushpad dogged remotely on a schedule or access control input, the electrified dogging on the QED111ED is the reason to switch; if the opening only needs to be dogged by hand during business hours, the 6100ED covers it without running power to the door.
9) Should I use a rim exit device or a vertical rod device on my door?
A rim device like the Accentra 6100ED latches into a strike on the frame head or jamb, so it suits a single door in a frame, or one leaf of a pair where there is a mullion or the other leaf is fixed. It is the simplest type to install and the easiest to service, because there are no rods running up and down the door. Where you have a pair of doors with no mullion and both leaves need to swing free, a rim device alone will not secure the opening, and you need a vertical rod device instead.
10) What does hex key dogging on an exit device actually do?
Dogging holds the pushpad depressed so the latch stays retracted and the door pushes open freely, which is how you keep a retail or school entrance in push-pull mode during business hours without unlocking anything electrically. On the 6100ED it is done with a hex key, so maintenance staff can dog and undog it without a dedicated cylinder. Undog it and the latch returns to normal.
11) What is a similar alarmed rim exit device if the Accentra 6100ED is not the right fit?
For a 36 inch metal door where you still want local alarm, the Delaney 9000 Series heavy duty rim device is offered for a 36 inch door with an alarm kit and a "C" cylinder, non-fire-rated, Grade 1. The difference that decides it: the Delaney is not wood door compatible, and it carries a cylinder where the Accentra 6100ED is exit only with hex key dogging.
12) Can I dog an exit device electrically instead of with a hex key?
Not on the Accentra 6100ED, which uses hex key dogging only. If you want the door to go push-pull on a time schedule from the access control system, the Stanley Security Grade 1 heavy duty rim device in the QED series is offered with electrified dogging as well as hex dog. That is the trade: electrified dogging needs power to the door, hex dogging needs someone with a key.
13) I need one Grade 1 rim device model to standardize across a facility with both 36-inch and 48-inch openings. How do the options split?
No single model in the set spans both widths. The Accentra 6100ED 6100 Series covers 30-inch to 36-inch door opening widths in a wide stile pushpad configuration, and is available fire rated or non-fire-rated. The Delaney F9000 Series 693302 is the 48-inch device, Grade 1 and fire rated, in stainless steel. A practical standard is to pair the 6100ED on the 30-inch to 36-inch leaves with the F9000 693302 on the 48-inch leaves - both are ANSI/BHMA Grade 1, so the durability spec stays consistent across the facility even though the model changes with the width. On the 36-inch openings, the Delaney 8000-36 and 9000-36ALC are the same-brand Grade 1 alternatives if you would rather keep one manufacturer across the smaller leaves.
14) Which of these rim exit devices give me outside entry through a trim, and which are exit only?
The Stanley Security QED111ED is the one in the group with a stated Product Function of Office/Privacy/Apartment, so it is set up as a lockable-trim device rather than pure egress hardware. The Accentra 6100ED is an exit-only rim device with hex key dogging - it releases the latch from the inside and is dogged by hand when the opening needs to stay free, with no outside trim function. On a back-of-house door that staff also need to enter through with a key, the function code on the QED111ED is what you are buying; on a stair or rear egress door that is exit only by design, the 6100ED matches the opening.
15) Will the Accentra 6100ED match the look of the other doors in my building?
The 6100ED pairs an aluminum rail with architectural finishes and a flat, clean-lined touchbar, so it reads as a modern device rather than a heavy institutional bar. For a property manager standardizing a floor or a building, the practical point is that it covers 30 to 36 inch openings on metal, wood, and composite leaves, which is most of a typical commercial door schedule, so one device type can carry across the openings.
16) Where do I find the door prep and template for installing the Accentra 6000 Series exit device?
Accentra publishes a 6000 Series catalog, a 6000 Series parts manual, and plastic installation template instructions, all three of which ZenSupply carries alongside the 6100ED. Work from the template to mark the mounting holes and the strike location before you drill, since a rim device's latch has to line up with the frame strike or it will not latch cleanly.
