Accentra 6100ED Grade 1 Rim Ex...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,404.98
$810.56

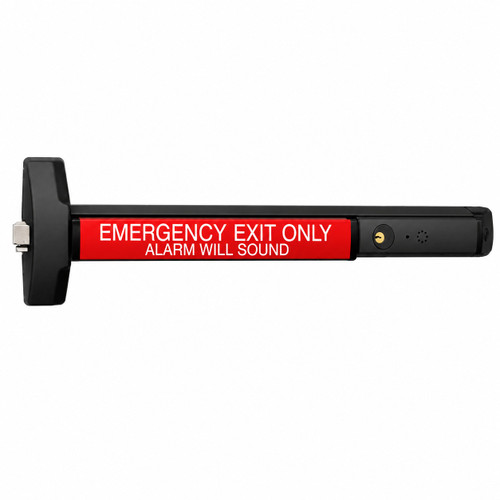

Yale 6100ED Grade 1 Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, Hex Key Dogging, 30" - 36" Door Opening Width, Less Trim

Accentra 6100ED Grade 1 Rim Exit Device with Wide Stile Pushpad and Hex Key Dogging

(No reviews yet) Write a Review

Model: 6100ED 36 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,404.98
$810.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 6100ED Grade 1 Rim Exit Device with Wide Stile Pushpad and Hex Key Dogging

Professional Commercial Exit Device Solution

The Accentra 6100ED Grade 1 rim exit device combines robust construction with modern design for demanding commercial applications. Designed for 30" - 36" door opening widths with wide stile pushpad configuration, this exit-only device features hex key dogging and ANSI/BHMA Grade 1 certification for long-lasting performance. The aluminum rail construction with architectural finishes provides both durability and visual appeal for office buildings, retail environments, and mixed-use facilities.

Professional Features & Benefits

  • Door Width Compatibility: Designed for 30" - 36" door opening widths with wide stile pushpad configuration for versatile installation options.
  • ANSI/BHMA Grade 1 Certification: Meets the highest commercial standards for durability and performance in high-use applications.
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar for enhanced user experience.
  • Robust Construction: Aluminum rail with architectural finishes combines strength with attractive, modern styling that blends with any décor.
  • Hex Key Dogging: Convenient dogging mechanism allows authorized personnel to hold the latch in the retracted position when needed.
  • Vandal-Resistant Design: Multiple security features provide added resistance against vandalism and unauthorized entry attempts.
  • Wide Application Range: Suitable for single doors or pairs of doors constructed of metal, wood, or composite materials in commercial facilities.

Technical Specifications

  • Department: Door Hardware
  • Device Type: Rim Devices
  • Fire Rating: No
  • Product Category: Exit Devices
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Size: 36"
  • Product Subgroup: Exit Devices - Rim
  • Series: 6100 Series
  • Stile: Wide Stile
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra exit devices deliver professional-grade reliability with aluminum rail construction and ANSI/BHMA Grade 1 certification for demanding commercial applications. The robust design withstands the rigors of multi-family, retail, office, and other commercial exits while providing smooth, quiet operation. Engineered for high-use areas where dependable performance and modern styling are essential.

Product Specs

Series:
6100 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Wide Stile
Device Type:
Rim Devices
Wood Door Compatible:
No
Product Function:
Exit Only
Product Size:
36"
Fire Rating:
No
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 6100ED 36 630 – Frequently Asked Questions

1) What door widths does the Accentra 6100ED cover?
The 6100ED is built for 30 to 36 inch door opening widths, and the device itself is a 36 inch size that gets cut or sized down within that range. Anything wider than a 36 inch leaf needs a different device length.
2) Is the Accentra 6100ED a wide stile or narrow stile exit device?
Wide stile. The 6100ED uses a wide stile pushpad, which suits hollow metal and wide-stile aluminum doors. On a narrow stile storefront leaf there isn't enough face material for a wide stile pad, so that opening needs a narrow stile device instead.
3) Does the Accentra 6100ED come with outside trim or a lever?
No trim is included. The 6100ED is an exit-only device, meaning it releases from the inside push bar and has no outside operating trim or cylinder. If you need entry from the outside, you need a device configured for outside trim, not this one.
4) The Accentra 6100ED is not fire rated - what rim exit device should I use on a fire rated opening?
Use the Delaney F9000 Series heavy duty rim type device, which is a Grade 1 fire rated rim device built for a 48 inch door. The Accentra 6100ED is a Grade 1 rim device with a fire rating of No, so it belongs on an opening with no fire label. Where the door is part of a rated assembly, the F9000 Series is the rim device in this group that carries the fire rating. Note the F9000 in this configuration is sized for a 48 inch door while the 6100ED is sized at 36 inches, so confirm the leaf width before ordering.
5) What is the closest equivalent to the Accentra 6100ED rim exit device for a 36 inch door?
The Delaney 8000 Series rim device for a 36 inch door is the nearest straight equivalent. Both are Grade 1 rim-type exit devices sized for a 36 inch door, both are non-fire-rated, and neither is rated for wood doors. The Accentra 6100ED carries a wide stile pushpad and hex key dogging; the Delaney 8000 Series is specified as a Grade 1 rim device for a 36 inch door. If the opening is a metal or composite door needing a non-rated Grade 1 rim device, either fits the same slot on the schedule.
6) I need a rim exit device that sounds an alarm when the door is pushed open - is the Accentra 6100ED that device?
No. The Accentra 6100ED is an exit only rim device with hex key dogging and no alarm function. For a local alarm at the door, the Delaney 9000 Series heavy duty rim type device for a 36 inch door comes with an alarm kit and a "C" cylinder, and is a Grade 1 non-fire-rated rim device like the 6100ED. Both suit a 36 inch metal or composite leaf, so the alarm and cylinder are the deciding difference rather than the size or grade.
7) What rim exit device do I use when the opening needs an outside lever that locks and unlocks, not just free egress?
The Accentra 6100ED is an exit only device, so it pushes to exit and offers no keyed or lockable outside function. Where the opening needs an office, privacy, or apartment function on the outside, the Stanley Security QED heavy duty exit device is a Grade 1 rim device carrying an Office/Privacy/Apartment function. It also has rim hex dogging like the 6100ED, plus electrified dogging, so a tenant suite or office door that must secure from the corridor side is the case for the QED rather than the 6100ED.
8) Should I use a rim exit device or a vertical rod device on my opening?
A rim device like the 6100ED latches into a strike on the frame at the lock edge, so it fits a single door or a pair with a center mullion. On a pair with no mullion, there is nothing at the lock edge for the rim latch to catch, and you need a vertical rod device that latches at the head and sill instead.
9) How does dogging work on the Accentra 6100ED, and can I hold the door in push-open mode during business hours?
Yes. Hex key dogging lets authorized staff retract and hold the latch with a hex key, so the door pushes open freely during open hours and relatches when undogged. It's a mechanical function, no power required. If you need dogging controlled electrically from a panel or access system, the Stanley QED Grade 1 rim device is offered with electrified dogging.
10) Is the Accentra 6100ED strong enough for a high traffic exit like a school or apartment lobby?
It's certified ANSI/BHMA Grade 1, the top commercial durability level, which is what you want on a heavily cycled exit. The rail is aluminum with architectural finishes, and the latch is a Pullman type. Grade 1 is the level typically specified for schools, healthcare, and multi-family exits.
11) I need an exit device that also allows key entry from outside. Is the 6100ED it?
No. The 6100ED is exit only, no outside trim. For an opening where staff need to get back in, look at a rim device ordered with keyed lever trim, or the Stanley QED Grade 1 rim device, which is listed with an office/privacy/apartment function rather than exit only.
12) Can I put the Accentra 6100ED or any of these rim devices on a wood door?
No. The Accentra 6100ED is not wood door compatible, and neither is the Delaney 8000 Series Grade 1 rim device for a 36 inch door, the Delaney 9000 Series with alarm kit, or the Delaney F9000 Series fire rated rim device. All four are specified for non-wood leaves. If the schedule calls out a wood leaf, none of these is the right device and the opening needs a device listed for wood construction.
13) I want the same hex key dogging the Accentra 6100ED has but with the ability to dog the device electrically on a schedule - what should I look at?
The Stanley Security QED heavy duty exit device is a Grade 1 rim device with rim hex dogging and electrified dogging. The Accentra 6100ED uses hex key dogging, which is set by hand at the door by authorized personnel. If a building wants the latch held retracted during business hours from an access control schedule rather than by someone walking to each leaf with a hex wrench, the QED adds the electrified dogging while keeping the hex dog as the mechanical means.
14) What finishes does the Accentra 6100ED exit device come in?
Four finishes: 613E dark oxidized satin bronze equivalent, 629 bright stainless steel, 630 satin stainless steel, and BSP black suede powder coat. For matching a run of existing openings, 630 satin stainless is the usual commercial standard and 629 is the polished version of it.
15) Do I need a separate strike for the Accentra 6100ED, and where does it mount?
A rim device latches into a surface strike mounted on the frame stop at the lock edge, or onto a mullion when it's a pair. Plan the frame prep for that strike location. The device itself mounts to the door face using the manufacturer templates, with holes drilled and the rail secured to the door.
16) For a facility standardizing on Grade 1 rim exit devices across several non-rated openings, which options match on grade?
The Accentra 6100ED is ANSI/BHMA Grade 1 with a fire rating of No. Matching on grade for non-rated openings, the Delaney 8000 Series rim device for a 36 inch door and the Delaney 9000 Series heavy duty rim device for a 36 inch door with alarm kit are both Grade 1 and both non-fire-rated. The Stanley Security QED heavy duty rim exit device is also Grade 1, and carries an Office/Privacy/Apartment function where an opening needs more than free egress. Standardizing across a facility usually means picking one rail family and varying the function, so sort the openings by whether they need exit only, alarmed, or a locking outside function.
