Metallics JFMP127 10-24 x 3 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP127 10-24 x 3 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP127
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.60
$0.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 3 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with Phillips Drive
    • 10-24 Diameter, 3" Length
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.01 lbs
Product Width:
3.5 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1050 lb minimum
Thread Per Inch:
24
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP127 – Frequently Asked Questions

1) Is the Metallics JFMP127 machine screw sold individually or by the box?
The JFMP127 ships as a jar of 100 screws, and 100 is the order minimum. So you are buying a jar, not a loose piece. The packed jar weighs 2.01 lbs.
2) What thread does a 10-24 x 3 in. flat head machine screw take, and will it run into a standard 10-24 tapped hole?
It is a #10 screw with 24 threads per inch, UNC (coarse) thread cut to ANSI/ASME B1.1. That is the standard 10-24 machine screw thread, so it will run into any 10-24 tapped hole or 10-24 nut, including device boxes and fixture straps tapped 10-24.
3) Does the Metallics JFMP127 screw meet Buy American requirements for a government job?
No. The JFMP127 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your project carries a domestic sourcing clause, this is the wrong line item.
4) What size Phillips bit drives these Metallics flat head screws?

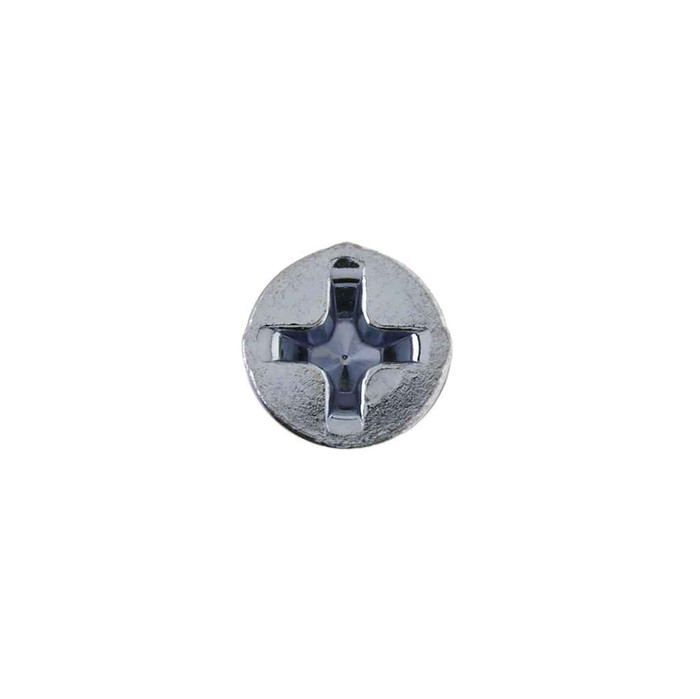

A #2 Phillips. The recess measures 0.198 in. diameter, 0.124 in. deep, with a 0.032 in. slot width, which is standard #2 geometry. Use a sharp #2 bit; a #1 will cam out and a #3 will not seat.
5) Is a zinc plated steel machine screw okay for outdoor or damp locations?
These are steel with a zinc finish, which is a plating for dry indoor service. For wet locations, exterior mounting, or anywhere washdown or salt is a factor, specify a stainless 10-24 machine screw instead. The zinc yellow finish is common in electronics and panel work.
6) How much load will a 10-24 steel zinc machine screw hold?
Rated at 1,050 lb minimum tensile, with the steel running Rockwell B70 to B100 hardness from AISI 1006-1022 stock. That is a general-purpose low carbon machine screw, not a structural or graded bolt, so size it for fixture and device mounting rather than for structural loads.
7) Is the 3 inch length measured including the head?
Length is 3 in. Flat head screws are measured overall, head included, under ASME B18.6.3-1998, so the usable grip below the surface of a countersunk hole is the full 3 in. less the head height of 0.098 to 0.116 in.
8) What are 10-24 x 3 in. flat head machine screws typically used for?
Long 10-24 flat heads like this are stocked for electrical, plumbing, and HVAC work: pulling device plates and fixture straps through thick build-ups, reaching into deep boxes or through furring and plaster rings, and general panel and equipment mounting where the head has to finish flush.
