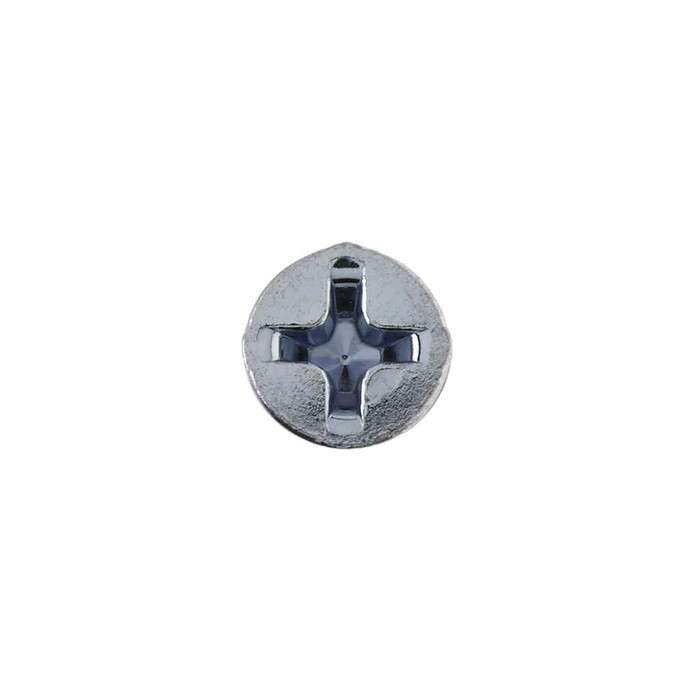

Metallics JFMP31 10-24 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JFMP31 10-24 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFMP31
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.43
$0.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 2 in. Flat Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with Phillips Drive
    • Steel Zinc Material
    • 10-24 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.41 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1050 lb minimum
Thread Per Inch:
24
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFMP31 – Frequently Asked Questions

1) Will a Metallics JFMP31 10-24 screw thread into a standard 10-24 tapped device box or fixture strap?
Yes. The JFMP31 is a 10-24 UNC machine screw, 24 threads per inch, cut to ANSI/ASME B1.1. That is the same thread used on tapped holes in steel device boxes, fixture straps and mounting ears, so it runs straight in with no tapping or thread-forming.
2) Is 2 inches too long for mounting a device or plate in a standard box?
Often, yes. At 2 inches of length the JFMP31 is meant for stacked build-ups: extension rings, deep plaster rings, spacers, through-bolting a strap or ganged assembly. For a plain yoke-to-box device mounting you normally want a much shorter 10-24. Buy the 2 inch when you are picking up threads behind a thick sandwich of material, not for flush work.
3) Will these Metallics machine screws meet a Buy American or ARRA requirement on a federal job?
No. The JFMP31 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project carries a domestic-sourcing clause, this screw will not satisfy it.
4) What size Phillips bit drives these 10-24 machine screws?
A #2 Phillips. The recess is 0.198 in. diameter, 0.124 in. deep and 0.032 in. wide at the slot, which is the standard #2 geometry. A #1 will cam out and chew the recess; a #3 will not bottom.
5) How many screws come in a jar, and can I buy fewer?
The JFMP31 ships as a jar of 100. The order minimum is one jar, so 100 pieces is the smallest quantity.
6) Is zinc-plated steel OK outdoors or in a damp location?
Zinc plating over steel gives indoor corrosion protection and nothing more. For wet, washdown or exterior work the plating will eventually give up and the steel will rust. Keep the JFMP31 to dry interior electrical, plumbing and HVAC applications and specify stainless where moisture is constant.
7) Do these screws meet a spec that calls for ASME B18.6.3 flat head machine screws?
Yes. Head and recess dimensions on the JFMP31 are built to ASME B18.6.3-1998, with threads to ANSI/ASME B1.1. Gaging diameter is 0.313 in. with head protrusion 0.025 to 0.042 in. above gage, which is how an inspector verifies the flat head geometry.
8) Can I get this 10-24 flat head Phillips screw in other lengths or pack sizes?
Yes. The Metallics FM and FMP series covers other diameters, lengths and quantities beyond the 2 inch JFMP31 jar of 100, available by request.
