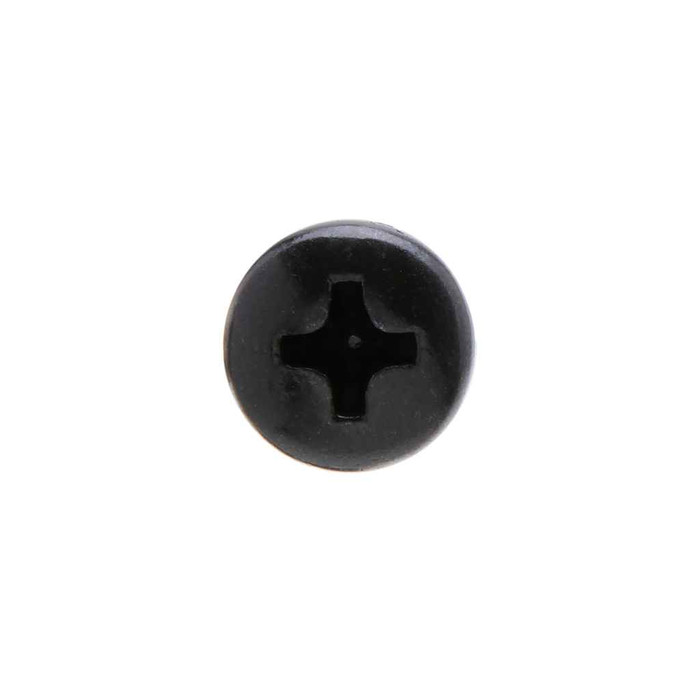

Metallics JPMP1032BLK 10-32 x 1 in. Pan Head Phillips Machine Screws - Black Oxide - 100qty

Metallics JPMP1032BLK 10-32 x 1 in. Pan Head Phillips Machine Screws - Black Oxide - Each

(No reviews yet) Write a Review

Model: JPMP1032BLK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.25
$0.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Pan Head Phillips Machine Screws - Black Oxide - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with Phillips Drive
    • 10-32 Diameter, 1" Length
    • Black Oxide Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Black Oxide
Product Details:
Machine Screw
Product Material:
Black Oxide

Metallics JPMP1032BLK – Frequently Asked Questions

1) Is black oxide okay for outdoor or damp locations?
No. Black oxide is a dark conversion coating for appearance and mild indoor corrosion resistance, not a weathering finish. For wet, exterior, or washdown work, go with a stainless or hot dip galvanized 10-32 screw instead. Use the black oxide where a dark, low-visibility head is wanted on interior device and panel work.
2) Are these screws Buy American or ARRA compliant for a government job?
No on both counts. The JPMP1032BLK is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your project has domestic sourcing requirements on fasteners, this is not the part to submit.
3) What size Phillips bit do I need for these Metallics 10-32 pan head screws?
A #2 Phillips. The recess is sized at 0.192 inch diameter with a gaging depth of 0.089 to 0.113 inch, so a #2 driver seats fully. A #1 will cam out and chew the recess; a #3 will ride high.
4) How much room does the pan head take up on the surface?
The pan head measures 0.357 to 0.373 inch across and sits 0.122 to 0.133 inch proud of the surface. That is low enough to clear most cover plates and trim rings, but it is not a flush fastener, so if the drawing calls for a countersunk finish you want a flat head instead.
5) How many Metallics JPMP1032BLK screws come in a jar?
They ship in a jar of 100, and 100 count is the order minimum. Handy for a service van or a shop bin rather than buying loose pieces.
6) How strong is this 10-32 machine screw, and what is it made of?
Low carbon steel to AISI 1006-1022, with a 60,000 psi minimum tensile strength and a hardness of Rockwell B70 to B100. That is standard commercial grade fastener territory, fine for device mounting, panel covers, brackets, and enclosure hardware. For a structural or high-load joint you want a graded alloy bolt, not a low carbon machine screw.
7) Do these Metallics machine screws meet a recognized dimensional spec for submittals?
They are made to ASME B18.6.3-2010, the dimensional standard for inch series machine screws, so head, thread, and recess geometry are interchangeable with any other screw built to that spec. That is the reference to put on a submittal when a spec calls for standard pan head Phillips machine screws.
