Metallics JFM33 10-32 x 1/2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.11
$0.11

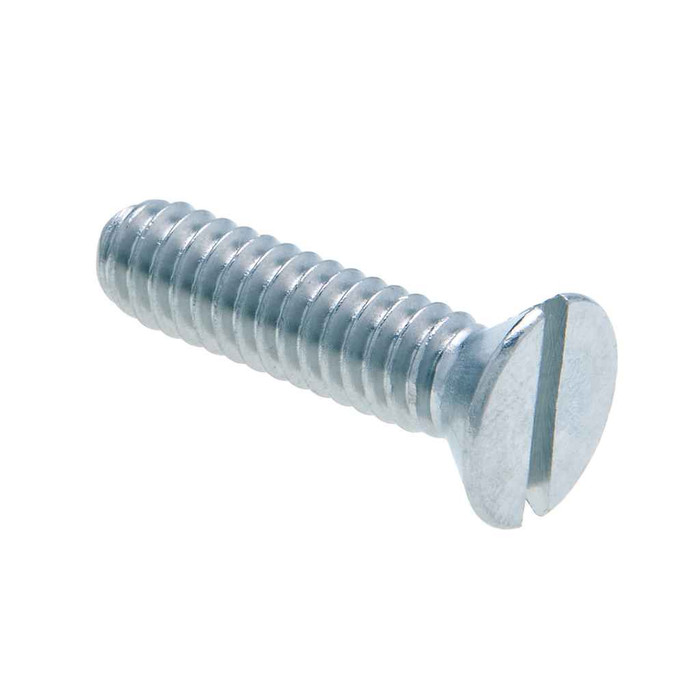

Metallics JFM33 10-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM33 10-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM33
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • 10-32 Diameter, 1/2" Length
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.5 lbs
Product Width:
3 in
Slot Depth:
0.034 - 0.053
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM33 – Frequently Asked Questions

1) Will a Metallics JFM33 10-32 machine screw thread into a standard electrical box or device ring?
The JFM33 is a 10-32 UNF machine screw with 32 threads per inch, cut to the ANSI/ASME B1.1 thread standard. That is the same 10-32 thread used for device mounting holes in outlet boxes, plaster rings and cover plates, so it threads into those tapped holes. At 1/2 inch long it suits mounting straps and covers rather than deep stack-ups.
2) Will the flat head on these 10-32 screws sit flush, and how big is the head?
Flat head, so it seats flush in a countersunk hole. Head width runs 0.333 to 0.362 in. and head height 0.098 to 0.116 in., dimensioned to ASME B18.6.3-1998. If the plate or bracket you are fastening has a flat countersink of roughly 82 degrees, the head drops in level with the surface; a plain drilled hole without a countersink will leave the head proud.
3) Do Metallics JFM33 machine screws meet Buy American or ARRA requirements for a government job?
No. The JFM33 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this screw will not satisfy it.
4) How many 10-32 x 1/2 in. Metallics screws come in a jar?
The JFM33 ships as a jar of 100, and the jar is the order minimum. If you need a different count or a different length in the FM and FMP series, other sizes and quantities are available by request.
5) Can I use these steel zinc screws outdoors or in a wet location?
Zinc-plated carbon steel is a dry-location finish. It handles indoor panel, box and fixture work, but in damp, exterior or washdown environments the plating sacrifices and the steel underneath will rust. For those openings specify a stainless machine screw in the same 10-32 x 1/2 in. size.
6) Is a 10-32 machine screw the same as a sheet metal or self-tapping screw?
No. A machine screw like the JFM33 has a uniform 32-pitch UNF machine thread meant to go into a pre-tapped hole or a nut, with no point to start its own thread. If you are fastening into bare sheet metal with only a drilled hole, you want a self-tapping sheet metal screw or you need to tap the hole 10-32 first.
7) How much does a jar of 100 Metallics 10-32 x 1/2 in. screws weigh?
A jar of the JFM33 comes in at 0.5 lbs, with the jar measuring 3 in. long by 3 in. wide by 2.15 in. high. Useful if you are loading a van bin or a service cart with several sizes.
