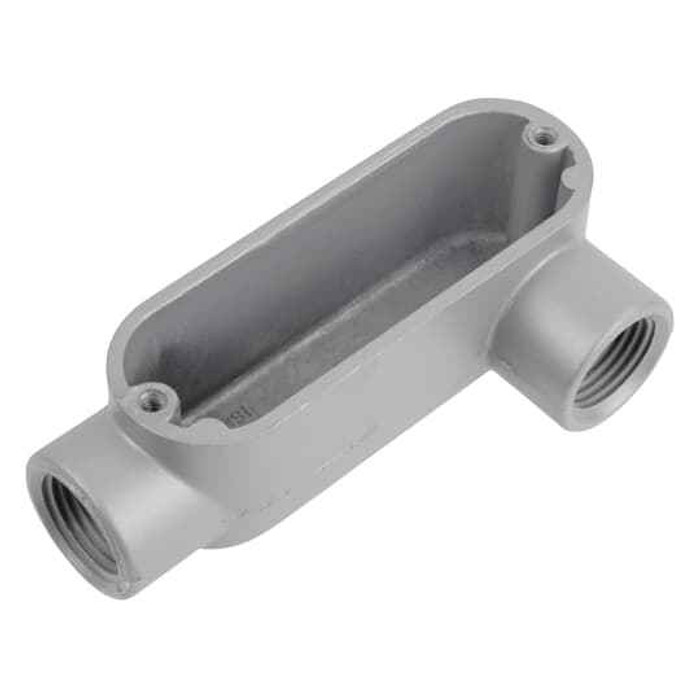

2-1/2 INCH RIGID LL CONDUIT BODY
Manufacturer Resources
Product Specs
- Application:
- For Use with Rigid/IMC Conduit
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- Conduit Body - Series A - Rigid/IMC
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies
- Product Material:
- Aluminum Die Cast
Red Dot ALL-7 – Frequently Asked Questions
1) What does the LL designation on the Red Dot ALL-7 conduit body mean, and which side does the opening face?
LL is a left-side access body: the conduit runs straight through and the removable cover opening sits on the left side of the run when you view it from the back with the conduit hubs horizontal. An LR has that opening on the right, and a C body has it in line with the run. Pick LL or LR based on which way the wall or obstruction lets you reach in to pull. The ALL-7 is sized for 2-1/2 inch rigid or IMC conduit.
2) Will the Red Dot ALL-7 thread onto IMC, or is it rigid conduit only?
Both. The ALL-7 is listed for use with rigid and IMC conduit, which share the same threaded hub dimensions at 2-1/2 inch trade size. It will not accept EMT, which is unthreaded and needs a set-screw or compression type fitting instead.
3) What is the Red Dot ALL-7 conduit body made of, and can I use it with aluminum conduit runs?
Die cast aluminum. That makes it a natural match for aluminum rigid conduit, and it avoids the galvanic pairing you get when you mix dissimilar metals in a wet or coastal location. If your run is galvanized steel rigid, many specs still allow an aluminum body, but check the job spec, since some marine and corrosive-duty specs call for all one metal.
4) Is a cover and gasket included with the Red Dot ALL-7, or do I order those separately?
The ALL-7 is the conduit body itself. Series A style bodies in 2-1/2 inch take a separate cover and, where a gasket is required by the location, a separate gasket, so plan on ordering the matching cover and gasket for the trade size alongside the body.
5) Can I use a 2-1/2 inch LL conduit body like the ALL-7 as a pull point instead of installing a pull box?
That is the normal use for it. An LL body gives you a cover opening at a change of direction so you can feed and pull conductors on a 2-1/2 inch rigid or IMC run without building a box. The limit is conductor splicing and fill: a conduit body used for splices has to be marked with its volume and sized for the conductors, so on large 2-1/2 inch conductor counts a junction box is often the right call instead.
6) What is the correct part number to order a 2-1/2 inch Red Dot left-hand conduit body?
ALL-7 is the Red Dot manufacturer part number for the 2-1/2 inch LL aluminum conduit body. That one number covers it, there are no finish or size options to specify.
