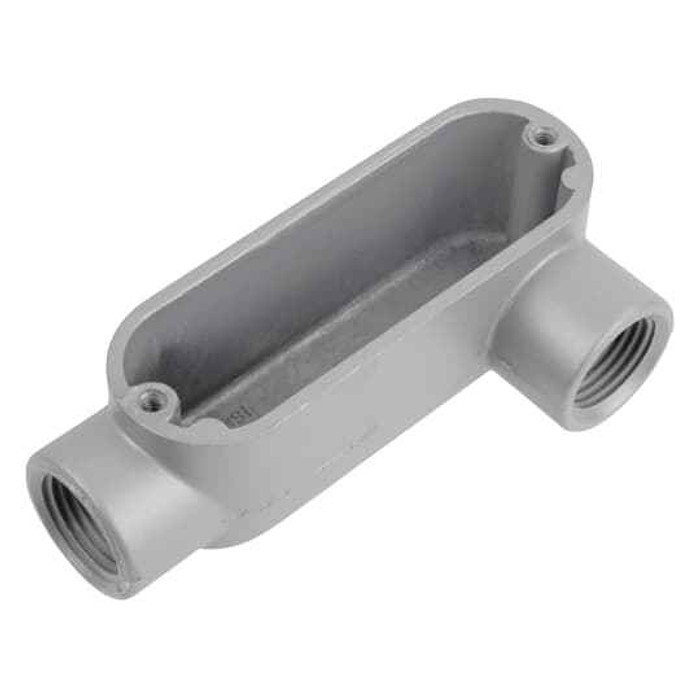

4 INCH RIGID LL CONDUIT BODY
Manufacturer Resources
Product Specs
- Application:
- For Use with Rigid/IMC Conduit
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- Conduit Body - Series A - Rigid/IMC
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies
- Product Material:
- Aluminum Die Cast
Red Dot ALL-10 – Frequently Asked Questions
1) Will the Red Dot ALL-10 conduit body work with 4 inch rigid steel or IMC conduit?
Yes. The ALL-10 is a 4 inch Series A conduit body built for rigid metal and IMC conduit, so it threads onto standard 4 inch trade size rigid or IMC runs. It is not intended for EMT, which uses compression or set-screw connectors rather than threaded ends.
2) I need a left-hand 4 inch pull point on a rigid run. Is the ALL-10 the right part number?
Yes, for a 4 inch trade size rigid or IMC run needing a left-hand turn, the Red Dot part is ALL-10. The A in the number is the Series A body family and the 10 is the 4 inch size in Red Dot's numbering. Confirm the trade size of the conduit, not the OD, when matching.
3) Is the Red Dot ALL-10 aluminum or steel, and can I use it with galvanized rigid conduit outdoors?
Die cast aluminum. Aluminum conduit bodies are standard on galvanized rigid and IMC runs and are commonly used outdoors, but in highly corrosive settings (coastal salt spray, chemical plants, de-icing salt exposure) many specs call for a PVC-coated or malleable iron body instead. For ordinary exterior commercial work, aluminum is the normal choice.
4) Does the Red Dot ALL-10 come with a cover and gasket, or do I order those separately?
Order the ALL-10 as the conduit body itself, model ALL-10. Series A bodies in this size take a matching Series A cover and gasket sized to the body, and those are separate catalog items from the body. If the opening needs to be weatherproof, you need both the cover and the gasket on hand at install.
5) Can I use a 4 inch LL conduit body like the Red Dot ALL-10 as a splice box?
No. Conduit bodies of this type are pull and access fittings, not splice enclosures, unless the body is specifically marked with a cubic inch volume for conductors. Use the ALL-10 to make the directional pull and get a hand into the run; put splices in a box or a marked body with adequate volume.
