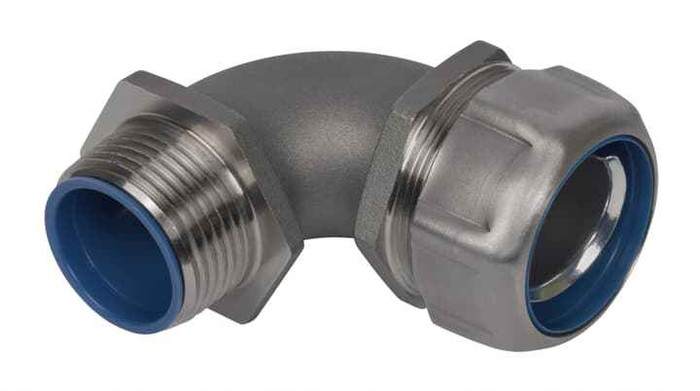

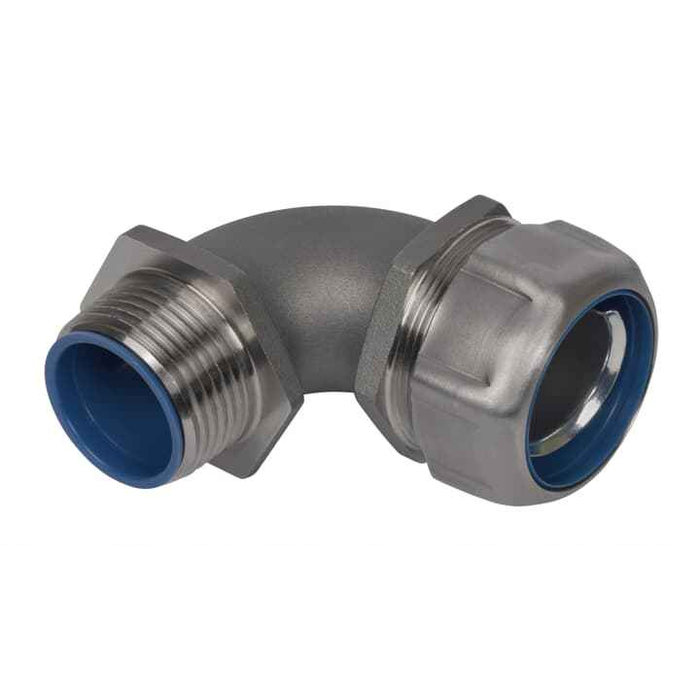

3/4 90 DEG HT 316 SS LT W/SS GCONE
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- 90 Degree Fitting for Flexible Metallic Conduit
- Department:
- Electrical
- Product Color:
- Metallic
- Product Material:
- 316 Stainless Steel with Duraplated Ground Cone
Thomas & Betts 5353SST6-6HT – Frequently Asked Questions
1) What size conduit does the Thomas & Betts 5353SST6-6HT fitting take?
It's a 3/4 inch trade size connector, and it's a 90 degree elbow style, so the conduit leaves the box at a right angle. Ordering part number is 5353SST6-6HT.
2) Is the 5353SST6-6HT for liquidtight flexible metal conduit or for standard flex?
This is a liquidtight fitting (the LT in the 5353SST6-6HT description) for flexible metallic conduit. Use it on liquidtight flex where the sealing ring matters; plain greenfield/flex uses a different squeeze or screw-in connector.
3) Will a stainless liquidtight connector hold up in a washdown or coastal environment?
The body is 316 stainless steel, the grade specified for chlorides and salt exposure, so it suits food processing washdown areas, wastewater plants, and coastal or marine installations where zinc die cast or plated steel connectors corrode.
4) Does the 5353SST6-6HT bond the conduit, or do I need a separate ground?
It includes a Duraplated ground cone, which bites the convoluted metal core of the liquidtight flex and carries the bond through the fitting to the enclosure. No add-on grounding bushing or bonding locknut is part of the assembly.
5) What is the HT in the Thomas & Betts 5353SST6-6HT part number?
HT is the high temperature version of the 5353 series liquidtight connector. Spec it where the run sees elevated ambient heat, such as near ovens, boilers, or engine and turbine skids, rather than the standard temperature connector.
6) Should I use a 90 degree liquidtight connector or a straight one with a bend in the flex?
Use the 90 when the enclosure sits tight against a wall, floor, or machine frame and you don't have the depth to sweep the flex. A straight connector plus a loop of conduit is fine when there's room and keeps one less fitting in the run. This 3/4 inch fitting is fixed at 90 degrees, so it can't be dressed to another angle after install.
