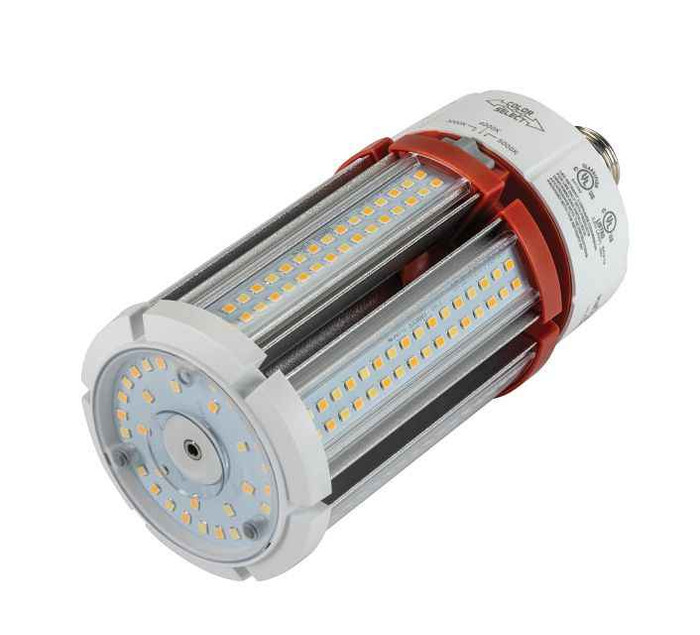

Keystone 36W LED HID Replacement Lamp with Power Select & Color Select Technology E26 Base

Keystone 36W LED HID Replacement Lamp with Power Select & Color Select Technology E26 Base

(No reviews yet) Write a Review

Model: KT-LED36PSHID-E26-8CSB-D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$152.89
$60.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 36W LED HID Replacement Lamp with Power Select & Color Select Technology

Advanced selectable LED technology for versatile lighting applications

The Keystone LED HID Replacement Lamp delivers professional-grade lighting performance with innovative Power Select and Color Select technology. This 36W LED lamp features E26 base compatibility and 120-277V input voltage, making it suitable for diverse commercial and industrial applications. With selectable power options and color temperature flexibility, this lamp provides optimal lighting solutions while replacing traditional 150W metal halide fixtures.

Professional Features & Benefits

  • Selectable Power Options (36/27/18W): Customize wattage to match specific lighting requirements and optimize energy consumption for different applications.
  • Color Temperature Selection (3000/4000/5000K): Choose the ideal color temperature for your environment, from warm white to daylight, enhancing visual comfort and productivity.
  • High Lumen Output (4800/5200/5000): Delivers exceptional brightness levels that effectively replace traditional 150W metal halide lamps while consuming significantly less energy.
  • Universal Voltage Compatibility (120-277V): Works with standard and commercial voltage systems, providing installation flexibility across various facilities.
  • 360-Degree Beam Angle: Provides comprehensive light distribution for uniform illumination in all directions, ideal for area lighting applications.
  • 50,000-Hour Rated Life: Extended operational life reduces maintenance costs and lamp replacement frequency compared to traditional HID lighting.
  • 5-Year Warranty: Backed by comprehensive warranty coverage, ensuring long-term reliability and peace of mind for professional installations.

Technical Specifications

  • Accessory Device: No
  • Base Type: E26
  • Beam Angle: 360
  • Cec T20: No
  • Cri: >80
  • Dimming: Step Dimmable
  • Dlc: No
  • Dlc Premium: No
  • Energy Star: No
  • Input Voltage: 120-277
  • Lamp Technology: B
  • Lamp Type: HID Replacement
  • Led Module Included: No
  • Legacy Equivalent: 150W MH
  • Not Suitable For Sale In California: No
  • Product Weight: 1.8 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Selectable Lumens Output: 4800/5200/5000
  • Selectable Power: 36/27/18
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Warehouse and Industrial Facilities
  • Commercial Retail Spaces
  • Parking Garages and Structures
  • Manufacturing Plants
  • Distribution Centers
  • Outdoor Area Lighting
  • High-Bay Lighting Retrofits

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions with proven performance and durability. This HID replacement lamp is backed by a comprehensive 5-year warranty and features high-quality construction with 1.8 lbs robust design. The >80 CRI rating ensures excellent color rendering for professional environments, while the 50,000-hour rated life provides long-term value and reduced maintenance requirements.

Manufacturer Resources

Product Specs

Accessory Device:
No
Base Type:
E26
Beam Angle:
360
Cec T20:
No
Cri:
>80
Dimming:
Step Dimmable
Dlc:
No
Dlc Premium:
No
Energy Star:
No
Input Voltage:
120-277
Lamp Technology:
B
Lamp Type:
HID Replacement
Led Module Included:
No
Legacy Equivalent:
150W MH
Not Suitable For Sale In California:
No
Product Weight:
1.8 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Lumens Output:
4800/5200/5000
Selectable Power:
36/27/18
T24 Ja8:
No
Ul:
No
Warranty Years:
5
Wireless Control:
No

Keystone KT-LED36PSHID-E26-8CSB-D – Frequently Asked Questions

1) Does this Keystone HID replacement lamp need the existing ballast removed, or does it run on the ballast?
This is a line voltage lamp, not a ballast-compatible retrofit. It accepts 120-277V input, so the HID ballast has to be bypassed and the socket wired direct to line voltage. That is the same wiring work on a 120V or a 277V circuit, which is why the single lamp covers both commercial and industrial panels.
2) How do I set the wattage and color temperature on a Keystone Power Select / Color Select lamp?
Both are selected on the lamp itself before it goes in the fixture, using the onboard switches. Power Select gives you 36W, 27W or 18W, and Color Select gives 3000K warm white, 4000K neutral or 5000K daylight. There is no controller, no programming and no wireless setup involved, so each lamp is set by hand at install.
3) Is this Keystone lamp dimmable on a standard dimmer?
No. It is step dimmable only, meaning output changes in fixed steps through the Power Select setting rather than smoothly on a 0-10V or phase dimmer. If your spec calls for continuous dimming or occupancy-based daylight harvesting, this lamp will not do it.
4) What light output do I actually get at each wattage setting on this 36W Keystone lamp?
Output runs 4800, 5200 and 5000 lumens across the selectable settings on the 36/27/18W lamp. Note the lumens do not simply scale with wattage, so if you are specifying for a footcandle target in a warehouse or parking structure, pick the setting by the lumen figure rather than assuming the highest wattage is the brightest.
5) Will this lamp light evenly in an open high bay or a wallpack-style HID fixture?
The lamp is a 360 degree beam angle omnidirectional type, so it throws light in all directions the way the HID arc tube it replaces did. That suits open high bays, parking garages and area lighting where the reflector does the aiming. In a tightly enclosed or deeply shrouded fixture some of that 360 degree output gets trapped, so a directional lamp is the better choice there.
6) Does this lamp qualify for a DLC or Energy Star utility rebate?
No. The KT-LED36PSHID-E26-8CSB-D is not DLC listed, not DLC Premium, and not Energy Star qualified. Most utility prescriptive rebate programs for commercial lighting require a DLC listing, so budget this retrofit without a rebate unless your utility runs a custom program.
7) How does buying one selectable Keystone lamp simplify stocking for a facility with mixed lighting?
One part number covers three wattages and three color temperatures, so a maintenance crew can carry a single lamp on the truck and set it to match whatever opening or bay they are servicing. Rated life is 50,000 hours, which cuts relamping trips in high bays and garages compared with HID. Each lamp weighs 1.8 lbs.
8) Is the color quality good enough for a retail sales floor or inspection area?
CRI is greater than 80, which is the normal commercial threshold and a clear step up from the aging metal halide it replaces. With 3000K, 4000K and 5000K all selectable from the same lamp, you can match a warm retail floor or run 5000K in a shop or inspection bay off a single part number.
