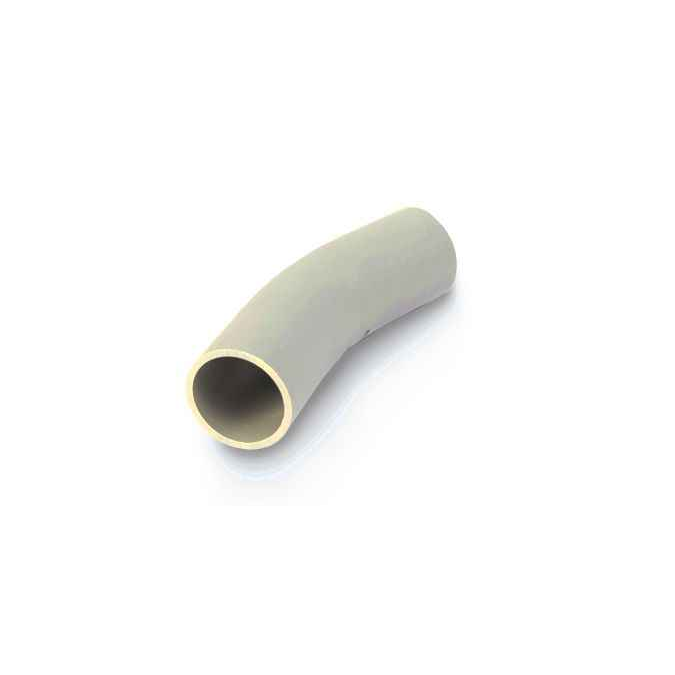

Kraloy 4" Schedule 40 PVC Standard Elbow 22.5 Degree SPxSP Connection
Professional Grade PVC Conduit Fitting for Versatile Applications
The Kraloy 4" Schedule 40 PVC Standard Elbow delivers reliable conduit routing with a precise 22.5 degree angle and SPxSP connection design. Constructed from impact-resistant Schedule 40 rigid nonmetallic PVC material, this professional-grade elbow fitting features plain ends for seamless integration with nonmetallic solvent weld fittings. Approved for exposed, concrete encased, and direct burial applications, this versatile fitting provides dependable performance across diverse installation environments.
Professional Features & Benefits
- 4" Diameter: Accommodates larger cable bundles and provides ample space for wire pulling in commercial and industrial applications
- 22.5 Degree Angle: Enables precise conduit routing with gradual directional changes that minimize cable stress and installation complexity
- Schedule 40 PVC Construction: Delivers impact resistance and durability for long-term performance in demanding environments
- SPxSP Connection Type: Plain end design ensures secure, leak-resistant joints when used with appropriate solvent weld fittings
- Multi-Environment Approval: Certified for exposed, concrete encased, and direct burial installations providing maximum application flexibility
- UL 651 Listed: Meets rigorous safety and performance standards for electrical conduit systems
Technical Specifications
- Angle: 22 1/2D
- Connection Type: SPxSP
- Country Of Origin: Canada
- Dimensional Standard: SCH40
- Product Diameter: 4"
- Product Material: PVC
- Product Type: STD ELBOW
Professional Applications
- Car Washes and Food Processing Plants requiring corrosion-resistant conduit systems
- Steel Mills and Mines demanding impact-resistant electrical infrastructure
- Utilities and Water/Sewage Treatment Plants needing reliable underground installations
- Residential and Commercial Buildings requiring versatile conduit routing solutions
- Transportation Infrastructure including Bridges, Tunnels, Subways, and Airports
- Marine Environments such as Marinas requiring moisture-resistant electrical systems
- Agricultural and Communications installations demanding durable outdoor performance
Why Choose Kraloy Quality?
Kraloy delivers professional-grade conduit fittings engineered for reliability across diverse applications. This Schedule 40 PVC elbow meets UL 651 standards and NAFTA certification requirements, ensuring consistent performance in exposed, concrete encased, and direct burial installations. The impact-resistant PVC construction and precision manufacturing provide long-term durability for demanding electrical infrastructure projects.
Manufacturer Resources
Product Specs
- Angle:
- 22 1/2D
- Connection Type:
- SPxSP
- Dimensional Standard:
- SCH40
- Product Diameter:
- 4"
- Product Material:
- PVC
- Product Type:
- PVC Elbow
- Department:
- Electrical
- Product Subgroup:
- PVC Conduit & Fittings
- Product Group:
- Conduit & Raceway
Kraloy 78585 – Frequently Asked Questions
1) Will a Kraloy 4 inch 22.5 degree PVC elbow glue directly into standard Schedule 40 conduit?
Yes. The Kraloy 4 inch standard elbow is built to the SCH40 dimensional standard in PVC with SPxSP (plain end by plain end) ends, so both ends slip into the bells or couplings of 4 inch Schedule 40 PVC conduit and solvent weld the same way a length of pipe would. Because both ends are plain, you need a bell end, coupling, or belled conduit on each side to make the joint.
2) Can this 4 inch PVC elbow be direct buried or encased in concrete?
Yes on both. The Kraloy 4 inch Schedule 40 PVC elbow is approved for exposed, concrete encased, and direct burial installations, which covers duct banks, under-slab runs, and trenched service laterals as well as surface-mounted work.
3) When should I use a 22.5 degree elbow instead of a 45 or 90?
A 22.5 degree elbow makes a shallow change of direction, useful for easing a duct bank around an obstruction, stepping a run down into a trench, or splitting a 45 into two gentler bends to reduce pulling tension. For a square corner into a pull box or up a wall you want a 90; for a standard offset a 45 is quicker. Note that each 22.5 degree bend still counts toward the total degrees of bend allowed between pull points.
4) Do I need solvent cement, or does this elbow just push on?
It is a solvent weld fitting. The plain SPxSP ends are made for PVC conduit cement into a bell or coupling; there is no gasket or thread. Buy the cement separately, it is not included with the elbow.
5) Will PVC conduit fittings hold up in a wash-down or corrosive plant environment?
That is where PVC does well. The Kraloy 4 inch elbow is impact-resistant Schedule 40 PVC, and the material is used in car washes, food processing plants, water and sewage treatment, marinas, and agricultural work, where steel conduit would corrode. For mechanical abuse in high-traffic industrial areas, protect the run or use metallic conduit instead.
