Metallics JPMP21 6-32 x 2-1/2 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.36
$0.36

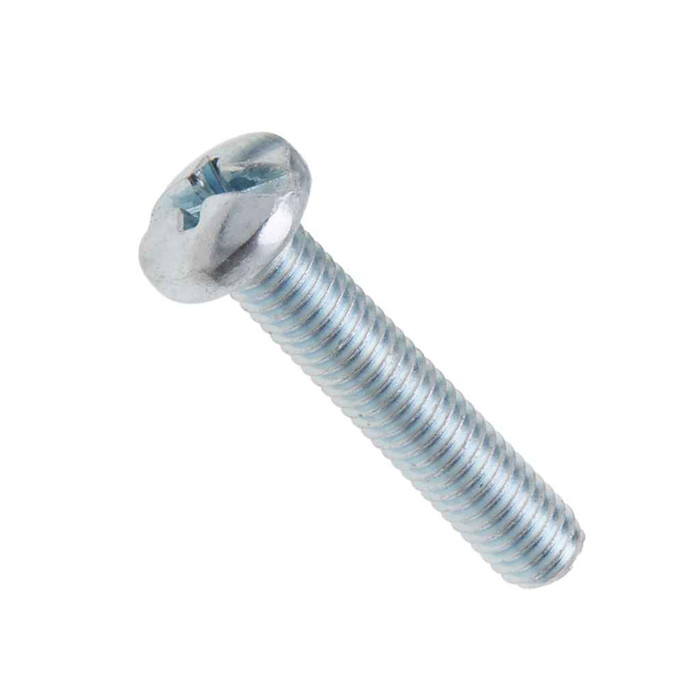

Metallics JPMP21 6-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP21 6-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP21
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.36
$0.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Pan head with Phillips Drive
    • Steel Zinc Material
    • 6-32 Diameter, 2-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
2/1/02
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.159
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
0.83 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.055 - 0.080
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP21 – Frequently Asked Questions

1) Will a 6-32 x 2-1/2 in. machine screw thread into a standard electrical device box or plaster ring?
Yes. The Metallics JPMP21 is a 6-32 thread with 32 threads per inch, which is the standard machine screw thread used for device mounting in outlet boxes, plaster rings, and switch/receptacle straps. At 2-1/2 inches long it is the extra-length option for reaching back through deep mud rings, stacked rings, or thick wall build-ups where a stock 1-inch device screw runs out of reach.
2) How many screws come in a jar of Metallics JPMP21?
These ship in a jar of 100 pieces, and 100 is the order minimum. The jar weighs 0.83 lbs. If you need a different count or length, Metallics offers other sizes and quantities by request.
3) Are these machine screws made to a recognized dimensional standard?
The JPMP21 is manufactured to ASME B18.6.3-2010, the standard covering machine screw head and thread dimensions, so the head geometry and 6-32 thread interchange with any other screw built to that spec. Material is low carbon steel per AISI 1006 - 1022.
4) Can I use zinc plated machine screws outdoors or in a damp location?
Zinc plating on carbon steel is a mild corrosion barrier intended for dry indoor service. In wet, exterior, or washdown locations the plating will eventually give up and the steel underneath rusts. For those spots specify a stainless machine screw in the same 6-32 x 2-1/2 size.
5) Is the JPMP21 a machine screw or a self tapping sheet metal screw?
It is a machine screw, part of the Metallics PMP series. The 6-32 thread runs the full length with a blunt end, so it needs an existing tapped hole or a nut. It will not drill or form its own thread in sheet metal the way a self tapping screw does.
6) What is the tensile strength and hardness of these zinc plated steel screws?
Minimum tensile strength is 60,000 psi, with hardness in the Rockwell B70 to B100 range. That is standard low carbon steel machine screw strength, fine for device mounting, panel work, and enclosure hardware, not a substitute for a graded structural bolt.
7) Do these screws meet Buy American or ARRA requirements for a public project?
The JPMP21 is flagged both ARRA compliant and Buy American compliant in the manufacturer's data, with country of origin listed as multiple. That matters on federally funded institutional and municipal work where fastener documentation gets reviewed.
