Metallics JPMP22 8-32 x 2-1/2 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.43
$0.43

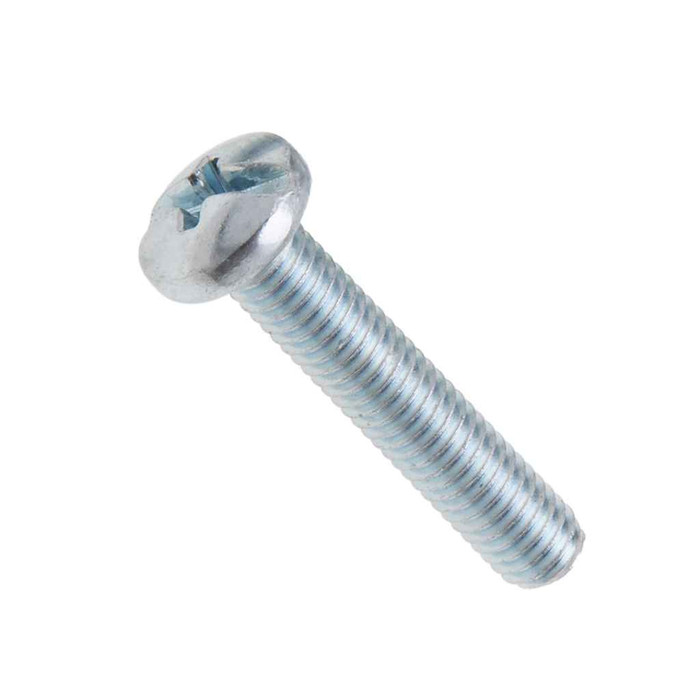

Metallics JPMP22 8-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP22 8-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP22
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.43
$0.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 2-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • 8-32 Diameter, 2-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.105 - 0.115 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
2/1/02
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.175
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.22 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.071 - 0.097
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP22 – Frequently Asked Questions

1) Will the Metallics JPMP22 machine screw thread into a standard electrical box or device ear?
The JPMP22 is an 8-32 machine screw, 32 threads per inch, which is the thread that standard steel electrical boxes, device yokes and plaster ring tapped holes use. At 2-1/2 inches long it is the extension length you reach for when a device has to reach back through a deep mud ring or stacked extension rings rather than sit flush.
2) Are these zinc plated steel screws suitable for outdoor or damp locations?
Material is zinc plated steel, made from AISI 1006 to 1022 low carbon steel. Zinc plating is for dry interior work, inside panels, device boxes and enclosures. For wet, exterior or corrosive locations, specify a stainless machine screw instead, since zinc plating will eventually rust through in standing moisture.
3) Do these Metallics machine screws meet Buy American and ARRA requirements for a public job?
The PMP series 8-32 pan head screws are flagged compliant for both Buy American and ARRA, which is what a government, school or transit procurement file usually needs on fastener line items.
4) What size Phillips driver do I need for these 8-32 pan head screws?
A #2 Phillips. The recess on the Metallics PMP pan head screw is 0.175 inch diameter with a gaging depth of 0.071 to 0.097 inch, so a #2 bit seats properly and a #1 will cam out.
5) How much room does the pan head take up under a cover plate?
Head height runs 0.105 to 0.115 inch with a head width of 0.306 to 0.322 inch. That is a low, broad bearing surface, so it sits close to the device strap and clears most flat cover plates without the head bottoming the plate out.
6) How many Metallics JPMP22 screws come in a jar, and can I buy just a few?
They ship as a 100-count jar, and 100 is the order minimum. If you only need a handful for one device, you are still buying the jar, which is usually the right call for a service truck or an MRO shelf stock of 8-32 hardware.
7) What dimensional standard do these 8-32 pan head Phillips screws conform to?
Dimensions follow ASME B18.6.3-2010, the standard for inch series machine screws, so head and recess geometry interchanges with any other B18.6.3 8-32 pan head. Handy when a submittal calls out a standard rather than a brand.
8) How strong are these screws, and can I torque them down hard?
Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70 to B100. That is ordinary low carbon steel machine screw strength, fine for mounting devices, covers, straps and enclosure hardware. It is not a structural or grade 5 fastener, so do not substitute it where a high strength bolt is specified.
9) Can I use these 2-1/2 inch machine screws in a tapped hole or do I need a nut?
Machine screws like the JPMP22 have a uniform 8-32 machine thread, so they drive into a pre tapped hole or take a matching 8-32 nut. They do not form their own thread in sheet metal or wood the way a self tapping or wood screw does, so the hole has to be tapped or the nut supplied separately.
