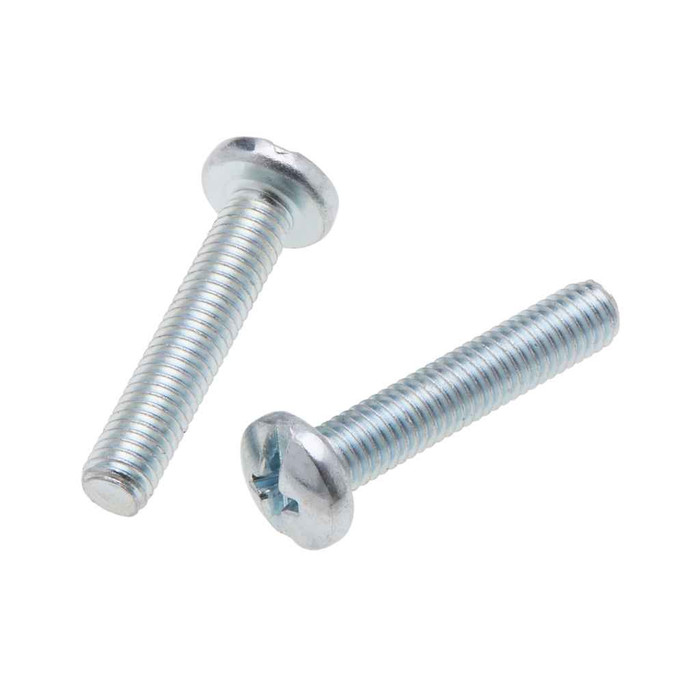

Metallics JPMP88 8-32 x 1-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP88 8-32 x 1-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP88
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.30
$0.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 1-1/2 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • 8-32 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.105 - 0.115 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.175
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
0.862 lbs
Product Width:
3.5 in
Recess Penetration Gaging Depth:
0.071 - 0.097
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP88 – Frequently Asked Questions

1) Is the zinc plating on these screws good enough for a damp or outdoor location?
These are zinc plated carbon steel, which is a dry-interior finish. Zinc plating resists handling corrosion and incidental moisture, but in wet locations, exterior boxes, coastal air, or anywhere washdown happens, a stainless machine screw is the right call instead.
2) Are Metallics JPMP88 screws Buy American or ARRA compliant for a government job?
No. The JPMP88 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic sourcing requirement, these will not satisfy it.
3) How many Metallics JPMP88 screws come in a jar?
They ship in a jar of 100, and 100 is the order minimum. That is a count a service van or an MRO crib can standardize on rather than counting out loose screws per job.
4) What driver bit do I need for these Phillips machine screws?
A #2 Phillips bit. The recess is 0.175 inch in diameter with a gaging depth of 0.071 to 0.097 inch, so a #1 will cam out and a #3 will not seat. Standard #2 bit in a drill/driver or a screwdriver is all that is required.
5) Do these screws meet a dimensional standard so the heads interchange with what I already have?
They are made to ASME B18.6.3-2010, the standard for inch-series machine screw dimensions, so head geometry is interchangeable with any other B18.6.3 pan head 8-32. Head width runs 0.306 to 0.322 inch and head height 0.105 to 0.115 inch.
6) How strong are these 8-32 machine screws?
Minimum tensile strength is 60,000 psi, with hardness in the Rockwell B70 to B100 range, from AISI 1006 to 1022 low carbon steel. That is standard-grade carbon steel machine screw strength, fine for mounting devices, straps, covers, and light brackets, not a substitute for a graded cap screw on a structural or high-load connection.
7) Do these machine screws come with nuts or washers?
No, the JPMP88 is screws only, 100 to the jar. If you are through-bolting rather than threading into an existing tapped hole, order 8-32 machine screw nuts and any flat or lock washers separately.
8) Can I use these on plumbing and HVAC work too, or are they only for electrical?
The JPMP88 is spec'd for the electrical, plumbing, heating and air conditioning trades. A machine screw does not care what trade it is in, it cares about mating with a tapped 8-32 hole, so any sheet metal strap, panel, or equipment with 8-32 threads is fair game.
9) What does the jar of 100 weigh for shipping or stock planning?
0.862 lbs for the jar, which measures 3.5 in. wide by 3.5 in. long by 5.75 in. high. Light enough to keep several sizes on the truck.
