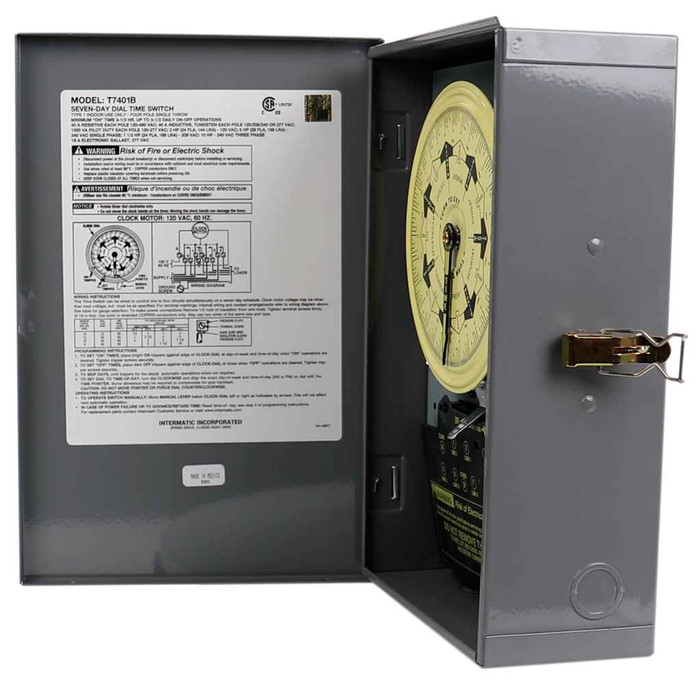

Intermatic 7-Day Mechanical Time Switch 120V 4-SPST Indoor Metal Enclosure with 3.5 Hour Interval Control
Professional 7-Day Load Control with Reliable Mechanical Operation
The Intermatic 7-Day Mechanical Time Switch delivers precise scheduling control for indoor lighting and timing applications with 120 VAC, 60Hz operation. This professional-grade time switch features 4-SPST switching capability in a durable Type 1 rated indoor metal enclosure with gray finish, providing reliable load control with minimum 3.5 hour ON/OFF intervals and separate grounding terminal for enhanced safety.
Professional Features & Benefits
- True 7-Day Programming: Different ON/OFF schedules for each day of the week provide maximum flexibility for varied operational requirements.
- 16-Hour Power Failure Carry-Over: Automatic rewind capability maintains preset schedules during power outages, ensuring continuous operation without reprogramming.
- 4-SPST Switching Configuration: Multiple switching circuits enable control of various loads with precise timing intervals for comprehensive load management.
- Type 1 Indoor Metal Enclosure: Durable gray finish metal housing with separate grounding terminal provides reliable protection and professional installation appearance.
- Separate Clock Motor Terminals: Independent terminals for switching loads not on line voltage offer enhanced installation flexibility and safety.
- 3.5 Hour Minimum Interval: Precise timing control with minimum ON/OFF periods ensures proper load cycling and energy management.
Technical Specifications
- Applications: Indoor Lighting Control;Timing/Scheduling ON/OFF
- Country Of Origin: Mexico
- Depth: 3.75 in
- Input Voltage Rating Range S : 120 VAC, 60 Hz
- Marketing Description: These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each d
- Product Color: Gray
- Product Height: 13.125 in
- Product Length: NA NA
- Product Weight: NA lbs
- Product Width: 9 in
- Warranty Period: 1-Year limited
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Indoor Lighting Control Systems
- Commercial Building Automation
- Retail Store Lighting Management
- Office Building Load Scheduling
- Industrial Facility Timing Control
- Multi-Unit Property Management
- Energy Management Systems
Why Choose Intermatic Quality?
Intermatic delivers proven reliability with this mechanical time switch featuring a 1-year limited warranty and Type 1 rated indoor metal enclosure construction. The durable gray finish and separate grounding terminal ensure professional installation standards while the 16-hour carry-over capability provides dependable operation during power interruptions.
