Metallics JFWPB09 8 x 1-3/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

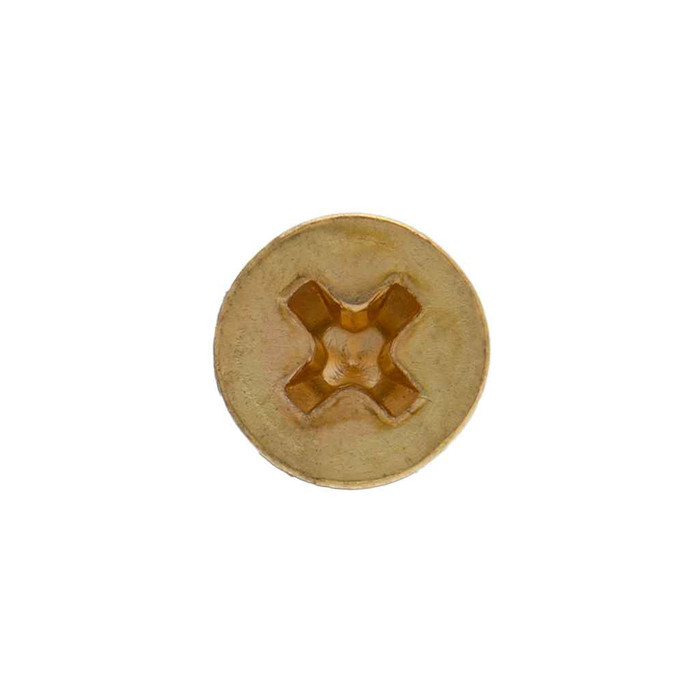

Metallics JFWPB09 8 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB09 8 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB09
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1-3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Flat Head with Phillips Drive
    • 8 Diameter, 1-3/4" Length
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
1/3/04
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.113 - 0.136
Phillips Recess Diameter:
0.191 - 0.204
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.52 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB09 – Frequently Asked Questions

1) How many Metallics JFWPB09 brass wood screws come in a pack?
The JFWPB09 ships in a jar of 100, and 100 count is the minimum order quantity. So a single order line gets you the full jar, not a loose screw.
2) What driver bit do I need for these #8 Phillips flat head brass wood screws?
A #2 Phillips bit. The recess is cut to 0.191 to 0.204 inch diameter with a depth of 0.113 to 0.136 inch, so a #2 seats fully; a #1 will cam out and chew up soft brass heads fast.
3) Why use brass wood screws instead of steel for hardware and trim work?
Brass is the choice where the screw is visible or where you want to avoid rust staining on finished wood, which is why these show up on hinges, strike plates, decorative hardware, escutcheons and marine or exterior trim. Brass is softer than steel, so drill a pilot hole and drive it slowly. If the fastener is carrying structural load, use a steel screw instead.
4) Do Metallics JFWPB09 screws meet a recognized dimensional standard for submittals?
Yes. Head, thread and recess dimensions conform to ASME B18.6.1, with the thread form called out to ASME B18.6.1-1997. Thread count is 15 per inch for the #8 diameter. That is the spec line to put on a submittal or a government job sheet.
5) Are these brass wood screws acceptable on a Buy American or ARRA funded project?
The JFWPB09 is flagged compliant for both ARRA and Buy American, with country of origin China. On federally funded work the compliance flag is what your specifier reviews, so pass both values along with the submittal.
6) What size pilot hole should I drill for a #8 wood screw in hardwood?
Match the pilot to the thread root, not the outside diameter. For a #8 screw with 15 threads per inch, a 7/64 inch pilot in hardwood and 3/32 inch in softwood is standard practice, plus a clearance hole through the top piece for the unthreaded upper third of the 1-3/4 inch shank. Brass heads snap if you overdrive them into an undersized hole.
7) Can I get this brass flat head Phillips wood screw in other lengths or larger quantities?
Yes, the JFWPB series runs other diameters, lengths and pack quantities on request. The JFWPB09 itself is the 8 x 1-3/4 inch brass flat head Phillips in a 100 count jar.
