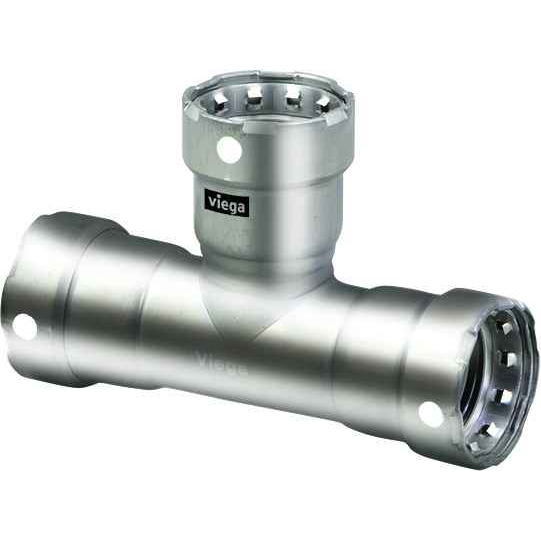

95115 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1'' x 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1'' x 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.26"
- Product Height:
- 1.78"
- Product Weight:
- 1.005 lbs
- Product Width:
- 3.48"
- Product Material:
- 304 stainless steel
Viega 95115 – Frequently Asked Questions
1) Is the Viega 95115 MegaPress tee a full 1 inch on all three outlets?
Yes, the 95115 is a straight 1 inch x 1 inch x 1 inch tee, so run and branch are the same size. All three ends are press connections (P1 x P2 x P3), so no reducing coupling or bushing is needed if your run and branch are both 1 inch.
2) How much room do I need to fit a 1 inch MegaPress tee in a tight ceiling or chase?
Plan around the fitting envelope: 5.26 inches long, 3.48 inches wide, 1.78 inches high. On top of that you need clearance for the press jaw or ring to wrap each of the three sockets and swing, so a pocket sized only to the fitting itself will not let you make the presses.
3) Do I need to thread or weld anything to install the Viega 95115 tee?
No. All three ends on the 95115 are press ends, so it goes on with a press tool and the correct 1 inch jaw or ring, no threading, grooving, or hot work. That is the reason it gets specified in occupied buildings where a welding permit or hot work watch would otherwise be required.
4) What material is the Viega 95115 MegaPress tee, and does that matter for the pipe I'm pressing onto?
The 95115 is made of 304 stainless steel. Stainless bodies are the ones specified where carbon steel fittings would be a corrosion concern, and the stainless body is also what mixed-metal jobs get specified around. The body material is 304 stainless throughout, not plated carbon.
5) What does Smart Connect on the Viega 95115 tee actually do for me on an install?
Smart Connect is the feature that leaves an intentional leak path at an unpressed connection, so an unpressed joint weeps visibly during pressure test instead of passing inspection and failing later. On a tee like the 95115 that is three separate presses to make, which is exactly where one gets missed, so it is worth pressure testing before you close up a ceiling.
6) What part number do I order for a 1 inch Viega MegaPress stainless tee?
Order Viega MegaPress part number 95115 for the 1 inch x 1 inch x 1 inch stainless tee. That single MPN covers the fitting; there is no separate finish or option to specify.
7) How much does a 1 inch MegaPress stainless tee weigh for takeoff and hanger spacing?
One 95115 tee weighs 1.005 lbs. Light enough that a single fitting is not driving your support layout, but worth counting on large manifold or header assemblies where you are stacking several tees between hangers.
8) Where is the Viega 95115 MegaPress tee manufactured?
The 95115 is made in Germany. That matters on public and institutional jobs where country of origin has to be documented in the submittal package.
