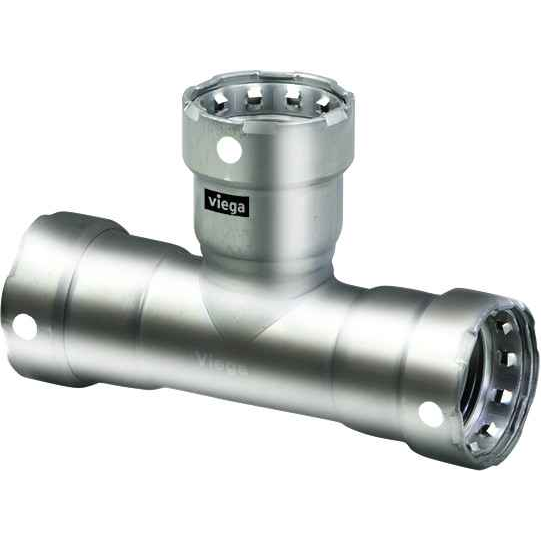

95140 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1'' x 1'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1'' x 1'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.26"
- Product Height:
- 1.78"
- Product Weight:
- 0.899 lbs
- Product Width:
- 3.287"
- Product Material:
- 304 stainless steel
Viega 95140 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 95140 tee connect?
The MegaPress 95140 is a reducing tee sized 1 inch x 1 inch x 3/4 inch, so the run is 1 inch on both ends and the branch presses onto 3/4 inch pipe. All three ends are press connections (P1 x P2 x P3), no threading or welding.
2) Is the Viega 95140 MegaPress tee stainless or carbon steel?
It's 304 stainless steel, body and all three press ends. That matters when you're deciding between MegaPress carbon steel fittings and the stainless line: pick stainless where the pipe or the service calls for corrosion resistance.
3) What does Smart Connect technology on the Viega 95140 tee actually do for the installer?
Smart Connect is Viega's feature that lets an unpressed connection leak intentionally during pressure testing, so you can find a joint you missed before the system is buttoned up. On a three-end reducing tee like the 95140 that's three separate presses to track, which is exactly where one gets skipped.
4) How much clearance do I need to install the Viega 95140 MegaPress tee in a tight chase?
The fitting itself measures 5.26 inches long, 3.287 inches wide and 1.78 inches high, and weighs 0.899 lbs. Add room for the press tool jaw or ring to seat square on each of the three ends, which is usually what decides whether a chase or joist bay works, not the fitting body.
5) Should I use a reducing tee like the Viega 95140 or a full-size tee with a reducer bushing?
A 1 x 1 x 3/4 reducing tee gives you the 3/4 inch branch in a single press, so there are three joints instead of four and no extra bushing to source. Use a full-size 1 x 1 x 1 tee only if the branch is actually 1 inch pipe, or if you need the branch left at full size for a later tie-in.
6) What is the Viega part number and where is the 95140 MegaPress tee made?
Order it as Viega MegaPress model 95140. It's manufactured in Germany.
