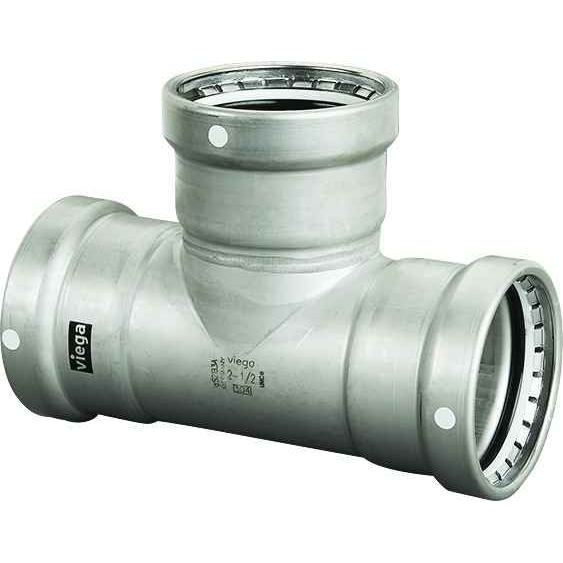

95600 Viega MegaPress tee Smart Connect technology 304 stainless steel, 4'' x 4'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 10.079"
- Product Height:
- 5.193"
- Product Weight:
- 5.627 lbs
- Product Width:
- 7.433"
- Product Material:
- 304 stainless steel
Viega 95600 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 95600 tee connect?
It's a reducing tee sized 4 inch x 4 inch x 1-1/2 inch: the run is 4 inch on both ends and the branch takes 1-1/2 inch. All three ends are press connections (P1 x P2 x P3), so no threading or welding on any outlet.
2) Is the Viega 95600 MegaPress tee stainless or carbon steel?
304 stainless steel. That matters when you're choosing between MegaPress for black iron and a stainless body, because the fitting material sets what pipe and service you can put it on. Model number is 95600.
3) I need a 4 inch main with a smaller branch takeoff. Is this tee the right part, or do I need a full-size tee plus a reducer?
The 95600 handles it in one fitting. The branch is already reduced to 1-1/2 inch while the run stays 4 inch, so you press directly onto the 1-1/2 inch branch pipe without stacking a 4 inch tee and a bushing or reducer. If you need a different branch size, you need a different tee, not an adapter on this one.
4) How much space do I need to fit a 4 inch MegaPress tee in a tight mechanical room?
The fitting itself measures 10.079 inches long, 7.433 inches wide and 5.193 inches high. Lay that out plus clearance for the press jaw and actuator around each of the three joints before you commit to the location.
5) Does the Viega 95600 tee have the Smart Connect feature on all three ports?
Yes. The 95600 is a MegaPress tee with Smart Connect technology, which leaks visibly at an unpressed joint during testing so you can find the connection you missed. It applies to the press ends on the fitting, all three of which are press (P1 x P2 x P3).
6) Do I need a special tool for the 4 inch ends on this MegaPress tee?
Press connections of this size are made with a press tool and the matching jaw or actuator ring for each diameter. On the 95600 you need tooling for 4 inch on the two run ends and for 1-1/2 inch on the branch, so plan on two jaw sizes for a single fitting.
7) Where is the Viega MegaPress 95600 made?
Made in Germany. If you're submitting on a job with country-of-origin documentation requirements, that's the origin on record for this tee.
