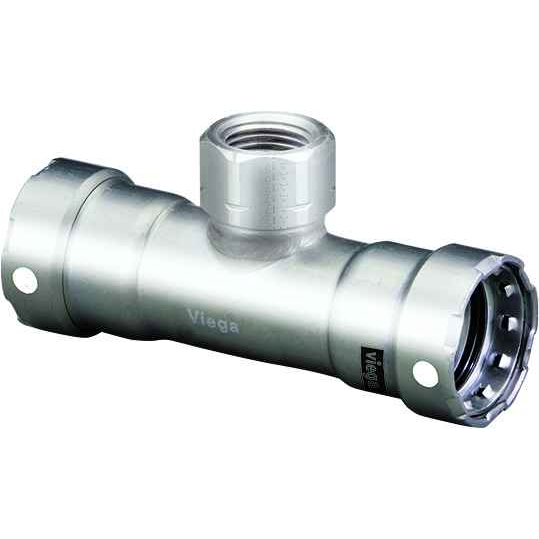

95195 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1'' x 1'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1'' x 1'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.26"
- Product Height:
- 1.78"
- Product Weight:
- 0.886 lbs
- Product Width:
- 2.618"
- Product Material:
- 304 stainless steel
Viega 95195 – Frequently Asked Questions
1) What are the three outlets on the Viega 95195 MegaPress tee?
Two press ends and one threaded branch. The connection configuration is P1 x P2 x FPT, so the 1 inch run ends are MegaPress press connections and the 3/4 inch branch is female pipe thread. Overall size is 1 inch x 1 inch x 3/4 inch, which lets you press into a 1 inch carbon steel line and pick up a 3/4 inch threaded drop, gauge, or valve without any transition fitting.
2) Can I thread a 3/4 inch nipple or valve straight into the branch of the Viega 95195?
Yes. The branch is a 3/4 inch FPT female thread, so a 3/4 inch male NPT nipple, valve, gauge adapter or sensor well threads directly in with the appropriate thread sealant. No press tool is needed on that leg.
3) Is the Viega 95195 MegaPress tee carbon steel or stainless?
The fitting body is 304 stainless steel. MegaPress fittings press onto black iron and carbon steel pipe, so a stainless body on the fitting is normal even where the pipe itself is carbon steel. It is made in Germany.
4) How much room do I need to fit a 1 inch x 1 inch x 3/4 inch MegaPress tee in a tight chase?
Plan on roughly 5.26 inches of length, 2.618 inches of width and 1.78 inches of height for the fitting itself, plus clearance behind it for the press jaw to swing. In a joist bay or a packed mechanical chase the jaw envelope, not the fitting, is usually what stops you.
5) I need to order the right MegaPress tee for a 1 inch line with a 3/4 inch threaded takeoff. What part number is that?
Viega part number 95195. It is the MegaPress tee in 1 inch x 1 inch x 3/4 inch with two press ends and a 3/4 inch female threaded branch, 304 stainless steel body.
6) What is Smart Connect on this Viega MegaPress tee and why does it matter on the job?
Smart Connect is a feature of the sealing element that lets an unpressed connection leak visibly during pressure testing, so a joint you missed shows itself before the system is put into service. On a tee like the 95195 that matters because you are making two press joints plus a threaded branch, and the threaded branch is the one most likely to distract you from the second press.
