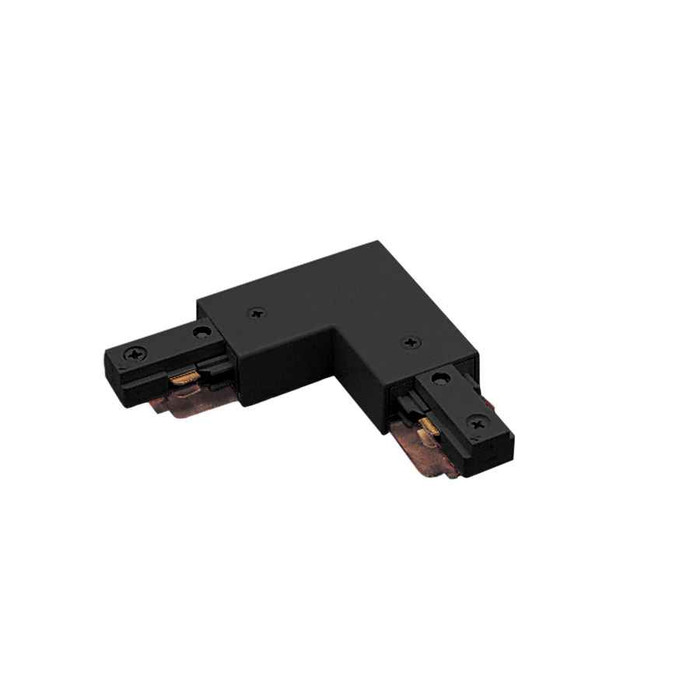

WAC Lighting J Track 2-Circuit Right L Connector Track Component
120V Track systems are modular and can be designed for multiple applications in nearly any interior environment. J2 Track is a two circuit track system that can control lighting fixtures separately through two switches. Any "J" style fixture can work on a J2 track system. L-Connectors are used to join two pieces of track together with power continuity to form a 90 Degree angle. L-connectors are power feedable when aligned beneath a junction box. L-connectors are offered in right and left versions - it is important to select the correct L-connector for track polarity. A great rule of thumb is to walk underneath where the track would be installed. If you have to make a left turn, thats a Left L-connector, if you have to make a right turn, thats a Right L-connector.
- L-connectors are offered in right and left versions - it is important to select the correct L-connector for track polarity. A great rule of thumb is to walk underneath where the track would be installed. If you have to make a left turn, thats a Left L-connector, if you have to make a right turn, thats a Right L-connector.
- L-Connectors are used to join two pieces of track together with power continuity to form a 90 Degree angle. L-connectors are power feedable when aligned beneath a junction box.
- J2 Track is a two circuit track system that can control lighting fixtures separately through two switches. Any "J" style fixture can work on a J2 track system.
- Two Circuit 120V track, power per Circuit: 120V, 1920W max per circuit, Operating Current: Rated 20A max per circuit.
- Compatible with J2 track systems and J style fixtures by WAC Lighting. Also compatible with J2 systems and J style fixtures from other leading lighting manufacturers.
- Standards: UL & cUL Listed for Dry Locations.
- ADA Compliant:
- No
- Backplate Depth:
- 4.25"
- Backplate Height:
- 1"
- Backplate Width:
- 4.25"
- Brand:
- WAC Lighting
- Category:
- Track Lighting
- Collection:
- J 2-Circuit Track
- Complete System:
- No
- Energy Star:
- No
- Finish:
- Black
- Hardwired or Portable:
- Hardwired
- Height:
- 1"
- Length:
- 4.25"
- Location Rating:
- Dry
- Product Type:
- Track Component
- Safety Rating:
- UL, cUL
- Style:
- Functional
- Subcategory:
- Track Connector
- Voltage:
- 120
- Weight:
- 0.3
- Width:
- 4.25"
- Base Material:
- Aluminum
- Location Indoor/ Outdoor:
- Interior
- Max Height:
- 1"
- Reversible Mounting:
- No
- Title 24 Compliant:
- No
