WAC Lighting J Track Right L Connector Track Component

WAC Lighting J Track Right L Connector Track Component

(No reviews yet) Write a Review

Model: WAC-JL-RIGHT
From the J Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting J2 Track Two Circuit 120V Track Components

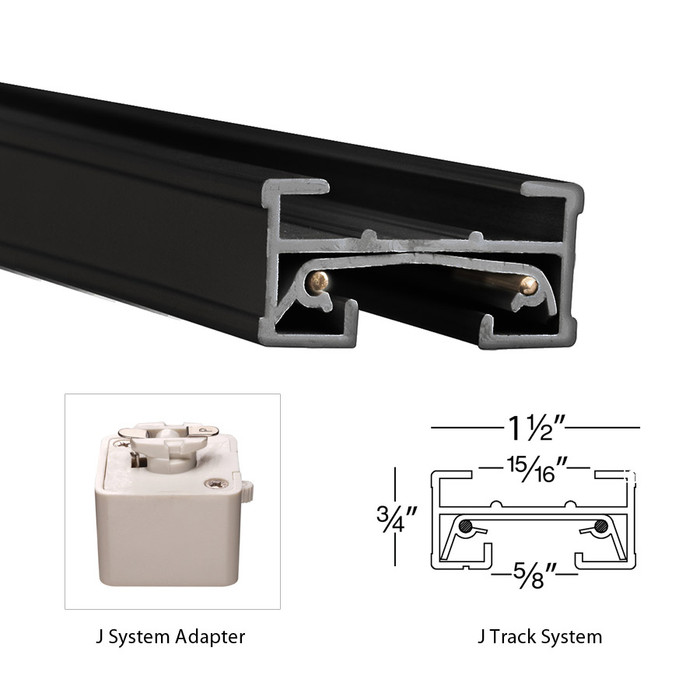

120V Track systems are modular and can be designed for multiple applications in nearly any interior environment. J2 Track is a two circuit track system that can control lighting fixtures separately through two switches. Any "J" style fixture can work on a J2 track system. Versatile yet sturdy, track systems can be surface mounted or suspended from ceilings, enabling the lighting design to adapt to changing styles and spaces. Track may be field cut to size and combine power connectors, accessories, and suspension options to build a complete system.
  • Die cast aluminum construction.
  • May be field cut and can easily installed on a variety of surfaces. Available in 4Ft and 8Ft sizes.
  • J2 Track is a two circuit track system that can control lighting fixtures separately through two switches. Any "J" style fixture can work on a J2 track system.
  • Two Circuit 120V track, power per Circuit: 120V, 1920W max per circuit, Operating Current: Rated 20A max per circuit.
  • Compatible with J2 track systems and J style fixtures by WAC Lighting. Also compatible with J2 systems and J style fixtures from other leading lighting manufacturers.
  • Standards: UL & cUL Listed for Dry Locations.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
4.25"
Backplate Height:
0.75"
Backplate Width:
4.25"
Collection:
J Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
0.75"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1314
Product Voltage:
120
Product Length:
4.25"
Product Style:
Functional
Product Height:
0.75"
Product Category:
Track Lighting
Product Width:
4.25"
Department:
Electrical

WAC Lighting WAC-JL-RIGHT – Frequently Asked Questions

1) Will the WAC JL-RIGHT L connector work on single circuit J track, or only two circuit J2 track?
The JL-RIGHT L connector is part of WAC Lighting's two circuit J2 120V track system, so it belongs on J2 track runs. The J2 system carries two circuits so fixtures can be switched separately, and any "J" style fixture will run on it. WAC also states J2 track and J style fixtures from other leading lighting manufacturers are compatible. If your run is a single circuit system, this is not the connector for it.
2) Does the direction of the WAC J track L connector matter when I turn a corner?
Yes. This is the right-hand L connector, so it turns the run one specific way. Orientation is fixed, and the part is not reversible mounting, so you cannot flip it to make a left turn. Lay out your corner first and order the hand that matches the direction the track needs to go.
3) Can I use this WAC J track connector in a bathroom, covered patio, or parking garage?
No. The J track components are UL and cUL Listed for dry locations only and are specified for interior use. For a damp or wet location, including covered exterior soffits and open garages, you need a fixture and raceway rated for that location instead.
4) Does the WAC JL-RIGHT connector feed power into the track, or do I still need a power connector?
The L connector joins two track sections at a corner and carries the circuits through; it is not a complete system and does not bring supply into the run. You still need a power feed connector, plus the track sections themselves and any suspension hardware. The system is hardwired, not plug-in.
5) How much electrical load can a WAC J2 two circuit track run carry?
Each circuit on the J2 120V system is rated 1920W max and 20A max, with two circuits available. That is what sizes your fixture count per switch leg on a run using this L connector.
6) How much ceiling space does the WAC JL-RIGHT corner connector take up?
The connector measures 4.25 inches in length and 4.25 inches in width with a 0.75 inch height, matching the track profile. Allow 4-1/4 inches of corner clearance in each direction from the turn point when you mark out the run.
7) What finishes does the WAC JL-RIGHT L connector come in so it matches my existing track?
Three finishes: black (JL-RIGHT-BK), brushed nickel (JL-RIGHT-BN), and white (JL-RIGHT-WT). Match the connector to the track sections already on the ceiling, since the connector sits in plain view at the corner.
8) Can WAC J2 track be surface mounted on drywall or does it have to be suspended?
Either. J2 track mounts directly to a variety of surfaces including ceilings, or it can be suspended with the appropriate suspension kit. Track also comes in 4 ft and 8 ft lengths and may be field cut, so you can trim the leg running into the corner connector to the exact dimension.
9) Is the WAC J track L connector metal or plastic?
Die cast aluminum, same as the J2 track extrusions, so the corner holds alignment under fixture load rather than flexing like a molded plastic joiner.
10) Does a WAC J2 track system meet California Title 24 for a commercial lighting job?
The J2 track components are not Title 24 compliant and are not Energy Star rated. If your project is enforcing Title 24, verify the controls and fixture package with your electrical engineer before committing to this raceway.
